Javad TRIUMPH-1 Configuration Example page 2

UHF B & R
ASE OVER
C E
ONFIGURATION XAMPLE
Please do not forget to attach the UHF/GSM antenna to TRIUMPH-1.
Attaching UHF/GSM Antenna
A broadband, rugged, in-building or outdoor antenna designed to service the whole 406-470 MHz
UHF band and GSM quad band. With modest dimensions of 25 mm (OD) x 182 mm (height), this
antenna radiates with a typical peak omnidirectional gain of +1 dBi. Internally, the radiating
element is DC shunted to help protect the transceiver from nearby, but not direct ElectroStatic
Discharge (ESD).
The TRIUMPH-1 modem antenna can be mounted on standard poles (5/8-11inches thread).
Attached to the TRIUMPH-1 receiver this antenna gets a part of survey pole, making handling
with receiver easy and simple.

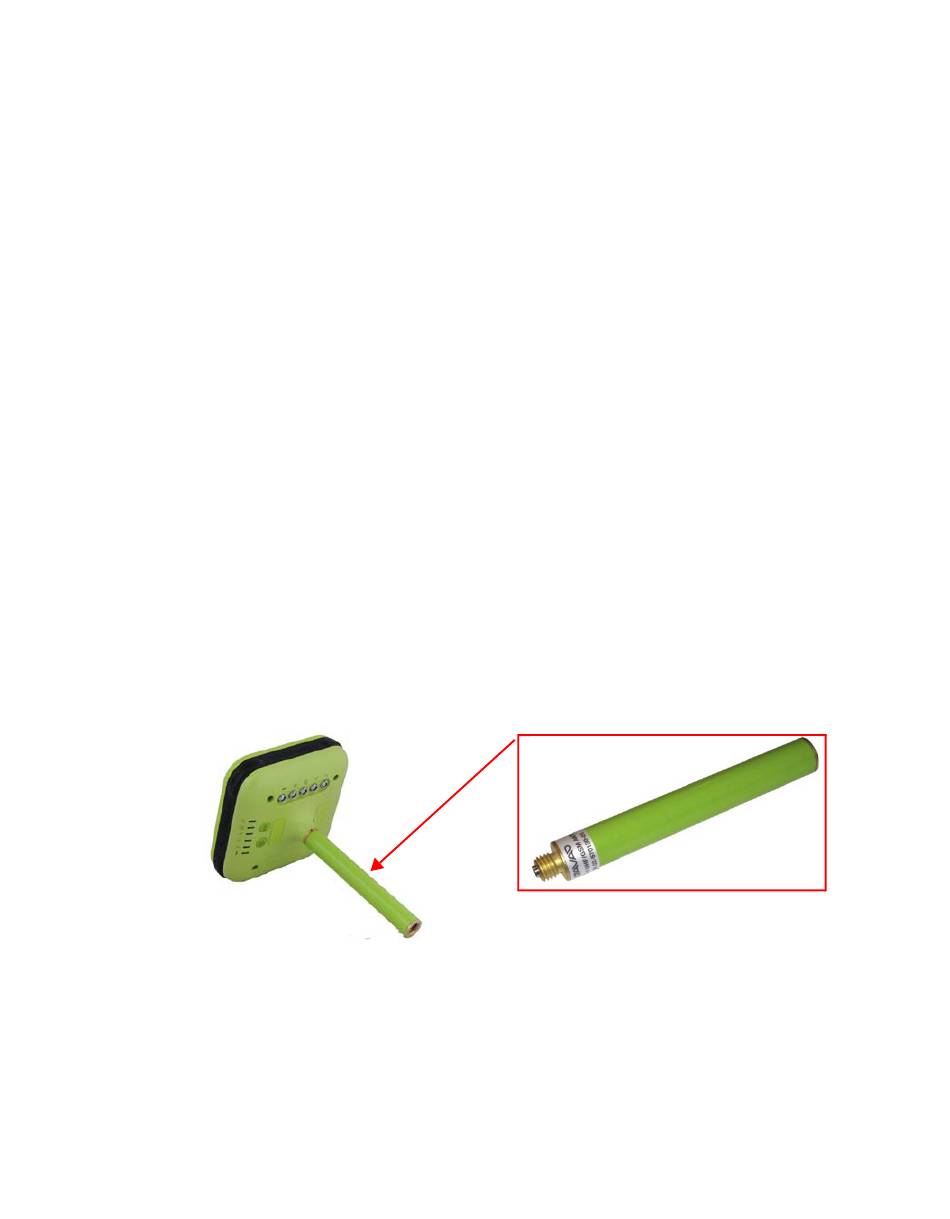

Figure 2-1. TRIUMPH-1 External UHF/GSM Antenna
