Javad TRIUMPH-1 Configuration Example page 10

10. Select the base receiver antenna and specify the elevation mask, than click Next:
11. Select the rover receiver antenna and specify the elevation mask, than click Next:
12. Set the rover settings and click Finish.
• Engine: RTK
• Data to use: select from the list
• RTK computation mode: extrapolation or time tagged.
13. Click Finish. The new receiver style has been successfully created.
To edit the existing style follow the instructions above to edit parameters of the selected style.
www.javad.com

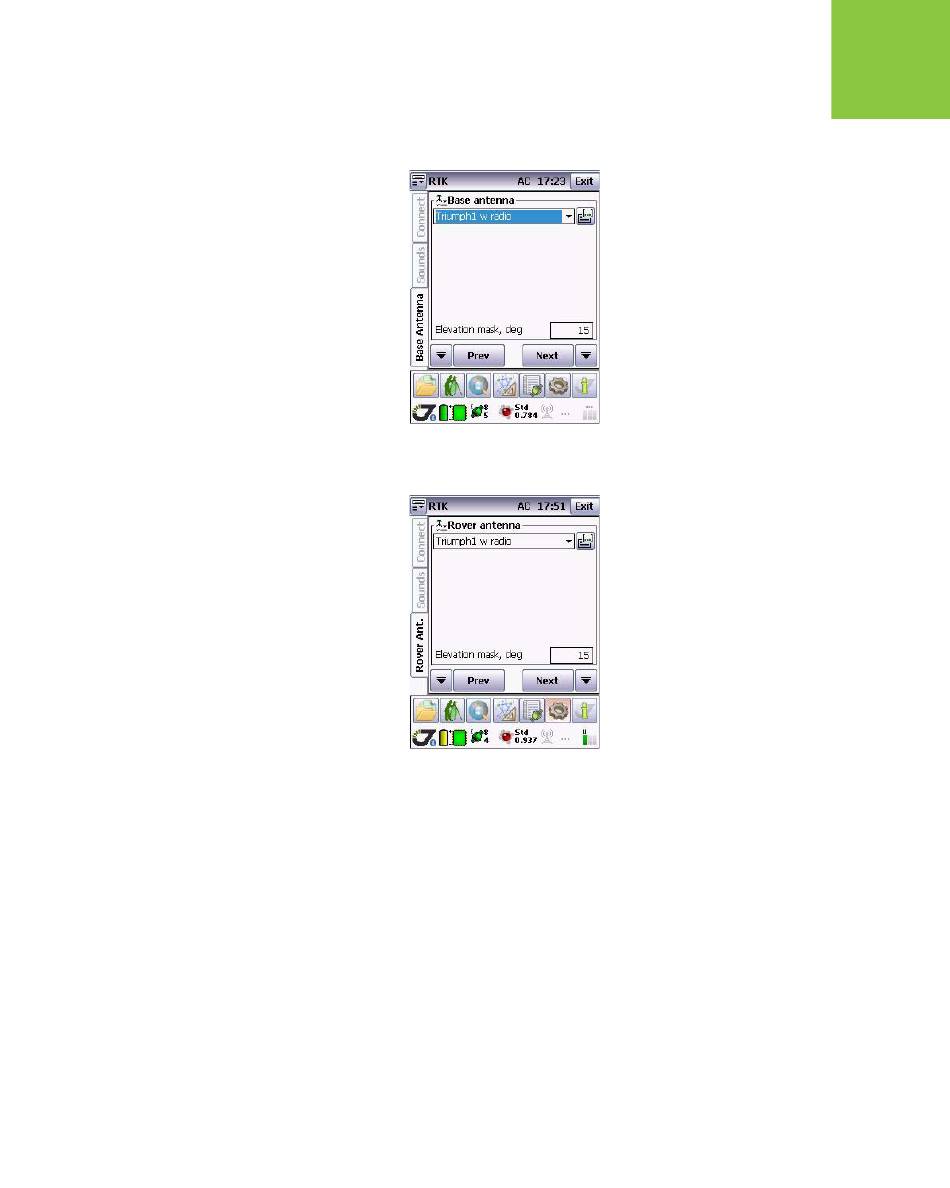

Figure 2-14. Base antenna
