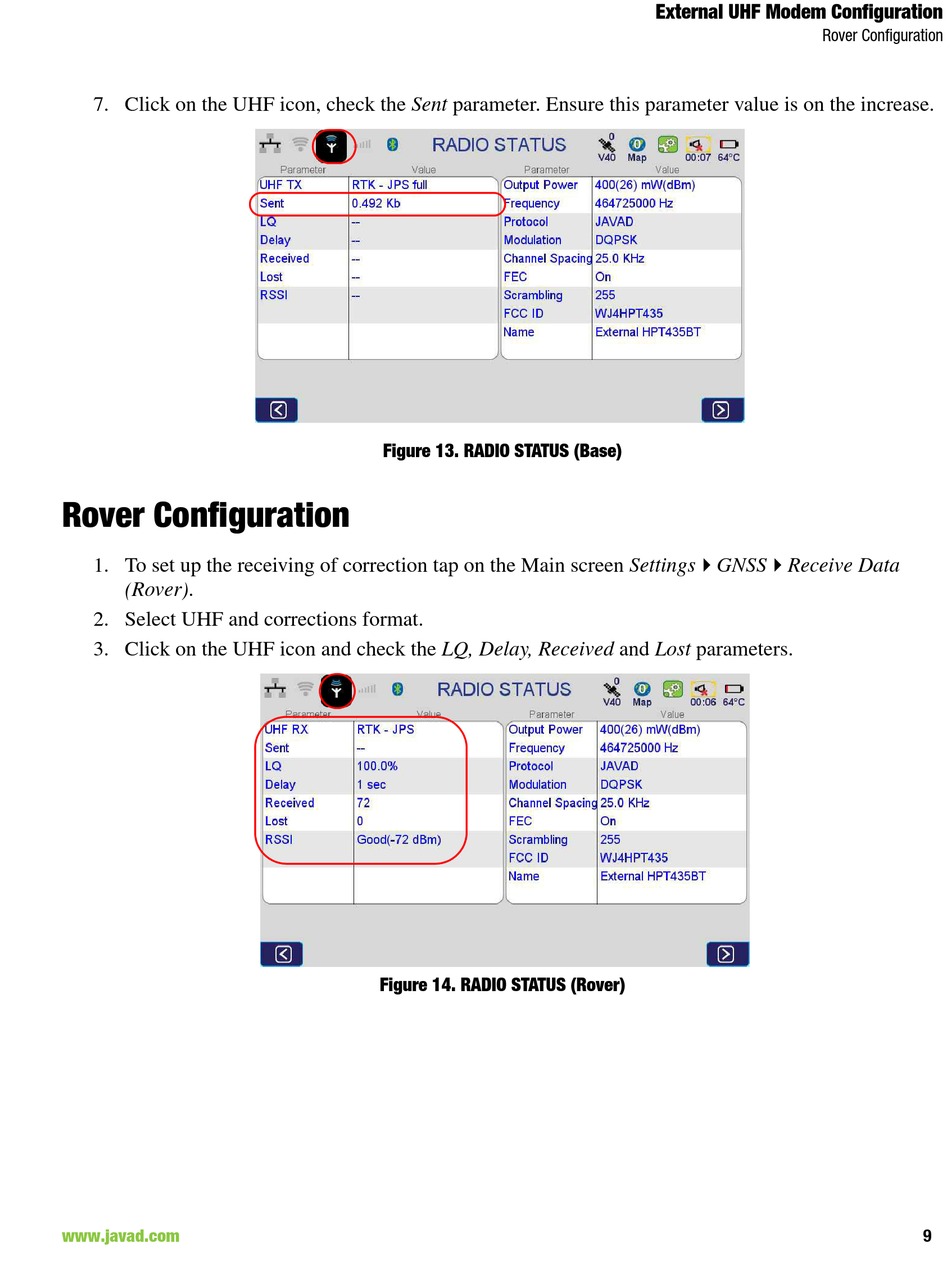

7. Click on the UHF icon, check the Sent parameter. Ensure this parameter value is on the increase.

Rover Configuration

1. To set up the receiving of correction tap on the Main screen SettingsGNSSReceive Data
(Rover).
2. Select UHF and corrections format.
3. Click on the UHF icon and check the LQ, Delay, Received and Lost parameters.
www.javad.com
Figure 13. RADIO STATUS (Base)
Figure 14. RADIO STATUS (Rover)
