Javad TRIUMPH-1 Configuration Example page 6

• Elevation mask
How to create new/edit receiver style
Tracy allows to user create the receiver type for both base and rover at once, eliminating mistakes
in configuration.
To create new or edit the saved receiver style, perform the following steps:
1. Switch to the extended mode using the top left corner menu button or View button:
2. Click the Configuration
3. Click the button to add new receiver style or
style.
www.javad.com

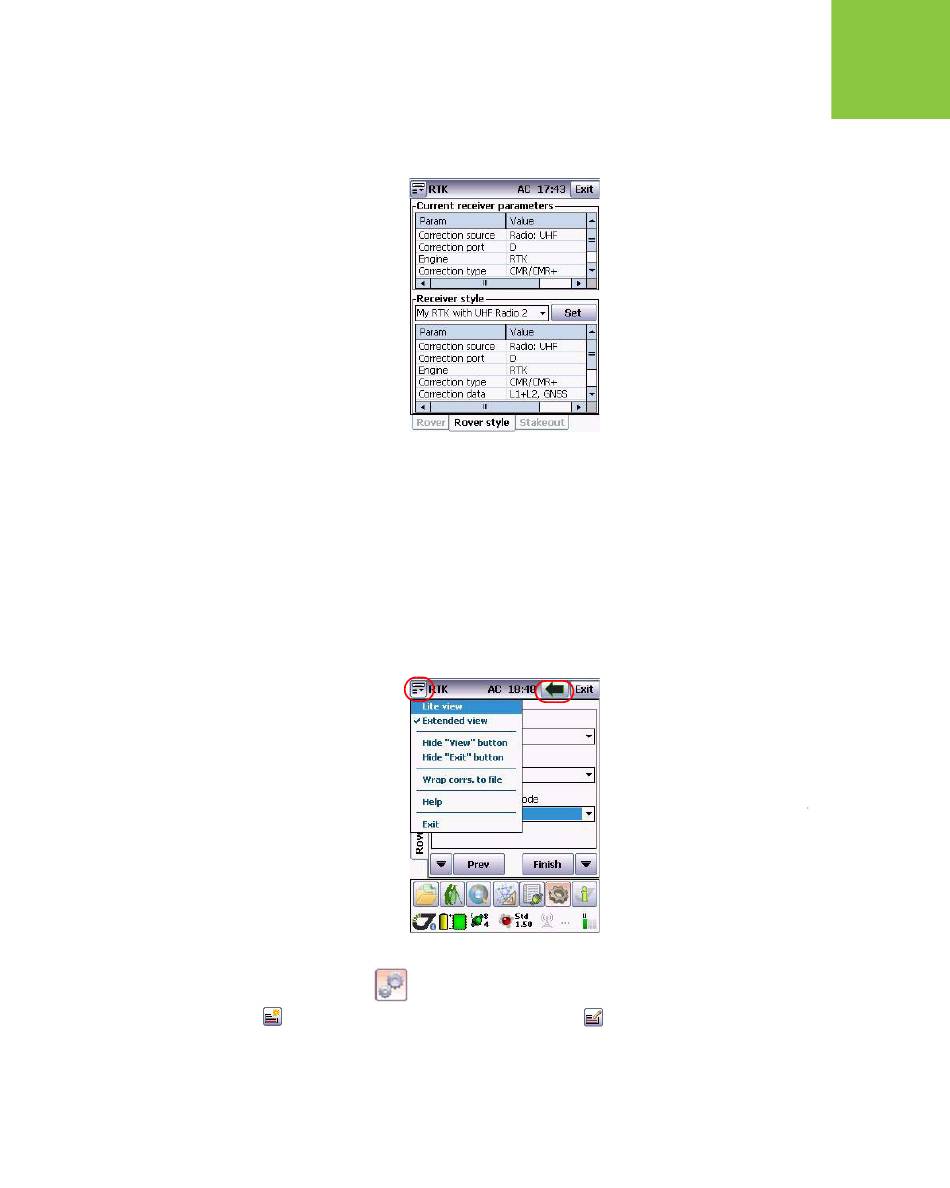

Figure 2-7. Rover style
Figure 2-8. Mode switch
button.
UHF Base & Rover Configuration Example
Rover Configuration
How to create new/edit receiver style
button to edit the existing receiver
6
