Javad TRIUMPH-1 Configuration Example page 5

UHF Base & Rover Configuration Example
Rover Configuration
Attaching UHF/GSM Antenna
• Otherwise click to the connection button to search bluetooth receiver.
3. Click the middle button and select RTK Rover and a receiver style from the list. If you
didn't create the receiver style early, see "To edit the existing style follow the instructions
above to edit parameters of the selected style." on page 10:
4. Click the Rover Style tab to check the current receiver parameters, to be sure receiver is
configured correct. Check the following:
• Correction sources
• Correction port
• Correction type
5

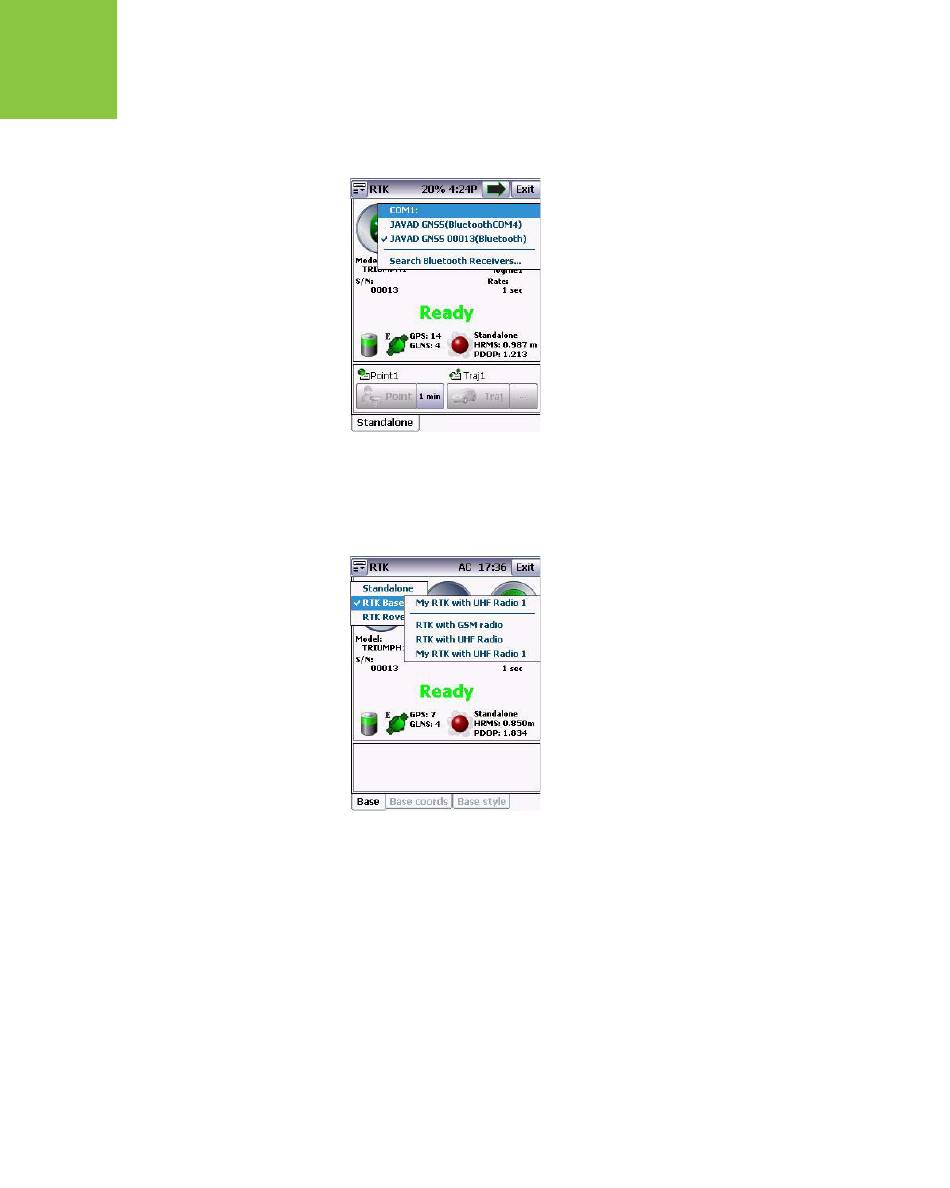

Figure 2-5. Connection to the receiver
Figure 2-6. RTK Rover
