3Com Wireless LAN Controller WX2200 User Manual page 172

172 C 7: M
HAPTER ANAGING AND
M Y
ONITORING OUR
To locate a rogue
1 Click on the Rogue Detection option in the main 3WXM tool bar. The
current rogue list is displayed.

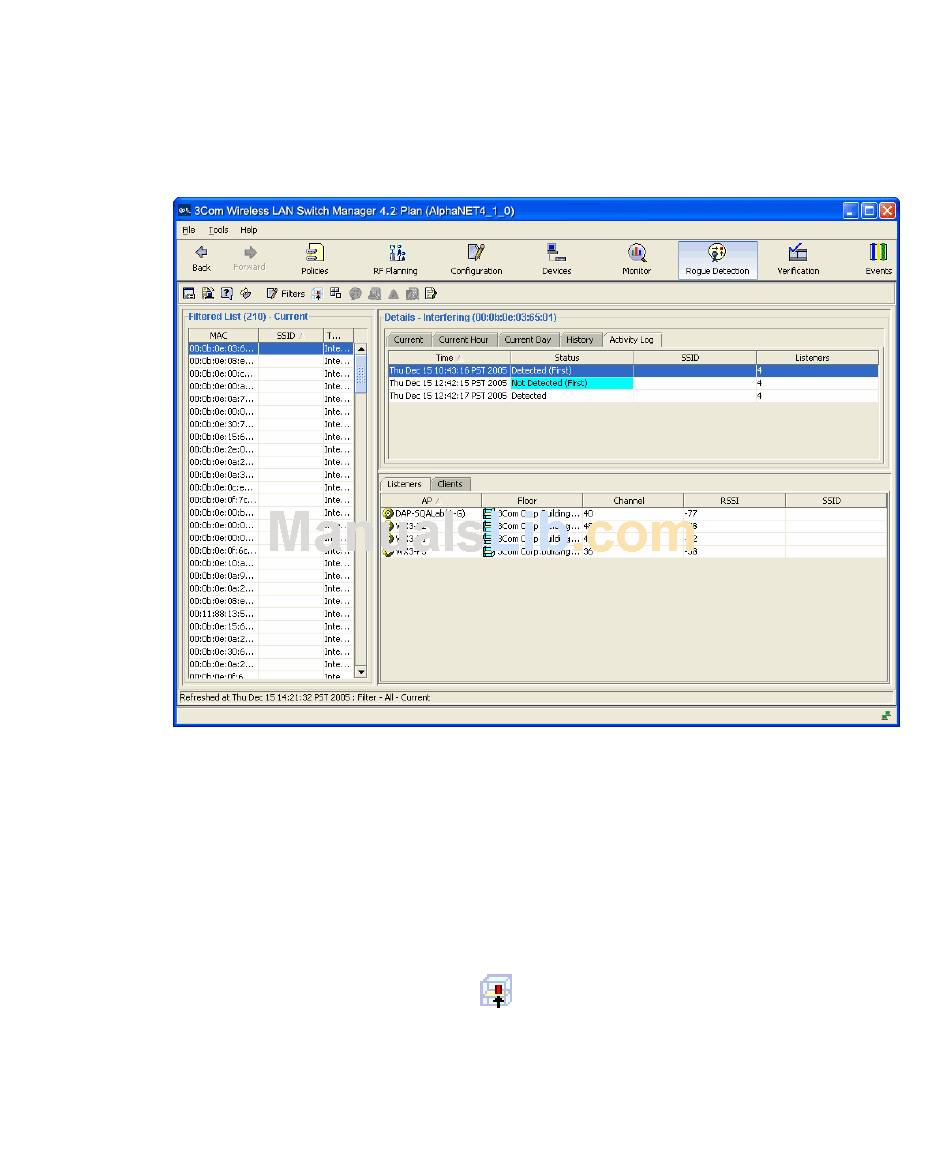

2 View statistics on a single rogue. Select a rogue from the Filtered List,
then select the Activity Log tab.
The number of listeners (other MAPs) that detected the rogue are
displayed. The larger the number of listeners detecting the rogue, the
easier it is for 3WXM to locate the rogue in the RF coverage area.
Under Status, the first detected event and the first "not detected" event
are displayed.
3 Locate the device in the RF coverage area. Select a rogue from the
Filtered List and click the
The approximate location of the rogue is displayed in the RF coverage
area.
N
ETWORK
(Locate) icon on the toolbar.
