AC Wiring—Receptacle Panel Options (If Equipped) (2 of 2)
20 AMP
CIRCUIT
BREAKER
20 AMP
G.F.I
OUTLET
20 AMP
CIRCUIT
BREAKER
20 AMP
G.F.I
OUTLET
20 AMP
CIRCUIT
BREAKER
20 AMP
G.F.I
OUTLET
Owner's Manual for Mobile Light Tower
30 AMP
CIRCUIT
BREAKER
20 AMP
CIRCUIT
BREAKER
240 VOLT
30 AMP
20 AMP
TWIST LOCK
G.F.I
WHT
RECEPTACLE
OUTLET
GRN
WHT
Receptacle Panel (2x5-20R, 3xL14-30R, 1x50A)
30 AMP
CIRCUIT
BREAKER
20 AMP
CIRCUIT
BREAKER
240 VOLT
30 AMP
20 AMP
TWIST-LOCK
G.F.I
WHT RECEPTACLE
OUTLET
GRN
WHT
Receptacle Panel (2x5-20R, 4xL14-30R)
30 AMP
CIRCUIT
BREAKER
20 AMP
CIRCUIT
BREAKER
120 VOLT
20 AMP
30 AMP
G.F.I
WHT RV RECPTACLE
OUTLET
GRN
WHT
Receptacle Panel (2x5-20R, 2xTT-30, 2x14-50)
30 AMP 30 AMP 50 AMP
CIRCUIT CIRCUIT CIRCUIT
BREAKER BREAKER BREAKER
240 VOLT 240 VOLT
240 VOLT
30 AMP 30 AMP
50 AMP
TWIST LOCK TWIST LOCK
TWIST-LOCK
RECEPTACLE RECEPTACLE
RECEPTACLE
GRN GRN GRN
30 AMP 30 AMP 30 AMP
CIRCUIT CIRCUIT CIRCUIT
BREAKER BREAKER BREAKER
240 VOLT 240 VOLT 240 VOLT
30 AMP 30 AMP 30 AMP
TWIST-LOCK TWIST-LOCK TWIST-LOCK
RECEPTACLE RECEPTACLE RECEPTACLE
GRN GRN GRN
30 AMP 50 AMP 50 AMP
CIRCUIT CIRCUIT CIRCUIT
BREAKER BREAKER BREAKER
240 VOLT 240 VOLT
50 AMP 50 AMP
120 VOLT
TWIST-LOCK TWIST-LOCK
30 AMP
RV RECEPTACLE RECEPTACLE RECEPTACLE
GRN GRN GRN

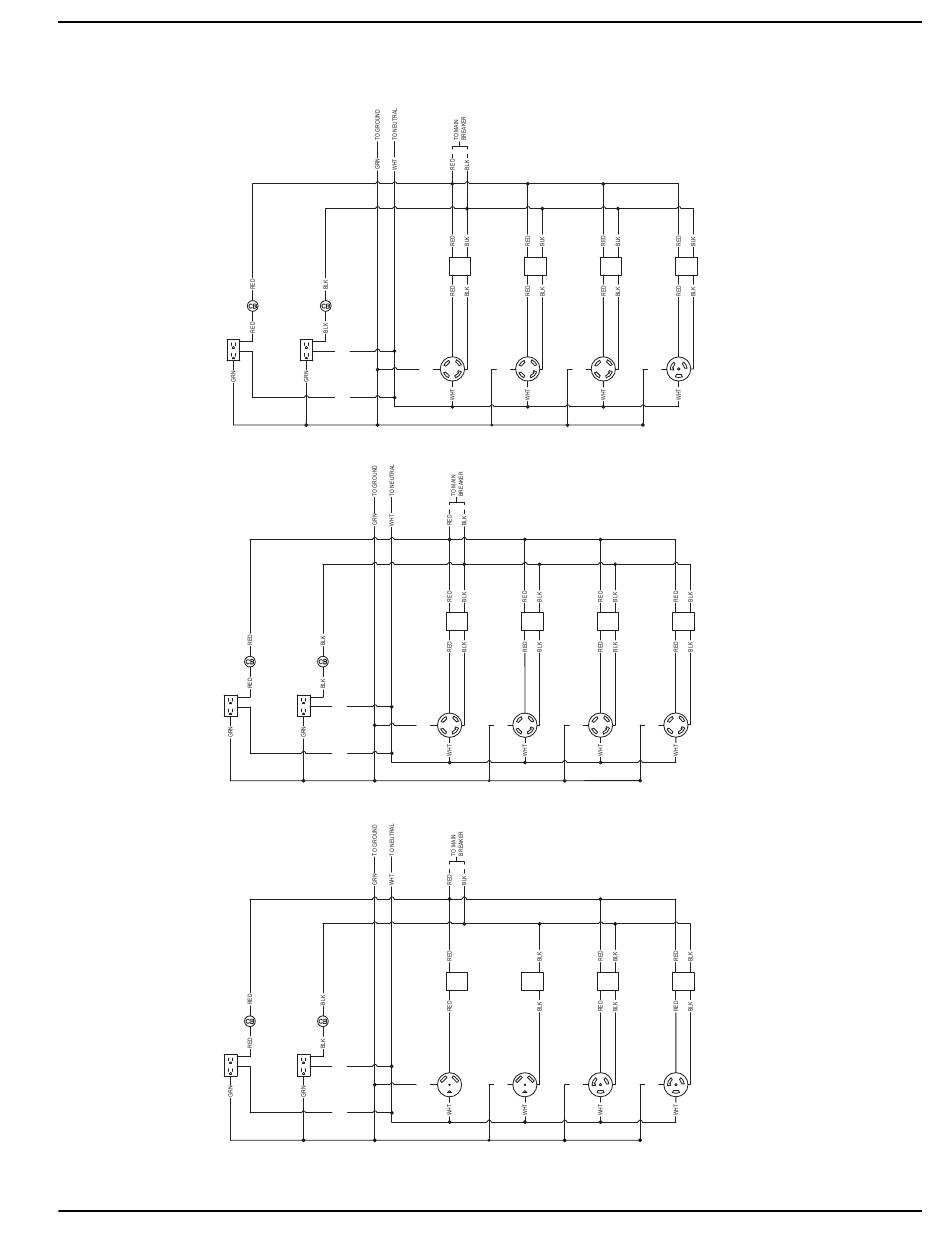

Wiring Diagrams
