Section 3: Operation

Unit Set-Up

E
D
B
C
DANGER
High Voltage. Verify area above unit is clear
of overhead wires and obstructions. Contact
with high-voltage power lines will result in
death or serious injury.
WARNING
Do not set up the unit if high winds
> 60 mph > 60 mph
are expected. High winds can cause the
unit to tip or fall, causing severe injury
or machine damage.
1. Position unit at ground level or higher than the area
to be illuminated.
2. See Figure 3-1. Place unit on relatively flat, firm
ground. Block the wheels (A).
Owner's Manual for Mobile Light Tower
H
D E
G

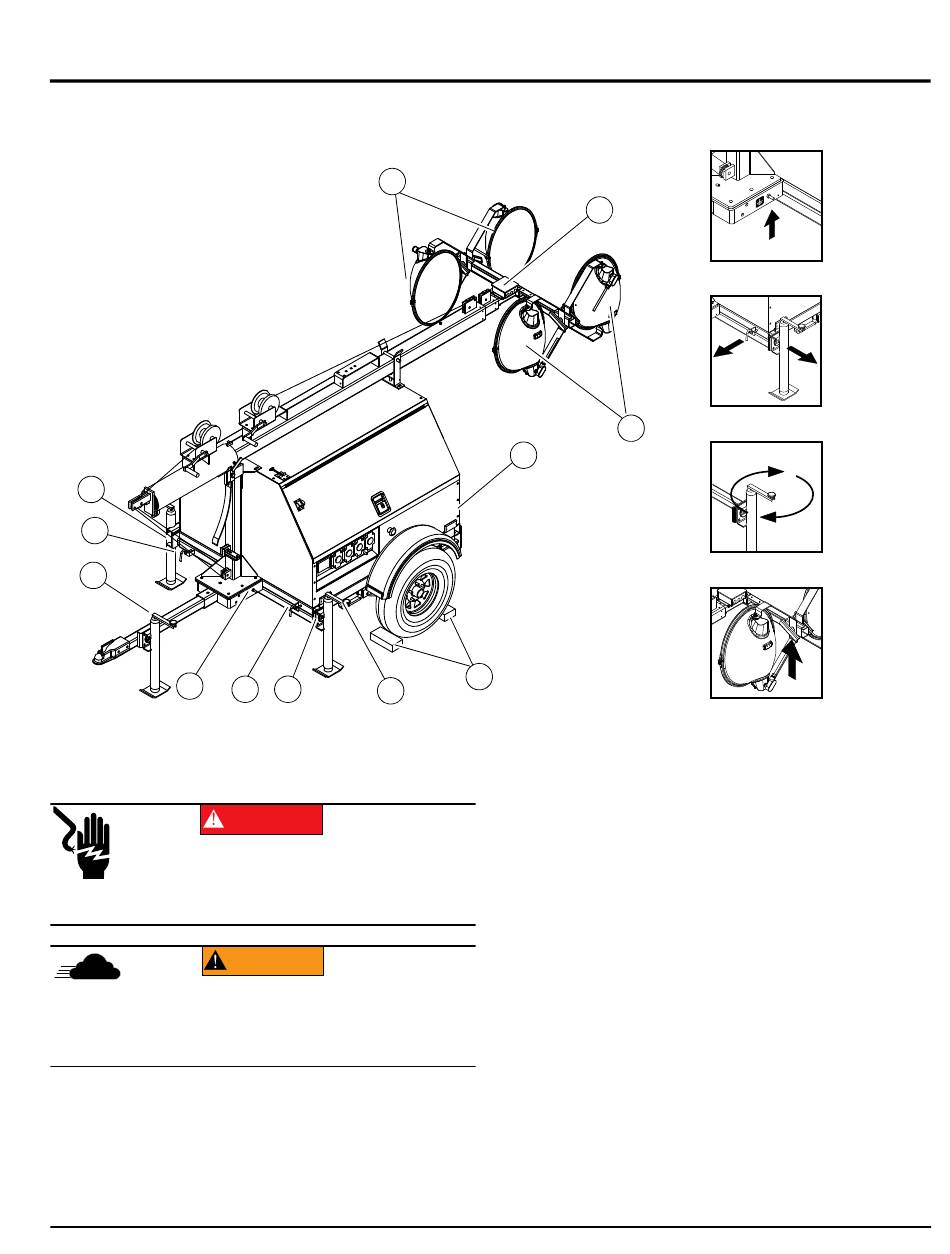

Figure 3-1. Set-Up Components
(000260a)
(000297)
J
H
F
A
3. Pull locking pin on tongue jack (B). Rotate the jack
90°. Reinstall locking pin. Rotate jack handle
clockwise to raise trailer tongue off towing vehicle.
4. A grounding stud (C) is located on the trailer frame
at the base of the mast post. For grounding
requirements, follow National Electrical Code
(NEC), state, and local regulations.
5. Pull locking pins (D) on outriggers (E). Pull each
outrigger out until spring-loaded locking pin snaps
into place. Pull locking pin on each outrigger jack
and rotate each jack 90° so the jack pad is facing
down. Install the locking pin.
6. Pull the locking pin on the rear jack (F) and rotate it
90º. Install the locking pin. Turn the jack handle
clockwise to start leveling the trailer.
7. Rotate each jack handle clockwise to start leveling
the trailer. Adjust all four jacks by rotating their
handles clockwise until they are firmly in contact
with the ground (G).
DETAIL C
DETAIL D
DETAIL G
DETAIL H
004659
