Summary of Contents for Avalue Technology ECM-KBLH

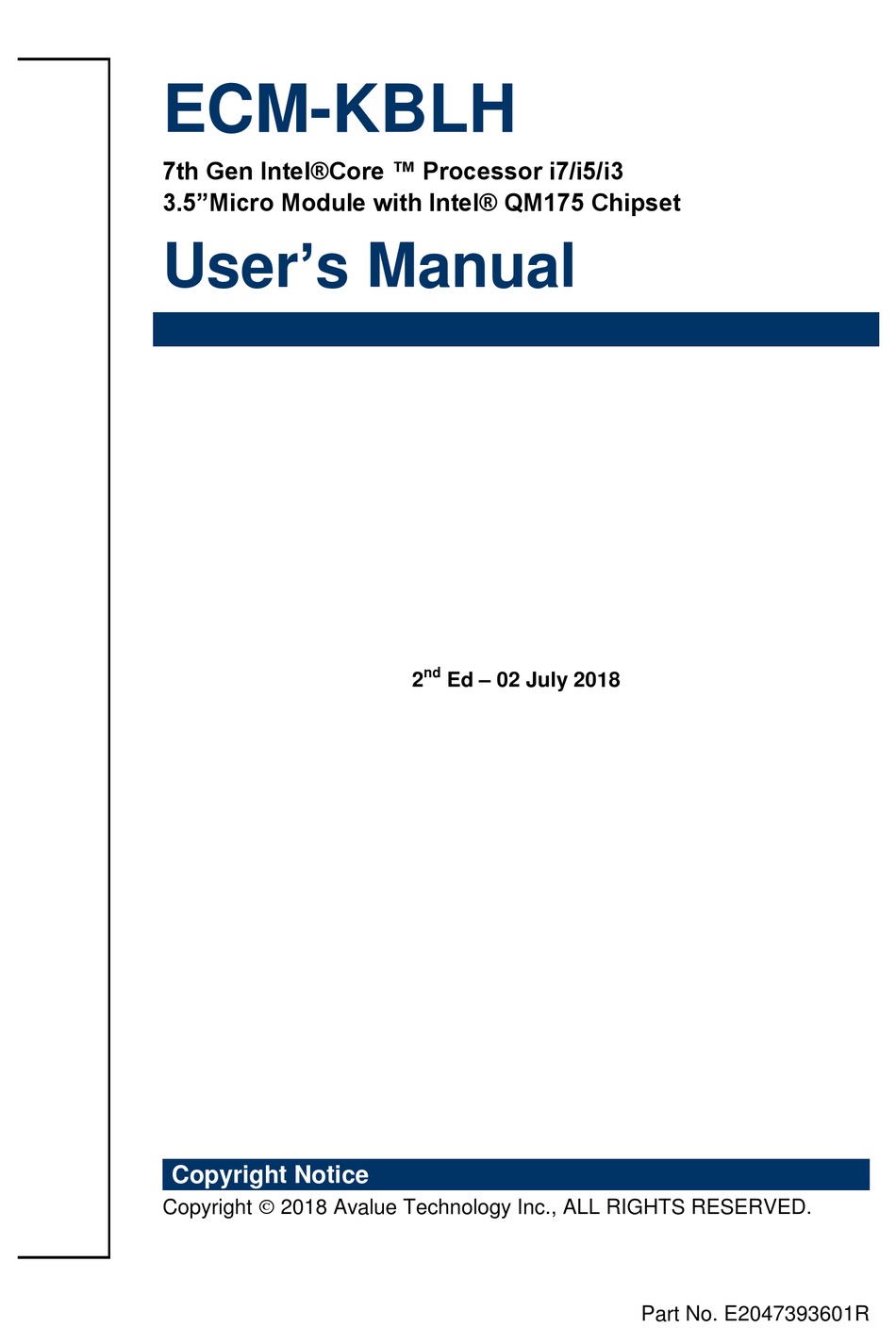

- Page 1 ECM-KBLH 7th Gen Intel®Core ™ Processor i7/i5/i3 3.5”Micro Module with Intel® QM175 Chipset User’s Manual Ed – 02 July 2018 Copyright Notice Copyright 2018 Avalue Technology Inc., ALL RIGHTS RESERVED. Part No. E2047393601R...
- Page 2 These answers are normally a lot more detailed than the ones we can give over the phone. So please consult the user’s manual first. To receive the latest version of the user’s manual; please visit our Web site at: http://www.avalue.com.tw/ 2 ECM-KBLH User’s Manual...
-
Page 3: Table Of Contents
SPI connector (JSPI) ......................25 2.3.18 Battery connector (JBAT) ...................... 26 2.3.19 Audio connector (JAUDIO) ....................26 Signal Description – Audio connector (JAUDIO) ................26 2.4.19.1 3.BIOS Setup ........................27 Introduction ......................28 Starting Setup ...................... 28 Using Setup ......................29 ECM-KBLH User’s Manual... - Page 4 Intel TXT Configuration ........................52 3.6.2.11 Network Stack Configuration ......................53 3.6.2.12 CSM Configuration........................... 54 3.6.2.13 NVMe Configuration ......................... 56 3.6.2.14 USB Configuration ........................... 56 3.6.3 Chipset ............................. 58 3.6.3.1 System Agent (SA) Configuration ....................58 4 ECM-KBLH User’s Manual...
- Page 5 Install Chipset Driver ................... 73 Install Display Driver .................... 74 Install LAN Driver ....................75 Install ME Driver ....................76 Install Serial IO Driver ..................77 Install Audio Driver (For Realtek ALC233) ............78 5. Mechanical Drawing ....................79 ECM-KBLH User’s Manual...
-
Page 6: Getting Started
1.2 Packing List Before you begin installing your single board, please make sure that the following materials have been shipped: 1 x 3.5” ECM-KBLH Micro Module 1 x DVD-ROM contains the followings: ... -
Page 7: Document Amendment History
User’s Manual 1.3 Document Amendment History Revision Date Comment January 2018 Avalue Initial Release July 2018 Avalue Update Packing List ECM-KBLH User’s Manual... -
Page 8: Manual Objectives
We strongly recommend that you study this manual carefully before attempting to set up ECM-KBLH or change the standard configurations. Whilst all the necessary information is available in this manual we would recommend that unless you are confident, you contact your supplier for guidance. -
Page 9: System Specifications
Dual channel 18/24-bit LVDS (via 7511B) Audio AC97 Codec Realtek ALC233 HD codec Supports 2.1-CH Audio Audio Amp Internal 2W AMP. Ethernet 1 x Intel I210AT GbE controller LAN Chip 1 x Intel I219LM Gigabit Ethernet PHY 10/100/1000 Base-Tx compatible Ethernet Interface ECM-KBLH User’s Manual... - Page 10 Operating Humidity 0% ~ 90% relative humidity, non-condensing Size (L x W) 5.7" x 4" (146mm x 101mm) Weight 0.44 lbs (0.2 Kg) OS Support Win 10 / Linux Note: Specifications are subject to change without notice. 10 ECM-KBLH User’s Manual...
-
Page 11: Architecture Overview-Block Diagram
User’s Manual 1.6 Architecture Overview—Block Diagram The following block diagram shows the architecture and main components of ECM-KBLH. ECM-KBLH User’s Manual 11... -
Page 12: Hardware Configuration
ECM-KBLH User’s Manual 2. Hardware Configuration Note: If you need more information, please visit our website: http://www.avalue.com.tw 12 ECM-KBLH User’s Manual... -
Page 13: Product Overviews
User’s Manual 2.1 Product Overviews ECM-KBLH User’s Manual 13... - Page 14 ECM-KBLH User’s Manual 14 ECM-KBLH User’s Manual...
-
Page 15: Jumper & Connector List
DUAL HDMI connector RJ-45 Ethernet x 2 HDD/Power LED indicator LED1 Power connector 2 x 2 wafer, pitch 4.20 mm SATA power connector 1/2 2 x 1 wafer, pitch 2.00 mm SATAPW1/2 SATA1/2 Serial ATA connector 1/2 ECM-KBLH User’s Manual 15... - Page 16 ECM-KBLH User’s Manual NGFF M.2 KEY-B 2242 connector MPCIE Full size Mini-PCI-e connector SODIMM DDR4 SODIMM socket 16 ECM-KBLH User’s Manual...
-
Page 17: Setting Jumpers & Connectors
User’s Manual 2.3 Setting Jumpers & Connectors 2.3.1 Clear CMOS (JCMOS) Protect* Clear CMOS * Default 2.3.2 Serial port 1 pin9 signal select (JRI) Ring* +12V * Default ECM-KBLH User’s Manual 17... -
Page 18: At/Atx Input Power Select (Jat)
ECM-KBLH User’s Manual 2.3.3 AT/ATX Input power select (JAT) 2.3.4 LCD backlight brightness adjustment (JVR) PWM Mode* DC Mode * Default 18 ECM-KBLH User’s Manual... -
Page 19: Lcd Inverter Connector (Jbkl)
User’s Manual 2.3.5 LCD Inverter connector (JBKL) Signal VBRIGHT BKLEN +12V 2.3.6 CPU fan connector (CPU_FAN) Signal +12V EC_TACH0 FAN_PWM0 ECM-KBLH User’s Manual 19... -
Page 20: System Fan Connector (Sys_Fan)
ECM-KBLH User’s Manual 2.3.7 System fan connector (SYS_FAN) Signal +12V EC_TACH1 FAN_PWM1 2.3.8 Serial port 2 connector (JCOM2) Signal PIN PIN Signal COM_DCD#_1 COM_RXD#_1 COM_TXD_1 COM_DTR#_1 COM_DSR#_1 COM_RTS#_1 COM_CTS#_1 COM_RI#_1 20 ECM-KBLH User’s Manual... -
Page 21: Serial Port 2 In Rs-422/485 Mode (J422_485)
Serial port 2 in RS-422/485 mode (J422_485) Signal PIN PIN Signal 485-422_TXDN 422_RXDN 485-422_TXDP 422_RXDP 2.3.10 General purpose I/O connector (JDIO) Signal PIN PIN Signal DIO_GP10 DIO_GP20 DIO_GP11 DIO_GP21 DIO_GP12 DIO_GP22 DIO_GP13 DIO_GP23 SMB_CLK_VCC 10 SMB_DATA_VCC ECM-KBLH User’s Manual 21... -
Page 22: Sata Power Connector 1/2 (Satapw1/2)
ECM-KBLH User’s Manual 2.3.11 SATA Power connector 1/2 (SATAPW1/2) Signal SATA_PWR1 SATAPW1 2.3.12 Power connector (PWR) Signal PIN PIN Signal +12V +12V 22 ECM-KBLH User’s Manual... -
Page 23: On-Board Header For Usb2.0 (Jusb)
User’s Manual 2.3.13 On-board header for USB2.0 (JUSB) Signal PIN PIN Signal +5VSB USB_DN4 USB_DP4 USB_DP5 USB_DN5 +5VSB 2.3.14 LPC connector (JLPC) Signal PIN PIN Signal LPC_AD0 +3.3V LPC_AD1 PLTRST# LPC_AD LPC_LFRAME# LPC_AD03 CLK_PCI_JLPC SERIRQ +5VSB ECM-KBLH User’s Manual 23... -
Page 24: Lvds Connector (Jlvds)
ECM-KBLH User’s Manual 2.3.15 LVDS connector (JLVDS) Signal PIN PIN Signal +12V +12V LVDS_CLK2_N LVDS_CLK1_N LVDS_CLK2_P LVDS_CLK1_P LVDS_DATA7_N LVDS_DATA6_N LVDS_DATA7_P LVDS_DATA6_P LVDS_DATA5_N LVDS_DATA4_N LVDS_DATA5_P LVDS_DATA4_P LVDS_DATA3_N LVDS_DATA2_N LVDS_DATA3_P LVDS_DATA2_P LVDS_DATA1_N LVDS_DATA0_N LVDS_DATA1_P LVDS_DATA0_P LVDS_DDC_CLK LVDS_DDC_DATA +3.3V +3.3V 24 ECM-KBLH User’s Manual... -
Page 25: Miscellaneous Setting Connector (Jfp)
User’s Manual 2.3.16 Miscellaneous setting connector (JFP) Signal Signal PWR_BTN_IN_EC# RESET_BT +5VSB PWR_LED- HDD_LED# 2.3.17 SPI connector (JSPI) Signal PIN PIN Signal +3.3VSB SPI_CS0# SPI_CLK SPI_SO SPI_SI HOLD# EC_SMCLK_DEBUG EC_SMDAT_DEBUG ECM-KBLH User’s Manual 25... -
Page 26: Battery Connector (Jbat)
MIC1-R-IN MIC1-L-IN FRONT-JD LINE1-JD MIC1-JD HD_AGND SPK_L+ SPK_R+ SPK_L- SPK_R- 2.4.19.1 Signal Description – Audio connector (JAUDIO) Signal Signal Description LINE1-JD AUDIO IN (LINE_RIN/LIN)sense pin FRONT-JD AUDIO Out(ROUT/LOUT) sense pin MIC1-JD MIC IN (MIC_RIN/LIN) sense pin 26 ECM-KBLH User’s Manual... -
Page 27: Bios Setup
User’s Manual 3.BIOS Setup ECM-KBLH User’s Manual 27... -
Page 28: Introduction
If the message disappears before you respond and you still wish to enter Setup, restart the system to try again by turning it OFF then ON or pressing the "RESET" button on the system case. You may also restart by simultaneously pressing <Ctrl>, <Alt>, and <Delete> keys. 28 ECM-KBLH User’s Manual... -
Page 29: Using Setup
Note: Some of the navigation keys differ from one screen to another. To Display a Sub Menu Use the arrow keys to move the cursor to the sub menu you want. Then press <Enter>. A “” pointer marks all sub menus. ECM-KBLH User’s Manual 29... -
Page 30: Getting Help
Even a seemingly small change to the chipset setup has the potential for causing you to use the override. 30 ECM-KBLH User’s Manual... -
Page 31: Bios Setup
<Enter> to accept and enter the sub-menu. 3.6.1 Main Menu This section allows you to record some basic hardware configurations in your computer and set the system clock. ECM-KBLH User’s Manual 31... -
Page 32: System Language
Visit the Avalue website (www.avalue.com.tw) to download the latest product and BIOS information. 3.6.2 Advanced Menu This section allows you to configure your CPU and other system devices for basic operation through the following sub-menus. 32 ECM-KBLH User’s Manual... -
Page 33: Cpu Configuration
Item Options Description When enabled, a VMM can utilize the additional Intel (VMX) Virtualization Disabled hardware capabilities provided by Vanderpool Technology Enabled[Default] Technology. All[Default] Number of cores to enable in each processor Active Processor Cores package. ECM-KBLH User’s Manual 33... -
Page 34: Power & Performance
EMTTM enabled too). AUTO means enabled, unless Disabled max turbo ratio is bigger than 16 – SKL a0 W/A. Enabled[Default], Enable/Disable CPU Power Management. Allows CPU C States Disabled to go to C states when it’s not 100293502184tilized. 34 ECM-KBLH User’s Manual... -
Page 35: View/Configure Turbo Options
Power Limit 2 value in Milli Watts. BIOS will round to the nearest 1/8W when Power Limit 2 programming. If the value is 0, BIOS will program this value as 1.25*TDP. For 12.50W, enter 12500. Processor applies ECM-KBLH User’s Manual 35... -
Page 36: Gt - Power Management Control
Feature. This feature will opportunistically lower the turbo frequency to increase Disabled, Energy Efficient Turbo efficiency. Recommended only to disable in Enabled[Default] overclocking situations where turbo frequency must remain constant. Otherwise, leave enabled. 3.6.2.2.2 GT – Power Management Control 36 ECM-KBLH User’s Manual... -
Page 37: Pch-Fw Configuration
Default Max Frequency[Default] 100Mhz/150Mhz/200Mhz/250Mhz/300Mhz /350Mhz/400Mhz/450Mhz/500Mhz/550Mhz Maximum GT frequency Auto Updated. /600Mhz/650Mhz/700Mhz/750Mhz/800Mhz /850Mhz/900Mhz/950Mhz/1000Mhz/1050Mhz /1100Mhz/1150Mhz/1200Mhz 3.6.2.3 PCH-FW Configuration Item Options Description Disabled, When Disabled ME will not be unconfigured on ME Unconfig on RTC Clear Enabled[Default] RTC Clear. ECM-KBLH User’s Manual 37... -
Page 38: Amt Configuration
Enable/Disable Alert Standard Format support. Enabled[Default] Disabled[Default], USB Provisioning of AMT Enable/Disable of AMT USB Provisioning. Enabled 3.6.2.3.1.1 CIRA Configuration Item Description Trigger CIRA boot. Note: Network Access must be activated first Activate Remote Assistance Process from MEBx Setuup. 38 ECM-KBLH User’s Manual... -
Page 39: Asf Configuration
User’s Manual 3.6.2.3.1.2 ASF Configuration Item Option Description Disabled, Enable/Disable PET Events Progress to receive PET Progress Enabled[Default] PET Events. Disabled[Default], WatchDog Enable/Disable WatchDog Timer. Enabled 3.6.2.3.1.3 Secure Erase Configuration ECM-KBLH User’s Manual 39... -
Page 40: Oem Flags Settings
ME Confirmation Enabled unconfiguration. Disabled[Default], OEMFlag Bit 14: Enable OEM debug menu in MEBx OED Debug Menu Enable Enabled MEBx. Disabled[Default], OEMFlag Bit 15: Unconfigure ME with resetting Unconfigure ME Enabled MEBx password to default. 40 ECM-KBLH User’s Manual... -
Page 41: Mebx Resolution Settings
3.6.2.3.1.5 MEBx Resolution Settings Item Description Auto[Default], Non-UI Mode Resolution 80x25 Resolution for non-UI text mode. 100x31 Auto[Default], UI Mode Resolution 80x25 Resolution for UI text mode. 100x31 Auto[Default], 640x480 Graphics Mode Resolution Resolution for graphics mode. 800x600 1024x768 ECM-KBLH User’s Manual 41... -
Page 42: Firmware Update Configuration
ECM-KBLH User’s Manual 3.6.2.3.2 Firmware Update Configuration Item Option Description Disabled [Default], ME FW Image Re-Flash Enable/Disable Me FW Image Re-Flash function. Enabled 3.6.2.3.3 PTT Configuration 42 ECM-KBLH User’s Manual... -
Page 43: Trusted Computing
Your Computer will reboot during restart in order to TPM Clear change State of Security Device. Disabled Platform Hierarchy Enable or Disable Platform Hierarchy. Enabled[Default], Disabled Storage Hierarchy Enable or Disable Storage Hierarchy. Enabled[Default], Disabled Endorsement Hierarchy Enable or Disable Endorsement Hierarchy. Enabled[Default], ECM-KBLH User’s Manual 43... -
Page 44: Apci Settings
Suspend Disabled, ACPI Sleep State system will enter when the SUSPEND S3 (Suspend to RAM)[Default] button is pressed. Disabled[Default], S3 Video Repost Enable or Disable S3 Video Repost. Enabled Disabled[Default], ErP Function ErP Function (Deep S5). Enabled 44 ECM-KBLH User’s Manual... -
Page 45: It8528 Super Io Configuration
You can use this item to set up or change the IT8528 Super IO configuration for serial ports. Please refer to 3.6.2.6.1~ 3.6.2.6.2 for more information. Item Description Serial Port 1 Configuration Set Parameters of Serial Port 1 (COMA). Serial Port 2 Configuration Set Parameters of Serial Port 2 (COMB). ECM-KBLH User’s Manual 45... -
Page 46: Serial Port 1 Configuration
3.6.2.6.1 Serial Port 1 Configuration Item Option Description Enabled[Default], Serial Port Enable or Disable Serial Port (COM). Disabled 3.6.2.6.2 Serial Port 2 Configuration Item Option Description Enabled[Default], Serial Port Enable or Disable Serial Port (COM). Disabled 46 ECM-KBLH User’s Manual... -
Page 47: Hw Monitor
UART 232[Default] UART 232 422 485 UART 422 Change the Serial Port as RS232/422/485. UART 485 3.6.2.7 HW Monitor Item Options Description Enabled, Smart Fan Function Enables or Disables Smart Fan. Disabled[Default] 3.6.2.7.1 Smart Fan Mode Configuration ECM-KBLH User’s Manual 47... -
Page 48: S5 Rtc Wake Settings
Enable or disable System wake on alarm event. Select Disabled[Default], Fixed Time, system will wake on the hr::min::sec specified. Wake system from S5 Fixed Time Select Dynamic Time, System will wake on the current time Dynamic Time + Increase minute(s). 48 ECM-KBLH User’s Manual... - Page 49 Wake up hour 0-23 3pm. Select 0-23 For example enter 3 for 3am and 15 for Wake up minute 0-23 3pm. Select 0-23 For example enter 3 for 3am and 15 for Wake up second 0-23 3pm. ECM-KBLH User’s Manual 49...
-
Page 50: Serial Port Console Redirection
Select Fixed Time, system will wake on the Wake system from S5 Fixed Time hr::min::sec specified. Select Dynamic Time, System Dynamic Time[Default] will wake on the current time + Increase minute(s). Wake up minute increase 1-5. 3.6.2.9 Serial Port Console Redirection 50 ECM-KBLH User’s Manual... -
Page 51: Legacy Console Redirection Settings
Console Redirection Enable or Disable. Enabled 3.6.2.9.1 Legacy Console Redirection Settings Item Option Description Select a COM port to display redirection of Legacy Serial Redirection Port COM0[Default] Legacy OS and Legacy OPROM Messages. 3.6.2.9.2 Console Redirection Settings ECM-KBLH User’s Manual 51... -
Page 52: Intel Txt Configuration
Hardware RTS/CTS the data flow. Once the buffers are empty, a ‘start’ signal can be sent to re-start the flow. Software Xon/Xoff Hardware flow control uses two wires to send start/stop signals. 3.6.2.10 Intel TXT Configuration 52 ECM-KBLH User’s Manual... -
Page 53: Network Stack Configuration
Enable/Disable UEFI Network Stack. Disabled[Default] Item Options Description Enabled[Default] Network Stack Enable/Disable UEFI Network Stack. Disabled Enable Ipv4 PXE Boot Support. If disabled Enabled Ipv4 PXE Support Disabled[Default] IPV4 PXE boot option will not be created. ECM-KBLH User’s Manual 53... -
Page 54: Csm Configuration
Wait time to press ESC key to abort the PXE PXE boot wait time boot. Number of times presence of media will be Media detect count checked. 3.6.2.12 CSM Configuration Item Options Description Enabled CSM Support Enable/Disable CSM Support. Disabled[Default] 54 ECM-KBLH User’s Manual... - Page 55 Legacy[Default] Do not launch Controls the execution of UEFI and Legacy Video UEFI Video OpROM. Legacy[Default] Do not launch Determines OpROM execution policy for Other PCI devices UEFI devices other than Network, Storage, or Legacy[Default] Vide. ECM-KBLH User’s Manual 55...
-
Page 56: Nvme Configuration
The USB Configuration menu helps read USB information and configures USB settings. Item Options Description Enables Legacy USB support. AUTO option Enabled[Default] disables legacy support if no USB devices are Legacy USB Support Disabled connected. DISABLE option will keep SUB Auto devices available only for EFI applictions. 56 ECM-KBLH User’s Manual... - Page 57 Mass storage device emulation type. ‘AUTO’ Auto[Default] Floppy enumerates devices according to their media Mass Storage Devices Forced FDD format. Optical drives are emulated as ‘CDROM’, drives with no media will be Hard Disk CD-ROM emulated according to a drive type. ECM-KBLH User’s Manual 57...
-
Page 58: Chipset
ECM-KBLH User’s Manual 3.6.3 Chipset 3.6.3.1 System Agent (SA) Configuration Item Option Description Enabled[Default] VT-d VT-d capability. Disabled 58 ECM-KBLH User’s Manual... -
Page 59: Graphics Configuration
2048MB aperture. To use this 1024MB feature, please disable CSM Support. 2048MB 256M[Default] Select DVMT 5.0 Total Graphics Memory size DVMT Total Gfx Mem 128M used by the Internal Graphics Device. 3.6.3.1.1.1 LCD Control ECM-KBLH User’s Manual 59... - Page 60 Select LVDS back light PWM duty. 100%[Default] 200 Hz[Default] 300 Hz 400 Hz 500 Hz LVDS Back Light PWM 700 Hz Select LVDS back light PWM Frequency. Frequency 1 kHZ 2 kHZ 3 kHZ 5 kHZ 60 ECM-KBLH User’s Manual...
-
Page 61: Pch-Io Configuration
Disabled Mini PCIe WLAN Enable Mini PCIe wifi RF Kill. Enabled[Default] Quiet Serial IRQ Mode Configure Serial IRQ Mode. Continuous[Default] LPC Bus[Default] Port 80h Redirection Control where the Port 80h cycles are sent. PCIE Bus ECM-KBLH User’s Manual 61... -
Page 62: Pci Express Configuration
3.6.3.2.1.1 PCI Express Root Port 6 Item Option Description Enabled[Default], PCI Express Root Port 6 Control the PCI Express Root Port. Disabled Unknown[Default] Identify the SATA Topology if it is Default or Topology ISATA or Flex or DirectConnect or M2. 62 ECM-KBLH User’s Manual... -
Page 63: Pci Express Root Port 15
Identify the SATA Topology if it is Default or Topology ISATA or Flex or DirectConnect or M2. Sata Express Set the ASPM Level: Force L0s – Force all Disabled[Default], links to L0s State AUTO – BIOS auto ASPM configure DISABLE – Disables ASPM. ECM-KBLH User’s Manual 63... -
Page 64: Pci Express Root Port 16
Disabled[Default], Set the ASPM Level: Force L0s – Force all links to L0s State AUTO – BIOS auto ASPM configure DISABLE – Disables ASPM. L0sL1 Auto Disabled[Default], L1 Substates L1.1 PCI Express L1 Substates settings. L1.2 64 ECM-KBLH User’s Manual... -
Page 65: Sata And Rst Configuration
Identify the SATA port is connected to Solid SATA Device Type Solid State Drive State Drive or Hard Disk Drive. Unknown Identify the SATA Topology if it is Default or Technology ISATA[Default] ISATA or Flex or DirectConnect or M2. Direct Connect ECM-KBLH User’s Manual 65... - Page 66 Identify the SATA port is connected to Solid SATA Device Type Solid State Drive[Default] State Drive or Hard Disk Drive. Unknown ISATA Identify the SATA Topology if it is Default or Technology Direct Connect ISATA or Flex or DirectConnect or M2. Flex M2[Default] 66 ECM-KBLH User’s Manual...
-
Page 67: Usb Configuration
User’s Manual 3.6.3.2.3 USB Configuration Item Option Description Option to disable Compliance Mode. Default FALSE[Default], XHCI Disable Compliance Mode is FALSE to not disable Compliance Mode. TRUE Set TRUE to disable Compliance Mode. 3.6.3.2.4 HD Audio Configuration ECM-KBLH User’s Manual 67... -
Page 68: Security
Enabled = HDA will be HD Audio Enabled unconditionally enabled Auto = HDA will be enabled if Auto[Default], present, disabled otherwise. 3.6.4 Security Administrator Password Set setup Administrator Password User Password Set User Password 68 ECM-KBLH User’s Manual... -
Page 69: Secure Boot
Attempt Secure Boot User mode with enrolled Platform Key(PK) 2.CSM Enabled function is disabled. Secure Boot mode selector: Standard/Custom. In Standard Secure Boot Mode Custom mode Secure Boot Variables can be Custom[Default] configured without authentication. 3.6.4.1.1 Key Management ECM-KBLH User’s Manual 69... -
Page 70: Boot
Enables or disables boot with initialization of a Disabled[Default] Fast Boot minimal set of devices required to launch active Enabled boot option. Has no effect for BBS boot options. Boot Option #1 Set the system boot order. 70 ECM-KBLH User’s Manual... -
Page 71: Save And Exit
This option restores all BIOS settings to the factory default. This option is useful if the controller exhibits unpredictable behavior due to an incorrect or inappropriate BIOS setting. 3.6.6.4 Launch EFI Shell from filesystem device Attempts to Launch EFI Shell application (Shellx64.efi) from one of the available filesystem devices. ECM-KBLH User’s Manual 71... -
Page 72: Drivers Installation
ECM-KBLH User’s Manual 4. Drivers Installation Note: Installation procedures and screen shots in this section are for your reference and may not be exactly the same as shown on your screen. 72 ECM-KBLH User’s Manual... -
Page 73: Install Chipset Driver
Windows 10 operation system. If the warning message appears while the installation Step 3. Click Install. process, click Continue to go on. Step 4. Complete setup. Step1. Click Next. Step 2. Click Accept. ECM-KBLH User’s Manual 73... -
Page 74: Install Display Driver
Windows 10 operation system. Step 3. Click Next. Step 1. Click Next to continue installation. Step 4. Click Next. Step 2. Click Yes to accept license Step 5. Click Finish to complete setup. agreement. 74 ECM-KBLH User’s Manual... -
Page 75: Install Lan Driver
Note: The installation procedures and screen shots in this section are based on Windows 10 operation system. Step 3. Click Next. Step 1. Click Next. Step 4. Click Install. Step 2. Click Next. Step 5. Click Finish to complete setup. ECM-KBLH User’s Manual 75... -
Page 76: Install Me Driver
If the warning message appears while the installation Step 3. Click Next. process, click Continue to go on. Step1. Click Next to start installation. Step 4. Click Finish to complete setup. Step 2. Click Next. 76 ECM-KBLH User’s Manual... -
Page 77: Install Serial Io Driver
Note: The installation procedures and screen shots in this section are based on Windows 10 operation system. Step 3. Click Next. Step 1. Click Next to continue installation. Step 4. Click Next. Step 5. Complete setup. Step 2. Click Next. ECM-KBLH User’s Manual 77... -
Page 78: Install Audio Driver (For Realtek Alc233)
/Driver_Audio/Realtek/ALC233/ECM-KBLH_Audio. Note: The installation procedures and screen shots in this section are based on Windows 10 operation system. Step 1. Click Next to continue installation. Step 2. Click Finish to complete setup. 78 ECM-KBLH User’s Manual... -
Page 79: Mechanical Drawing
User’s Manual 5. Mechanical Drawing ECM-KBLH User’s Manual 79... - Page 80 ECM-KBLH User’s Manual Unit: mm 80 ECM-KBLH User’s Manual...
- Page 81 User’s Manual Unit: mm ECM-KBLH User’s Manual 81...
