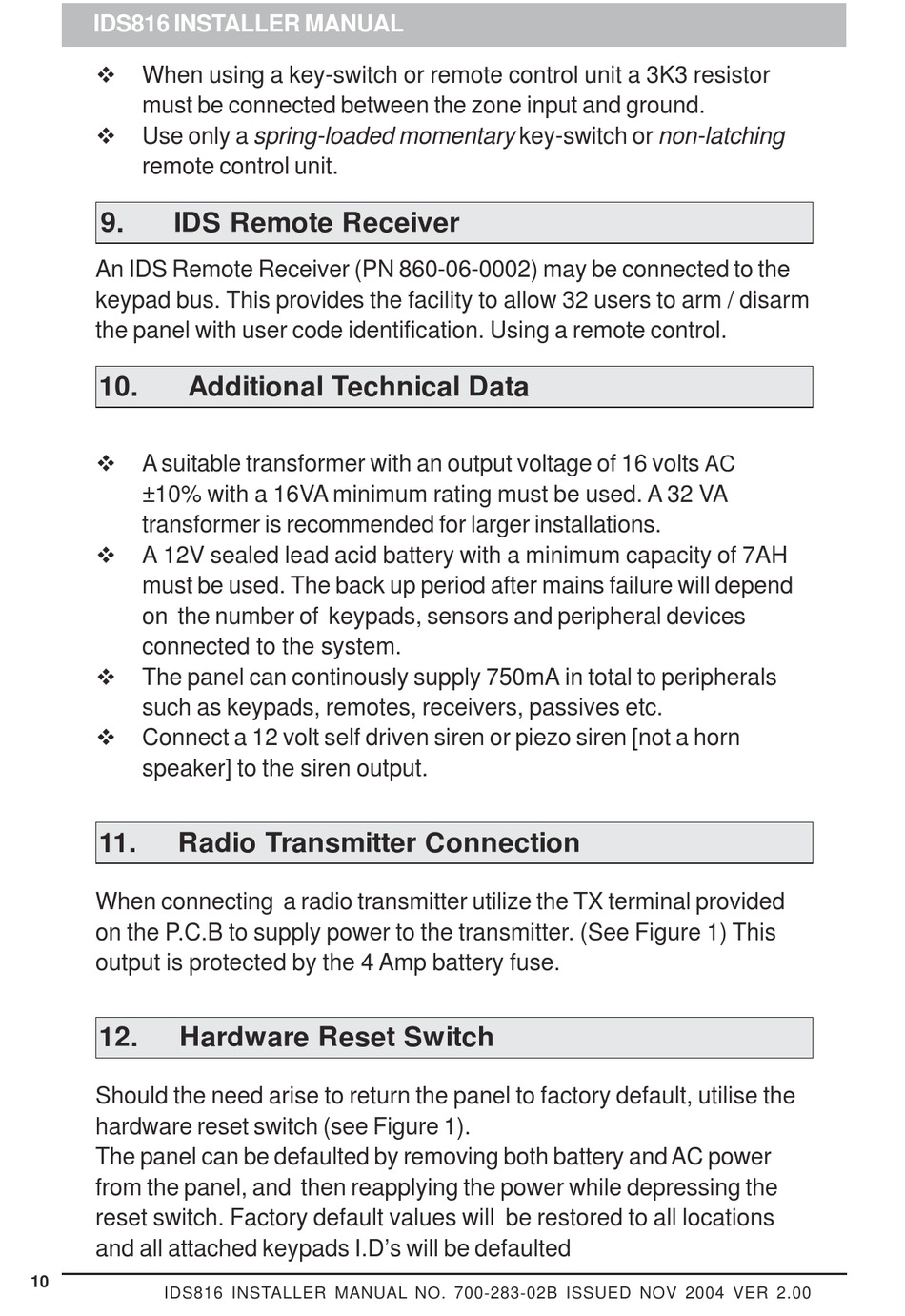

IDS816 INSTALLER MANUAL
!
When using a key-switch or remote control unit a 3K3 resistor
must be connected between the zone input and ground.
!
Use only a spring-loaded momentary key-switch or non-latching
remote control unit.
. 9 D I
An IDS Remote Receiver (PN 860-06-0002) may be connected to the
keypad bus. This provides the facility to allow 32 users to arm / disarm
the panel with user code identification. Using a remote control.
1 . 0 A
!
A suitable transformer with an output voltage of 16 volts AC
±10% with a 16VA minimum rating must be used. A 32 VA
transformer is recommended for larger installations.
!
A 12V sealed lead acid battery with a minimum capacity of 7AH
must be used. The back up period after mains failure will depend
on the number of keypads, sensors and peripheral devices
connected to the system.
!
The panel can continously supply 750mA in total to peripherals
such as keypads, remotes, receivers, passives etc.
!
Connect a 12 volt self driven siren or piezo siren [not a horn
speaker] to the siren output.
1 . 1 R a
When connecting a radio transmitter utilize the TX terminal provided
on the P.C.B to supply power to the transmitter. (See Figure 1) This
output is protected by the 4 Amp battery fuse.
1 . 2 H a
Should the need arise to return the panel to factory default, utilise the
hardware reset switch (see Figure 1).
The panel can be defaulted by removing both battery and AC power
from the panel, and then reapplying the power while depressing the
reset switch. Factory default values will be restored to all locations
and all attached keypads I.D's will be defaulted
10
IDS816 INSTALLER MANUAL NO. 700-283-02B ISSUED NOV 2004 VER 2.00
