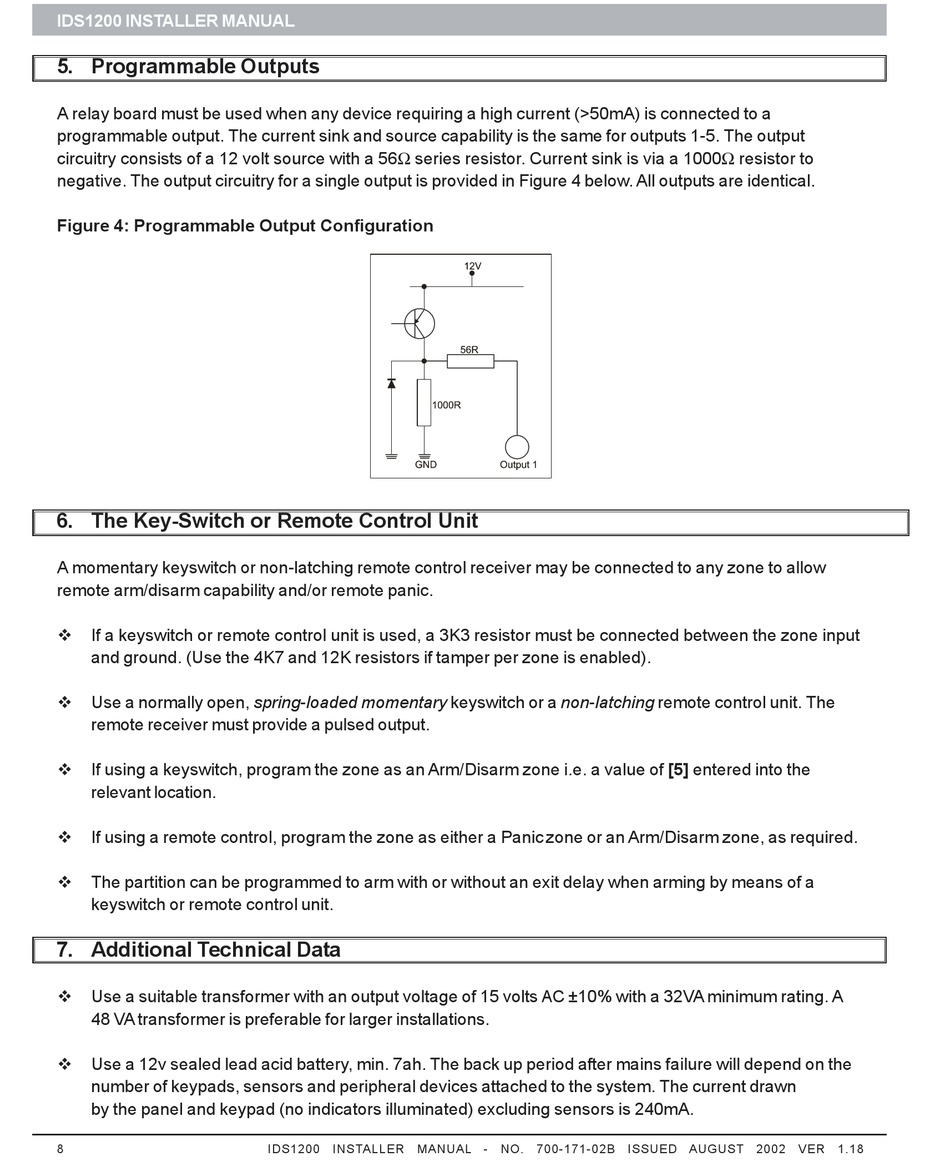

IDS1200 INSTALLER MANUAL
5. Programmable Outputs
A relay board must be used when any device requiring a high current (>50mA) is connected to a
programmable output. The current sink and source capability is the same for outputs 1-5. The output
circuitry consists of a 12 volt source with a 56Ω series resistor. Current sink is via a 1000Ω resistor to
negative. The output circuitry for a single output is provided in Figure 4 below. All outputs are identical.
Figure 4: Programmable Output Configuration
6. The Key-Switch or Remote Control Unit
A momentary keyswitch or non-latching remote control receiver may be connected to any zone to allow
remote arm/disarm capability and/or remote panic.
If a keyswitch or remote control unit is used, a 3K3 resistor must be connected between the zone input
!
and ground. (Use the 4K7 and 12K resistors if tamper per zone is enabled).
!
Use a normally open, spring-loaded momentary keyswitch or a non-latching remote control unit. The
remote receiver must provide a pulsed output.
!
If using a keyswitch, program the zone as an Arm/Disarm zone i.e. a value of [5] entered into the
relevant location.
!
If using a remote control, program the zone as either a Panic zone or an Arm/Disarm zone, as required.
!
The partition can be programmed to arm with or without an exit delay when arming by means of a
keyswitch or remote control unit.
7. Additional Technical Data
!
Use a suitable transformer with an output voltage of 15 volts
48 VA transformer is preferable for larger installations.
!
Use a 12v sealed lead acid battery, min. 7ah. The back up period after mains failure will depend on the
number of keypads, sensors and peripheral devices attached to the system. The current drawn
by the panel and keypad (no indicators illuminated) excluding sensors is 240mA.
8
IDS1200
INSTALLER
MANUAL -
±10% with a 32VA minimum rating. A
AC
NO.
700-171-02B
ISSUED AUGUST 2002
VER
1.18
