Summary of Contents for Unicum FOODBOX LIFT TOUCH

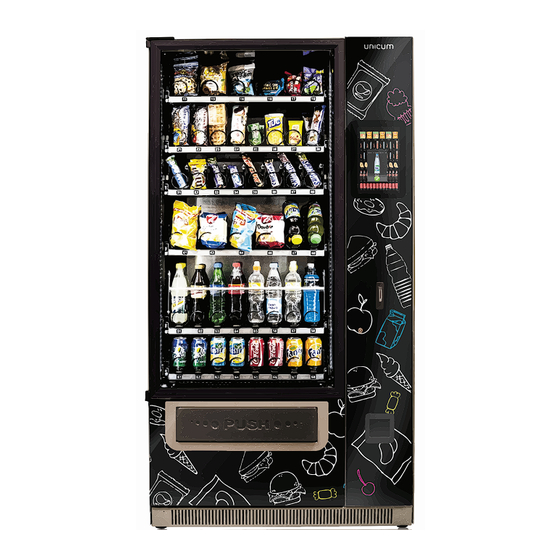

- Page 1 ТМ SNACK VENDING MACHINE models fooDbox ToUCH, fooDbox LoNG ToUCH, fooDbox LIfT ToUCH USER MANUAL Version 1.3 / December 2018...
- Page 2 ТМ FOODBOX TOUCH, FOODBOX LONG TOUCH, FOODBOX LIFT TOUCH The vending machine manufacturer: KRAFT LLC The Russian Federation 199155, Saint-Petersburg Uralskaia St. 13, lit. A Tel.: (812)449-09-91 Fax: (812)350-70-89 www.unicum.ru Original language - Russian Version 1.3 / December 2018 Page 2...
-
Page 3: Table Of Contents
ТМ FOODBOX TOUCH, FOODBOX LONG TOUCH, FOODBOX LIFT TOUCH CoNTENT 1.0 GENERAL INfoRMATIoN ..................4 2.0 SAfETY ........................6 3.0 SPECIfICATIoNS ..................... 7 4.0 VENDING MACHINE DESCRIPTIoN ............... 8 4.1 Interior ......................... 8 4.2 Control compartment ................... 9 4.3 Selling process ....................10 4.4 Vending machine components ................ -
Page 4: General Information
(snacks) and cold drinks. The Foodbox Lift Touch model uses a lift for more careful giving out of products. Vending machines use a touch screen with graphic user menu interface in the selling mode and a ser- vice menu in the vending machine servicing mode. - Page 5 ТМ FOODBOX TOUCH, FOODBOX LONG TOUCH, FOODBOX LIFT TOUCH Manufacturer’s warranty The manufacturer’s warranty during the warranty period covers all vending machine units and assemblies, except for malfunctions, arising from non-observance of current maintenance documentation requirements by the customer or due to any mechanical failures.
-
Page 6: Safety
ТМ FOODBOX TOUCH, FOODBOX LONG TOUCH, FOODBOX LIFT TOUCH 2.0 SAfETY For safe operation of the vending machine comply with the rules given below: - before starting the vending machine operation read and understand this manual; - the vending machine can be used for selling the cold drinks in plastic bottles and cans and packed snacks;... -
Page 7: Specifications
ТМ FOODBOX TOUCH, FOODBOX LONG TOUCH, FOODBOX LIFT TOUCH 3.0 SPECIfICATIoNS Vending machine Parameters foodbox Touch foodbox Long Touch foodbox Lift Touch Height, no more than 1850 mm 1850 mm 1850 mm Width, no more than 1000 mm 1280 mm... -
Page 8: Vending Machine Description
3 Control compartment Change tray (coins) 4 Touch screen Product dispensing tray 5 Slot for bills/plug 10 Door NoTE: The foodbox Lift Touch model uses a lift for more careful products giving out. Version 1.3 / December 2018 Page 8... -
Page 9: Control Compartment
ТМ FOODBOX TOUCH, FOODBOX LONG TOUCH, FOODBOX LIFT TOUCH 4.2 Control compartment figure 2 1 Printer for receipts (option) Box for coins 2 Service buttons + USB PC connector Touch screen 3 Control boards 9 Slot for bills/plug... -
Page 10: Selling Process
ТМ FOODBOX TOUCH, FOODBOX LONG TOUCH, FOODBOX LIFT TOUCH 4.3 Selling process In fig. 3 the products selling algorithm that is implemented in the vending machine is shown. Enter a credit that is required for buying a product Select a product on the touch screen... -
Page 11: Vending Machine Components
ТМ FOODBOX TOUCH, FOODBOX LONG TOUCH, FOODBOX LIFT TOUCH 4.4 Vending machine components 4.4.1 Giving out compartment Product dispensing compartment occupies the largest volume of the vending machine and is closed by a glass door, which is blocked by a slide-out panel of the control compartment. -
Page 12: Lock
ТМ FOODBOX TOUCH, FOODBOX LONG TOUCH, FOODBOX LIFT TOUCH 4.4.4 Lock The vending machine is supplied with the RIELDA lock, which can be programmed for the required key set that permits using one work key for several RIELDA locks at once, as well as easily change any lock combination for the new work key in case of old key loss, theft or breakage. -
Page 13: Installation
ТМ FOODBOX TOUCH, FOODBOX LONG TOUCH, FOODBOX LIFT TOUCH 5.0 INSTALLATIoN 5.1 Location selection When selecting a location for the installation of the vending machine take into consideration the following: - the vending machine is not intended for operation in the open air and should be installed only inside dry premises with the ambient temperature maintained in the working range (see specifications). -
Page 14: Safety Precautions
ТМ FOODBOX TOUCH, FOODBOX LONG TOUCH, FOODBOX LIFT TOUCH 5.2 Safety precautions When transporting the vending machine to the installation location use mechanical or automatic fork loader. - the vending machine should be transported in a vertical position on its own base;... -
Page 15: Electrical Connection
ТМ FOODBOX TOUCH, FOODBOX LONG TOUCH, FOODBOX LIFT TOUCH ATTENTIoN! To prevent the vending machine from overturning it’s prohibited to open the vending machine doors and pulling out the shelves until the vending machine is securely fixed on the mounting surface! 5.4 Electrical connection... -
Page 16: Vending Machine Activation
ТМ FOODBOX TOUCH, FOODBOX LONG TOUCH, FOODBOX LIFT TOUCH 5.6 Vending machine activation To activate the vending machine proceed as follows: - connect the power cords in accordance with fig. 8; - plug the power cord into an electrical outlet;... -
Page 17: Products Loading
ТМ FOODBOX TOUCH, FOODBOX LONG TOUCH, FOODBOX LIFT TOUCH 5.8 Products loading After the completion of installation and vending machine adjustment load the vending machine with products: - open the vending machine door, so it does not interfere with shelves moving-out;... -
Page 18: Cooling Unit
ТМ FOODBOX TOUCH, FOODBOX LONG TOUCH, FOODBOX LIFT TOUCH 6.0 CooLING UNIT The cooling unit performance control is executed by scanning 3 temperature sensors: - sensor No.1 - is located in the lower part of the product dispensing tray; - sensor No.2 - is located in the upper part of the product dispensing tray;... - Page 19 ТМ FOODBOX TOUCH, FOODBOX LONG TOUCH, FOODBOX LIFT TOUCH Standby In the standby mode, the cooling unit is deactivated, the evaporator fan operates in accordance with the user-defined mode, and the temperature sensors are monitored. If the temperature at sensor No.1 exceeds the value, specified in the (Max. temperature) menu item, and the defrosting time is expired - the unit switches to COOLING mode.
-
Page 20: Control
ТМ FOODBOX TOUCH, FOODBOX LONG TOUCH, FOODBOX LIFT TOUCH 7.0 CoNTRoL 7.1 Controller board Controlling the operation of vending machine assemblies and equipment is executed by the control board (hereinafter – controller), which is located in the control section (fig. 2 pos. З). The vending machine can operate in two modes in accordance with the embedded software algorithm - the control program (hereinafter –... - Page 21 ТМ FOODBOX TOUCH, FOODBOX LONG TOUCH, FOODBOX LIFT TOUCH 7. The connector is not used 8. Modem power and MDB payment system connector 9. Controller board power connector (~24V) 10. The connector is not used 11. Power board connector (CAN-BUS) 12.
-
Page 22: Service Buttons
3. Software updating: To update the vending machine software visit the manufacturer’s web-site http://www.unicum.ru and in the DOCUMENTATION section select on the opened page the necessary model of the vending machine for updating the software. Then on the opened page select the CON- TROLLER FIRMWARE section, following which the file downloading to the computer starts. -
Page 23: User Menu
ТМ FOODBOX TOUCH, FOODBOX LONG TOUCH, FOODBOX LIFT TOUCH 8.0 USER MENU User menu description In the sales mode, the vending machine touch screen displays the user menu (see below). figure 13 1. Product selection Here the vending machine planogram (products sold by the vending machine) - product image and price. - Page 24 ТМ FOODBOX TOUCH, FOODBOX LONG TOUCH, FOODBOX LIFT TOUCH Product selection To select the desired program, credit the required amount and touch the product image. Then on the touch screen, the window with the selected product image appears (fig. 14).
-
Page 25: Service Menu - Menu Technician
ТМ FOODBOX TOUCH, FOODBOX LONG TOUCH, FOODBOX LIFT TOUCH 9.0 SERVICE MENU - MENU TECHNICIAN The vending machine servicing is realized in the SERVICE MODE. Service engineer/technician menu: provides the access to all controller software functionality. To enter the menu pull out the vending machine control compartment, press and hold till the audible signal sounds the Menu technician service button (see section 7.2). - Page 26 ТМ FOODBOX TOUCH, FOODBOX LONG TOUCH, FOODBOX LIFT TOUCH At the bottom of the menu page the following touch buttons are located: - Exit Menu - exit the menu to navigate to the user interface; - Reset Errors - reset the active errors;...
-
Page 27: System
ТМ FOODBOX TOUCH, FOODBOX LONG TOUCH, FOODBOX LIFT TOUCH 9.1 System 9.1.1 General figure 16 - System [General] SETTING DESCRIPTIoN VALUE Language Selecting the display language of the vending machine interface. Currency Selecting of currency with which the vending ma- chine will operate. -
Page 28: Security
ТМ FOODBOX TOUCH, FOODBOX LONG TOUCH, FOODBOX LIFT TOUCH 9.1.2 Security figure 17 - System [Security] SETTING DESCRIPTIoN VALUE Technician password Entering/editing the password for accessing the 8 digits, 0 ... 9 menu technician. When entering the password it «0» - not specified will be requested when entering the menu tech- nician. -
Page 29: Franchising
ТМ FOODBOX TOUCH, FOODBOX LONG TOUCH, FOODBOX LIFT TOUCH 9.1.3 franchising figure 18 - System [franchising] SETTING DESCRIPTIoN VALUE franchising expiration The date, after the expiry of which the vending machine stops operating until the renewal of a lease. The setting is actual only when the fran- chising code is input. -
Page 30: Resets
ТМ FOODBOX TOUCH, FOODBOX LONG TOUCH, FOODBOX LIFT TOUCH 9.1.4 Resets figure 19 - System [Resets] bUTToN DESCRIPTIoN Reset Audit Reset of the audit temporary statistics. factory Defaults Reset of all vending machine settings to factory defaults. full Reset Reset of all vending machine settings and values to factory defaults. -
Page 31: Power
ТМ FOODBOX TOUCH, FOODBOX LONG TOUCH, FOODBOX LIFT TOUCH 9.1.5 Power figure 20 - System [Power] SETTING DESCRIPTIoN VALUE Power saving Energy saving mode activation/deactivation. Disabled Enabled Start time The setting of vending machine automatic switch- Time input ing to energy saving mode. -
Page 32: Eva-Dts
ТМ FOODBOX TOUCH, FOODBOX LONG TOUCH, FOODBOX LIFT TOUCH 9.1.6 EVA-DTS figure 21 - System [EVA-DTS] SETTING DESCRIPTIoN VALUE Swap machine IDs Permits swapping the fields (the vending machine Disabled / number is replaced by the Main Board serial num- Enabled ber, and the Main Board serial number is replaced by the vending machine number). -
Page 33: Modem
ТМ FOODBOX TOUCH, FOODBOX LONG TOUCH, FOODBOX LIFT TOUCH 9.1.7 Modem figure 22 - System [Modem] Version 1.3 / December 2018 Page 33... - Page 34 ТМ FOODBOX TOUCH, FOODBOX LONG TOUCH, FOODBOX LIFT TOUCH SETTING DESCRIPTIoN VALUE State ENAbLED - if the modem is connected. Disabled / Enabled SMS code Sets the 8-digit code, by which the server can Enter an 8-digit string make the first connection via SMS (manual con- only (strictly) nection).
-
Page 35: Ethernet
ТМ FOODBOX TOUCH, FOODBOX LONG TOUCH, FOODBOX LIFT TOUCH 9.1.8 Ethernet figure 23 - System [Ethernet] SETTING DESCRIPTIoN VALUE Server IP address Specifies the address of the server that is used 4 numbers 0...255 by an external card system (if it’s permitted), on which the credits of all the cards are stored. -
Page 36: About
ТМ FOODBOX TOUCH, FOODBOX LONG TOUCH, FOODBOX LIFT TOUCH 9.1.9 About figure 24 - System [About] SETTING DESCRIPTIoN VALUE Application version The vending machine software version. mbComm version mbComm version (the application component, responsible for communication with the controller board (Main Board). -
Page 37: Snack
DESCRIPTIoN Selection Position The tested cell number entry. For the machine FoodBox Lift Touch programmable position of the lift Lift Position relative to the upper sensor in millimetres (“0” is the top position and the more number, the below will be the lift, the centimetre is specified by value 10). -
Page 38: Setup
ТМ FOODBOX TOUCH, FOODBOX LONG TOUCH, FOODBOX LIFT TOUCH 9.2.2 Setup figure 26 - Snack [Setup] Version 1.3 / December 2018 Page 38... - Page 39 ТМ FOODBOX TOUCH, FOODBOX LONG TOUCH, FOODBOX LIFT TOUCH SETTING DESCRIPTIoN VALUE optosensor Activation/deactivation of photo-sensors, register- Enabled / ing the falling product. This parameter should be Disabled in the Disabled state if the vending machine has no photo-sensors. If the photo-sensors are deacti-...
- Page 40 ТМ FOODBOX TOUCH, FOODBOX LONG TOUCH, FOODBOX LIFT TOUCH SETTING DESCRIPTIoN VALUE on total vend failure limit The vending machine actions when reaching the Machine block number of faults in succession, specified in the (STOP SALES) on total vend failure limit setting.
- Page 41 ТМ FOODBOX TOUCH, FOODBOX LONG TOUCH, FOODBOX LIFT TOUCH SETTING DESCRIPTIoN VALUE Sensor 1...3 min temp. The setting of the temperature range, going be- yond of which is considered an error. When spec- ifying identical values for minimum and maximum Sensor 1...3 max temp.
-
Page 42: Thermal Setup
ТМ FOODBOX TOUCH, FOODBOX LONG TOUCH, FOODBOX LIFT TOUCH 9.2.3 Thermal setup Thermal setup figure 27 - SETTING DESCRIPTIoN VALUE Defrost period, hour The setting of the cooling unit defrosting period in hours. 0...255 Defrost duration, minute The setting of the cooling unit defrosting duration in min- 0...255... - Page 43 ТМ FOODBOX TOUCH, FOODBOX LONG TOUCH, FOODBOX LIFT TOUCH SETTING DESCRIPTIoN VALUE Min box temperature (sensor 1), °С This setting is effective only if the bY EVAPoRAToR AND Input value box TEMPERATURE mode is selected. The setting of the minimum temperature at the bottom of the product storage bay.
- Page 44 ТМ FOODBOX TOUCH, FOODBOX LONG TOUCH, FOODBOX LIFT TOUCH SETTING DESCRIPTIoN VALUE Min outdoor control temperature, °С Setting the minimum operating temperature for street per- Input value formance automata. SET MIN – specifies the temperature, at which the control compartment heating is activated.
-
Page 45: Payment Systems
ТМ FOODBOX TOUCH, FOODBOX LONG TOUCH, FOODBOX LIFT TOUCH 9.3 Payment Systems 9.3.1 Changer After choosing this menu item on the vending machine screen the page with the information about the coin drawer is displayed. Here you can view the information about the coin receptacle and conduct manual coin loading and unloading. - Page 46 ТМ FOODBOX TOUCH, FOODBOX LONG TOUCH, FOODBOX LIFT TOUCH Before loading the coin drawer navigate to this menu item. Then conduct loading coins via the coin slot, located at the vending machine door. In the left lower corner the coin drawer statistic is shown.
-
Page 47: General Setup
ТМ FOODBOX TOUCH, FOODBOX LONG TOUCH, FOODBOX LIFT TOUCH 9.3.2 General Setup General Setup figure 29 - SETTING DESCRIPTIoN VALUE Protocol Selecting the protocol for the system of payment None / MDB / Executive MDb Changer Connection / disconnection of the coin acceptor Yes / No MDb bill Acceptor Connection / disconnection of the Bill Acceptor... -
Page 48: Change Setup
ТМ FOODBOX TOUCH, FOODBOX LONG TOUCH, FOODBOX LIFT TOUCH 9.3.3 Change Setup Change Setup figure 30 - SETTING DESCRIPTIoN VALUE Accept in ‘No change’ The selection of the vending machine receiving money Everythning / algorithm upon the occurrence of the NO CHANGE event Tubes only / EVERYTHNING - receiving money without restrictions;... - Page 49 ТМ FOODBOX TOUCH, FOODBOX LONG TOUCH, FOODBOX LIFT TOUCH SETTING DESCRIPTIoN VALUE Change paymout algorithm Selection of either change giving out algorithm: Standart STANDARD (BY COIN VALUE) - the payment is exe- (by coin value) cuted starting from the larger denomination, then down- wards.
-
Page 50: Errors
ТМ FOODBOX TOUCH, FOODBOX LONG TOUCH, FOODBOX LIFT TOUCH 9.4 Errors In this menu item, the information about errors is available: error names, time and date of recording, number of repeats and actuality. The actual errors are highlighted in red, not actual - in green. - Page 51 ТМ FOODBOX TOUCH, FOODBOX LONG TOUCH, FOODBOX LIFT TOUCH Device (unit), where the error was detected Amount of Error name repetitions Time and date of the error occurrence Version 1.3 / December 2018 Page 51...
-
Page 52: Service Menu - Operator Menu
ТМ FOODBOX TOUCH, FOODBOX LONG TOUCH, FOODBOX LIFT TOUCH 10.0 SERVICE MENU - oPERAToR MENU The vending machine servicing is realized in the SERVICE MODE. operator menu: provides the access to the vending machine functionality during periodic maintenance, such as the event log, information about the equipment operation and access to setting up the information about the drinks. - Page 53 3. Association of images and products is implemented on the Article ID (product code) level. The product code for the selected cell in the vending machine planogram is specified in a special CONFIGURATOR program (the program operating instruction is posted at the web-site: www.unicum.ru). figure 32 - Configurator [Article ID] Article ID (product code) is specified in the image file name in the 00000000.png format.
-
Page 54: Changing The Configuration Of Shelves
ТМ FOODBOX TOUCH, FOODBOX LONG TOUCH, FOODBOX LIFT TOUCH 12.0 CHANGING THE CoNfIGURATIoN of SHELVES All operations described in this section are carried out with the vending machine disconnected from the mains! Pull out the shelf and free it from any products. - Page 55 ТМ FOODBOX TOUCH, FOODBOX LONG TOUCH, FOODBOX LIFT TOUCH Install the required spiral on the holder (fig. 36) and turn it until the spiral end clicking position. After the spiral replacement put the shelf in place and connect the motors.
- Page 56 ТМ FOODBOX TOUCH, FOODBOX LONG TOUCH, FOODBOX LIFT TOUCH Note: when using narrow products the use of additional limiters is recommended (fig. 39). figure 39 - Limiter Guides When using canned of bottled products it’s recommended to purchase a set of guides and a set of lim- iters for bottles, and to carry out the following operations (fig.
- Page 57 ТМ FOODBOX TOUCH, FOODBOX LONG TOUCH, FOODBOX LIFT TOUCH Pusher To improve the effect of pushing out the product by a turning spiral and to decrease the possibility of its falling the possibility of installing the special pusher (fig. 41) on the front part of the spiral is provided.
- Page 58 ТМ FOODBOX TOUCH, FOODBOX LONG TOUCH, FOODBOX LIFT TOUCH The vending machine has a 7-th connector for connecting the 7-th shelf motors. The connector is located under the lower shelf, attached by cable binders on the right wall of the dispensing compartment (fig.
-
Page 59: Maintenance
ТМ FOODBOX TOUCH, FOODBOX LONG TOUCH, FOODBOX LIFT TOUCH 13.0 MAINTENANCE Safety measures When performing maintenance observe safety precautions outlined in previous sections. Any maintenance operations should be conducted only with vending machine power turned off and the power plug disconnected from the mains socket.
