VS-66UHD Quick Start Guide
This guide helps you install and use your VS-66UHD for the first time.
Go to
upgrades are available.
Scan for full manual
Step 1: Check what's in the box

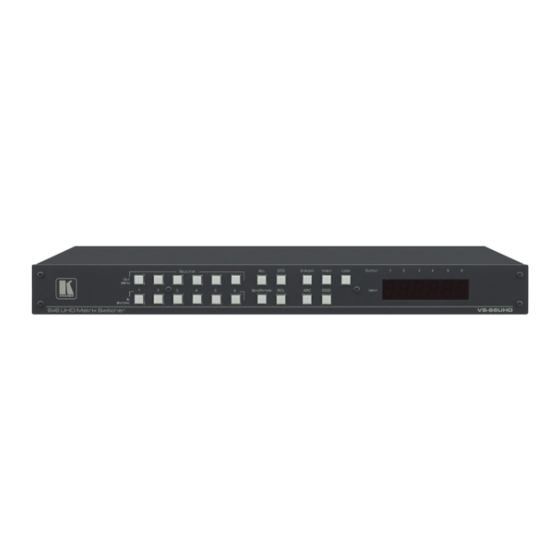

VS-66UHD 6x6 UHD Matrix Switcher
1 Power cord

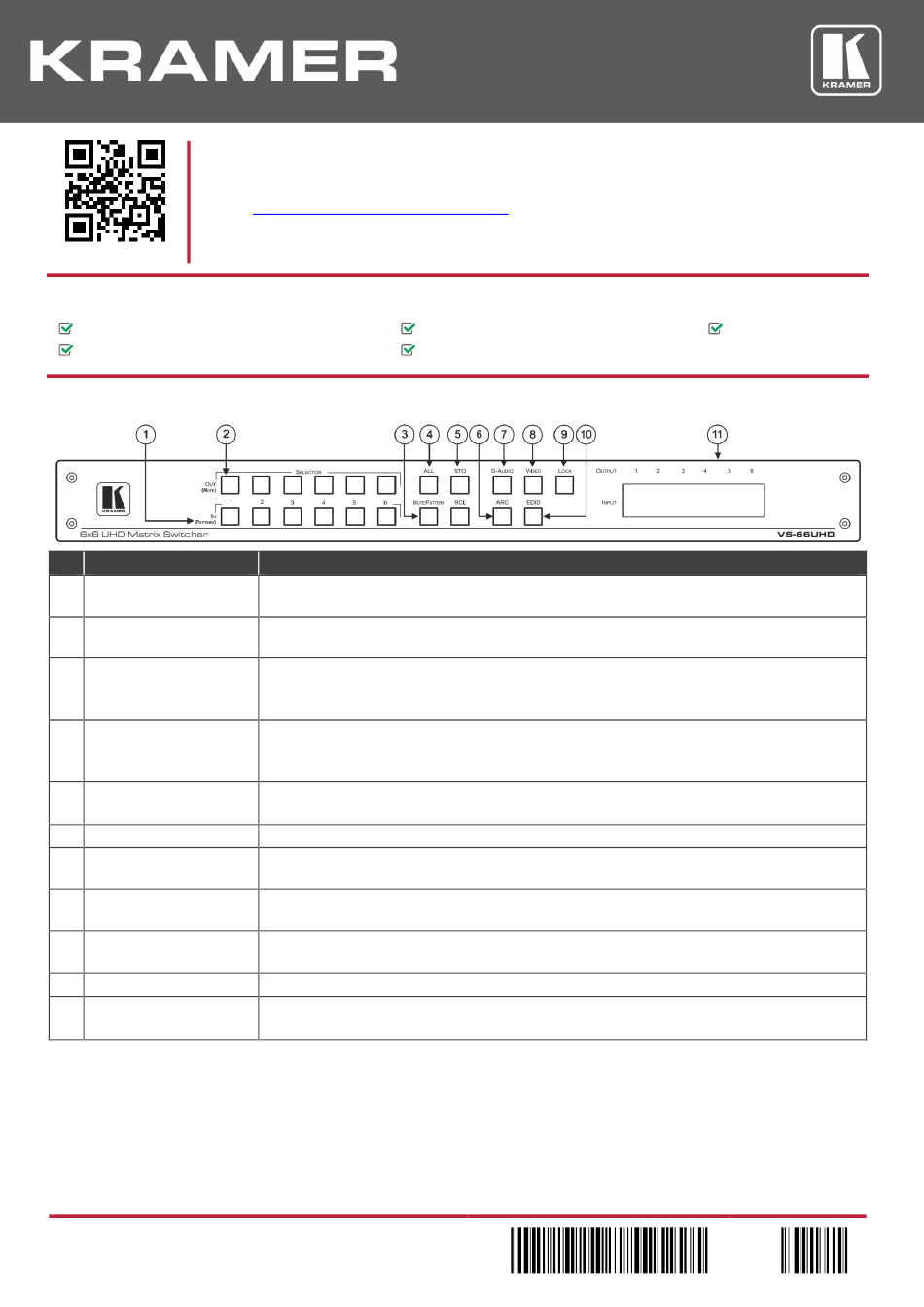

Step 2: Get to know your VS-66UHD
# Feature
1 IN (PATTERN)
SELECTOR Buttons
2 OUT (MUTE) SELECTOR
Buttons
3 MUTE/PATTERN Button
4 ALL Button
5 STO and RCL Buttons
6 ARC
7 D-AUDIO Button
8 VIDEO Button
9 LOCK Button
10 EDID Button
11 OUTPUT/INPUT
7-segment LED Display
VS-66UHD Quick Start (P/N: 2900-300882QS REV 1)
www.kramerav.com/downloads/VS-66UHD
Function
Press to select the input (1 to 6) to switch after selecting an output (also used for storing machine
setups in the STO-RCL modes and for selecting a pattern in the Pattern mode).
Press to select an output (1 to 6) to which the input is routed. Also used for storing machine presets.
Press to view the current pattern status and select the output/s to which a pattern is routed.
Press to mute audio or video on a selected output when D-AUDIO and/or VIDEO buttons are
pressed (lit).
Press to perform an action on all outputs (for example setting Mute mode, Pattern mode and so on).
For switching, press ALL and then a specific IN button to route the selected input to all outputs. For
example, press ALL and then IN 2 to route input 2 to all the outputs.
Press STO to store the current switching setting to a preset button.
Press RCL to recall the switching setting from a preset button.
For setting ARC mode on the inputs (see Step 6).
Press to enable digital audio routing. When pressed together with VIDEO, the digital audio is routed
together with the video signal.
Press to select video inputs. When pressed together with D-AUDIO, video is switched together with
audio.
Press and hold to toggle between locking and releasing the front panel buttons.
Press to save the following setups: HDCP (On/Off), ARC, Fast Switch and Switch mode.
For setting the EDID on the inputs (see Step 6).
Displays the selected inputs switched to the outputs (marked above each input).
to download the latest user manual and check if firmware
