Summary of Contents for ADJ Color Stand LED
- Page 1 Color Stand LED user manual...
- Page 2 ©2018 ADJ PRODUCTS LLC all rights reserved. Information, specifications, diagrams, images, and instructions herein are subject to change without notice. ADJ logo and identifying product names and numbers herein are trademarks of ADJ PRODUCTS LLC. Copyright protection claimed includes all forms and matters of copyrightable materials and information now allowed by statutory or judicial law or hereinafter granted.
- Page 3 11/11/18 Initial release. FCC STATEMENT This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
-
Page 4: Table Of Contents
C O N T E N T S General Information Limited Warranty (USA Only) Safety Guidelines Maintenance Guidelines Overview Installation Instructions Remote Control Trouble Shooting Tips Frequently Asked Questions Technical Specifications... -
Page 5: General Information
Items returned without a R.A. number clearly marked on the outside of the package will be refused and returned at customer’s expense. You may obtain a R.A. number by contacting customer support. CUSTOMER SUPPORT Contact ADJ Service for any product related service and support needs. Please visit forums.adj.com with questions, comments or suggestions. -
Page 6: Limited Warranty (Usa Only)
No accessories should be shipped with the product. If any accessories are shipped with the product, ADJ Products, LLC shall have no liability whatsoever for loss of or damage to any such accessories, or for the safe return thereof. - Page 7 To guarantee a smooth operation, it is important to follow all instructions and guidelines in this manual. ADJ PRODUCTS LLC is not responsible for injury and/or damages resulting from the misuse of these devices due to the disregard of the information printed in this manual. Only qualified and/or certified personnel should perform installation of these devices and only the original rigging parts included with these devices should be used for installation.
- Page 8 TIGHTEN EACH KNOB AND BOLT SECURELY! NEVER LOOK DIRECTLY INTO THE LIGHT SOURCE! RETINA INJURY RISK - MAY INDUCE BLINDNESS! SENSITIVE PERSONS MAY SUFFER AN EPILEPTIC SHOCK!
- Page 9 S A F E T Y I N S T R U C T I O N S A N D G U I D E L I N E S DO NOT position stand close to any FLAMMABLE MATERIALS while operating. DO NOT attempt installation and/or operation of stand without knowledge how to do so.
-
Page 10: Maintenance Guidelines
Regular inspections are recommended to insure proper function and extended life. There are no user serviceable parts inside these devices, please refer all other service issues to an authorized ADJ service technician. Should you need any spare parts, please order genuine parts from your local ADJ dealer. -
Page 12: Overview

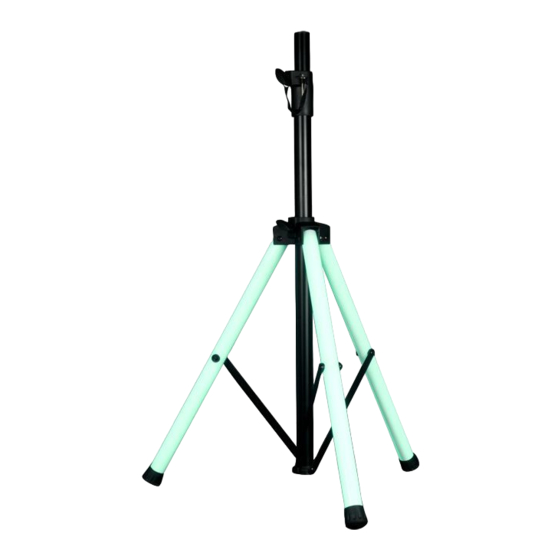

O V E R V I E W INCLUDED ITEMS (1) Color Stand LED (1) RF Remote (1) Power Supply 1. Safety Pin 5. Knob A 8. Center Post 2. Leg 6. Lower Post 9. RF Remote 3. Stay 7. Knob B 10. -
Page 13: Installation Instructions
I N S T A L L A T I O N I N S T R U C T I O N S FLAMMABLE MATERIAL WARNING Keep devices minimum 5.0 feet (1.5m) away from flammable materials and/or pyrotechnics. ELECTRICAL CONNECTIONS A qualified electrician should be used for all electrical connections and/or installations. - Page 14 I N S T A L L A T I O N (continued) SETUP Loosen Knob A by turning it counter clockwise. Spread the legs by pulling up on the lower post until the stays extend horizontally. Loosen Knob B by turning it counter clockwise. Extend the center post to the desired height and insert the safety pin through the stopper holes in the center post.
- Page 15 MOUNTING THE SPEAKER WITHOUT A BRACKET If the speaker (sold separately) has a pole mount socket located on the bottom of the speaker, place the speaker on top of the stand by lowering the speaker onto the center post. Ensure that center post fits securely into pole mount socket.
- Page 16 The Color Stand LED has a 12V, 3A power supply included. To connect the power, connect the power supply to the adapter at the mid section of the stand (see photo below).
-
Page 17: Remote Control
R E M O T E C O N T R O L PAIRING: The original remote that comes in the box is already paired to the unit. In the event that the remote is not paired with the unit, or if pairing to an additional unit, follow the steps below: 1) Unplug the power to the main unit and reconnect the power after ten seconds. -
Page 18: Trouble Shooting Tips
The maximum recommended height is 73.68 inches (1,871.5 mm). 5. Are additional stands available? Yes. A variety of stands and accessories are available at www.adj.com. O P T I O N A L A C C E S S O R I E S... -
Page 19: Technical Specifications
T E C H N I C A L S P E C I F I C A T I O N S 0Total Height Range: 43.2 inches (1,097.3 mm) to 73.68 inches (1,871.5 mm) Includes: Color Stand LED, IR remote and 12V power supply Loa0d Capacity: 60 lbs. (27.2 kg) - Page 20 Specifications subject to change without any prior written notice.
