Discovery Telecom DTT PRI GSM Ingate User Manual page 57

Q.: How can I check my Multi -Cell's firmware?
A.: Connect to the Multi-Cell, using the PRI Management Application. Go to the "Debug" screen.
Check the "Enable Debug" check box; uncheck the " Enable filter" checkbox. At the field, near the
"SEND" button, enter R_SID11 and press enter.
Two rows will be the feedback. At the same field enter R_SYS and press enter. One row of
feedback will be shown. Uncheck the "Enable Debug" checkbox. You should get something like

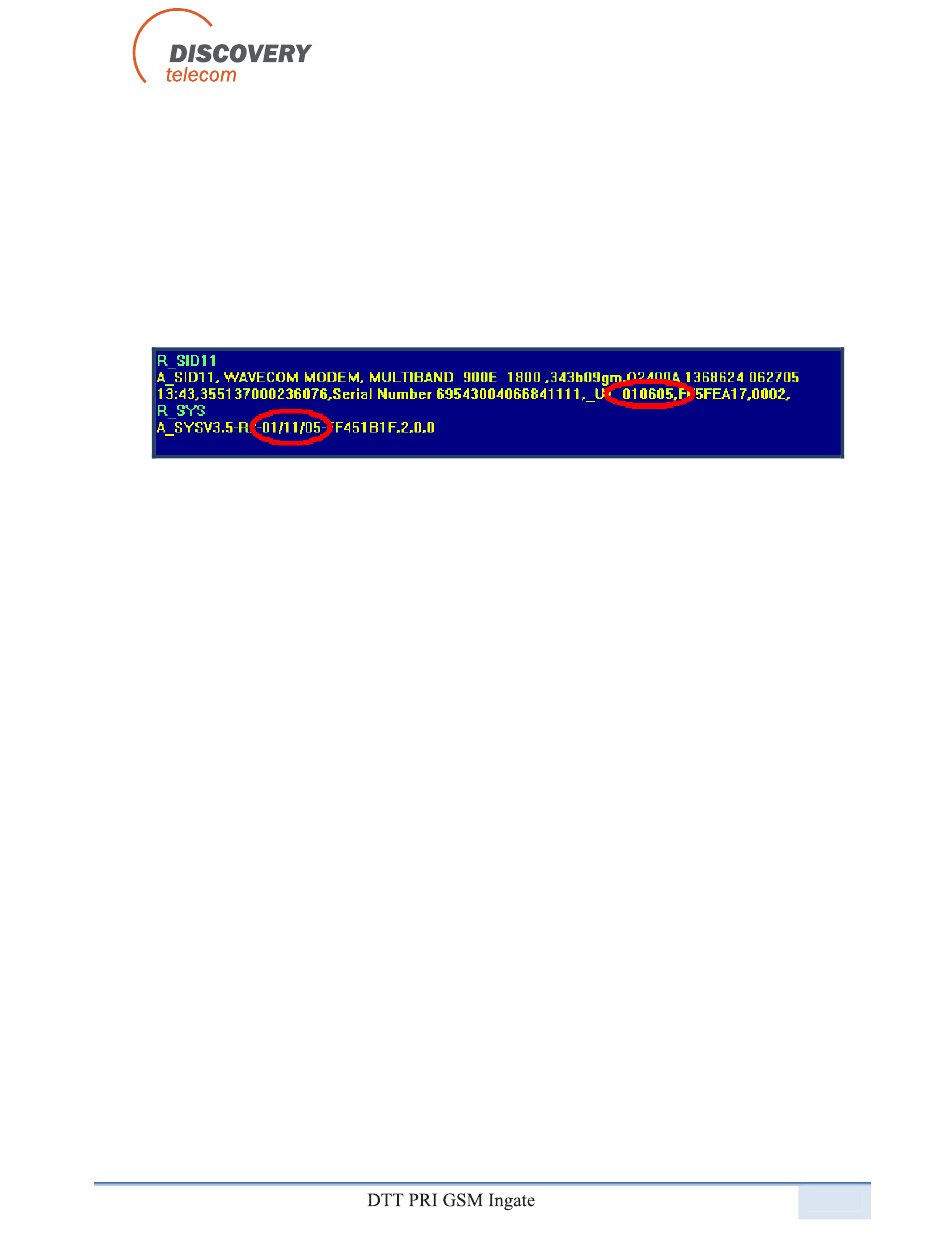

the following text message:
The first circled value is the slave' s firmware version the second value is the master' s firmware
version.
Q.: I have disconnected calls from the GSM with cause number 50, what is the reason for
that?
A.: In the PRI pc software, in SIM setting the option "CLIR Hide" is chosen or the "Predial" field
has the digits to hide the called number. If the SIM does not support this option then the operator
will block the call. You should choose "By network" and make sure the field "Predial" is empty.
57 / 54
