Chapter 6.2: Configuration - B-Channels, Ports and Prefixes

This chapter explains how to assign B -channels to in-house phones, allocation of calls to Multi-Cell
Ports, Prefixes, Access to GSM and Access to E1.

Chapter 6.2.1: Assigning Ports and Defining Prefixes

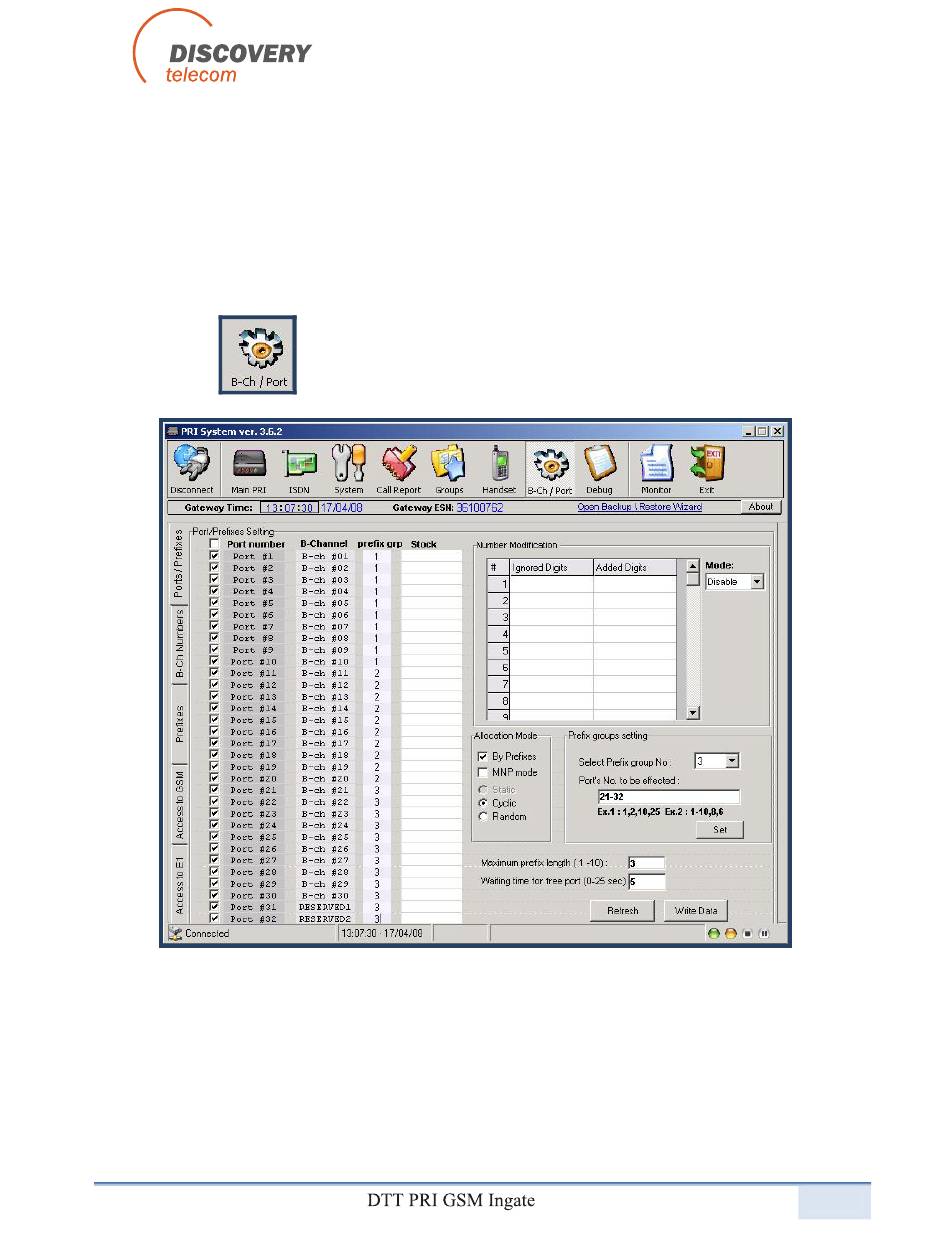

1. Press
2. Enable or disable ports in "port n umber" column by checking or un checking the boxes next
to the ports.
3. When using prefixes, enter group number that y ou assign to the port, in "prefix grp" column
(the entire procedure for using prefixes will be explained on page 38).
to open the B-Channel/prefixes window.
35 / 54
