Chapter 3.2: Management Via Ethernet Interface Connection - Discovery Telecom DTT PRI GSM Ingate User Manual

Chapter 3.2: Management via Ethernet interface Connection

TCP/IP Internet connection enabled via the "NET" socket (RJ -45) on the Multi-Cell PRI Gateway.
Refer to "Chapter 1: Connecting the Cables" for the cab le connection task.
For TCP/IP settings of the Multi -Cell PRI Gateway refer to " Chapter 10: TCP/IP Setting".

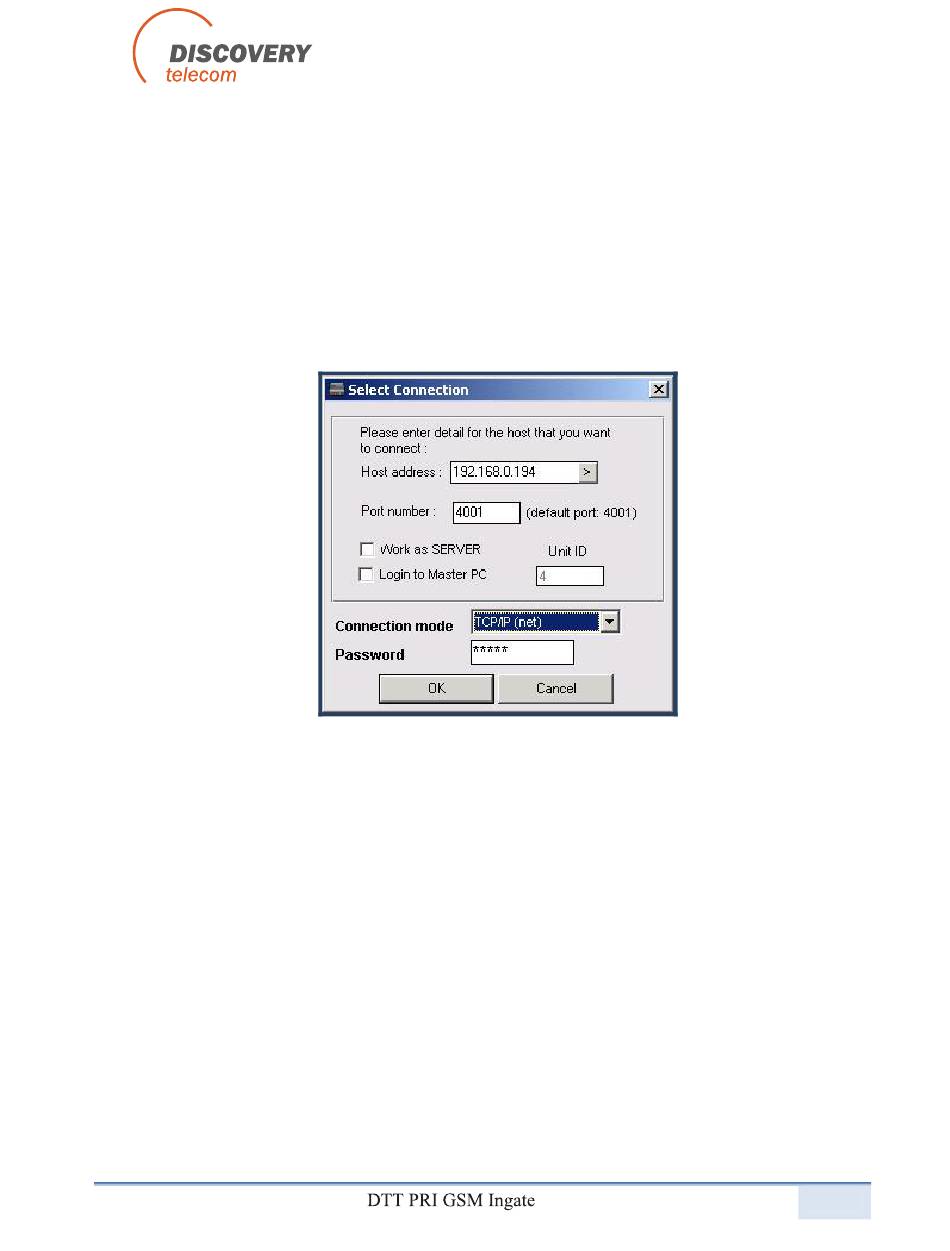

1. If you are using Internet connection for management, select TCP/IP in the "Connection
mode".
In the top frame, enter the Host address ( the IP of the Multi-Cell that you set). Enter 4001 as the IP
Port number to be used for the Manager Communication session and the default Password: admin.
The check boxes: "Work as SERVER" and "Login to Master PC" should be unchecked, (they are
optional).
20 / 54
