Discovery Telecom DTT PRI GSM Ingate User Manual page 33

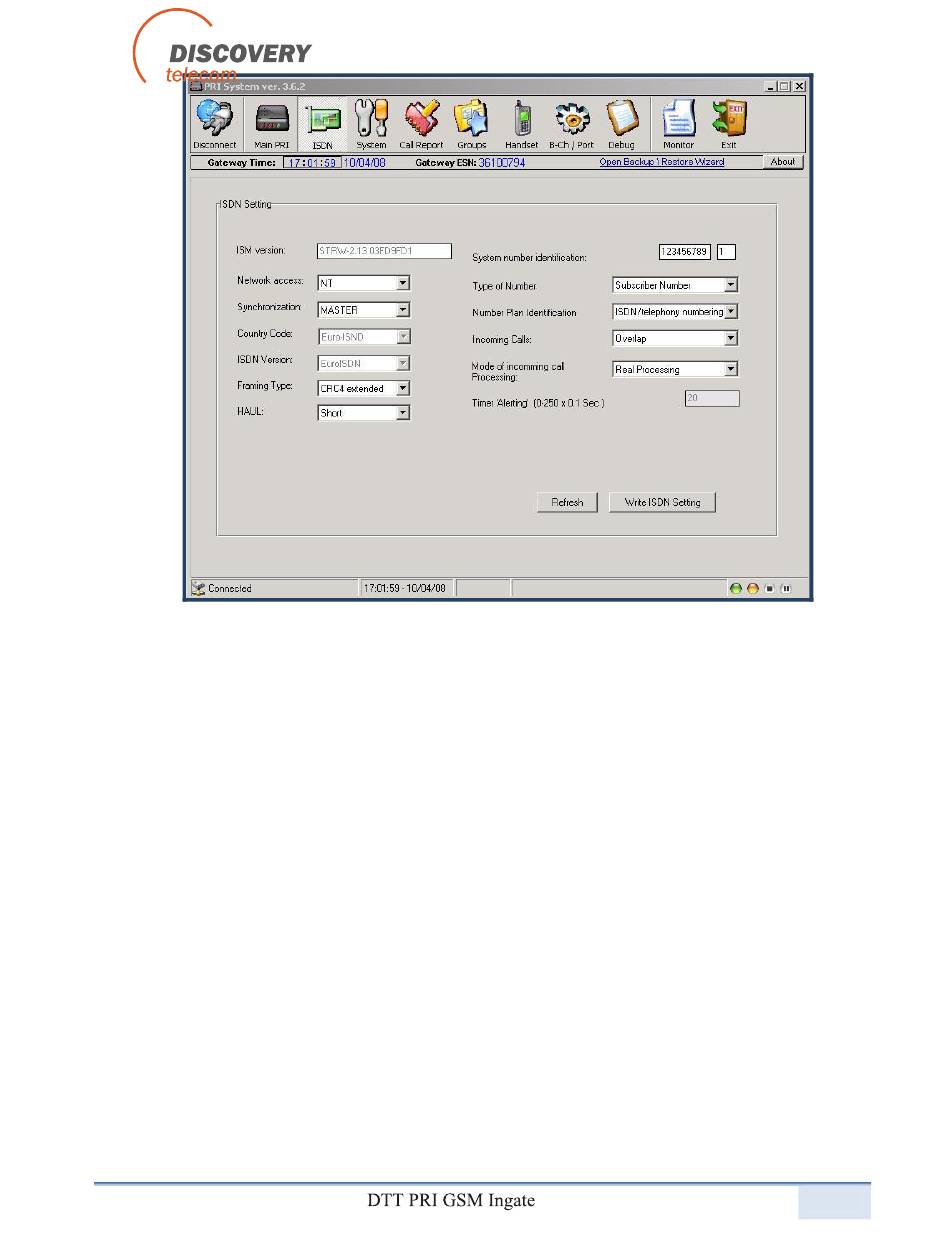

1. Set Network access as NT, (set the switching unit as TE).
2. Define the Master/Slave status in the Sync hronization box. It is preferable to define the
Multi-Cell unit as the Master, and the switching unit as the slave.
3. In the Incoming Calls box, select the interface of incoming calls (from the swit ching unit to
the ISDN card), "Overlap" (pulse) or "In Block" (packet) in conformity with the setting in
the switching unit.
4. In the Type of Number box, select the type of number (TON) of calls (from the ISDN card
to the switching unit), as defined in the switching unit.
5. The protocol of numbers (from the ISDN car d to the switching unit) is set at "Number Plan
Identification" (NPI). Set this parameter as defined in the switching unit.
6. Enter your Local Number and Local Sub address in the "System number identification" .
33 / 54
