Chapter 5: Configuration - Port and SIM

This chapter details port dial settings, as well as time table and channel lock for SIMs.

Chapter 5.1: Define Dial Settings for Each Port

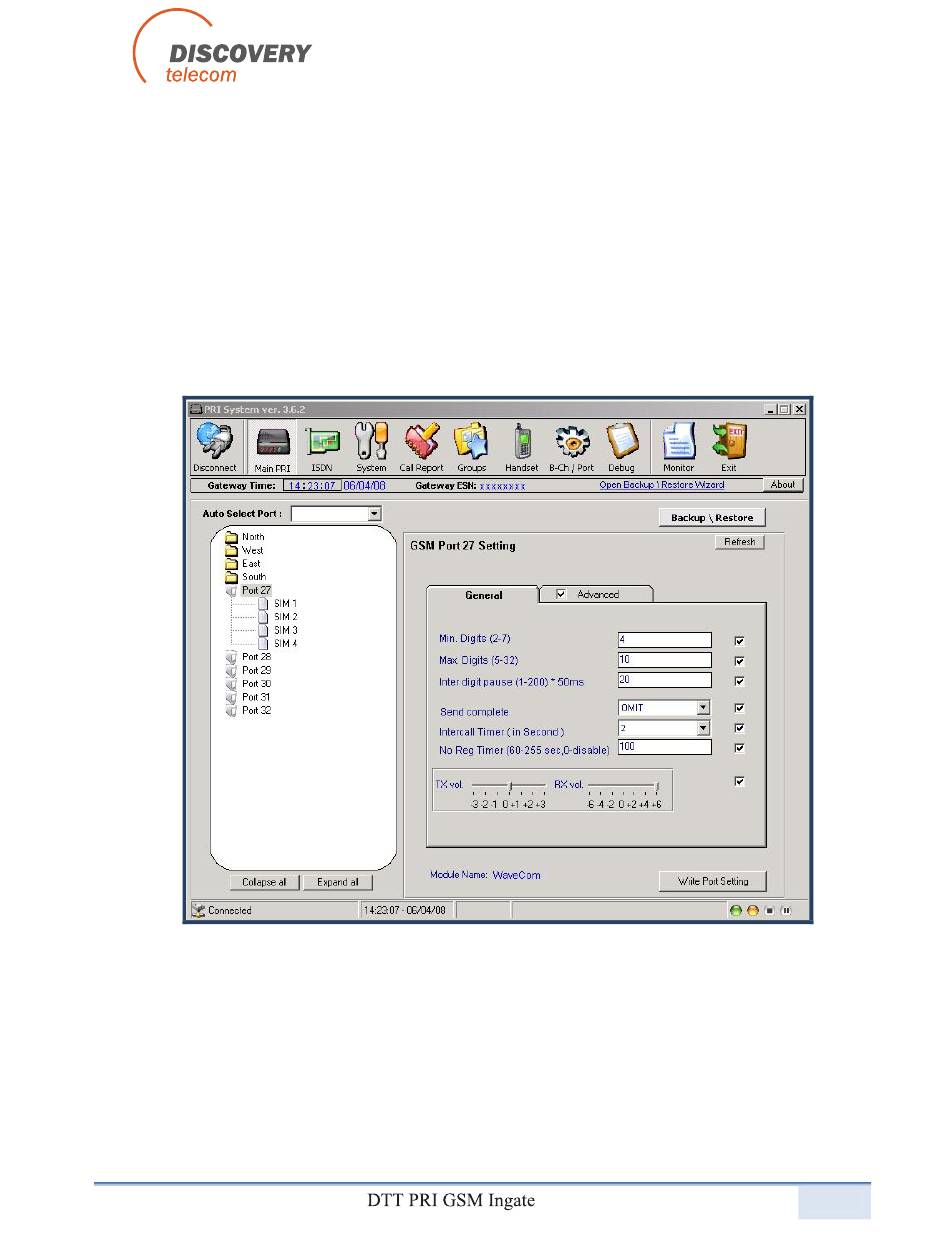

Press [Main PRI] button to define dial settings for each port. The Port Setting window opens. To
define port dial settings, click a port and proceed as described on the following pages.
Select the mode in which telephone numbers are dispatched to the c ellular network. To dispatch
phone numbers manually, in the "Send Complete" list, select HASH mode. In this mode, after the
user has dialed all digits of a phone number, press es "#" to send the phone number.
