Summary of Contents for Pfeiffer Vacuum TPH 2201

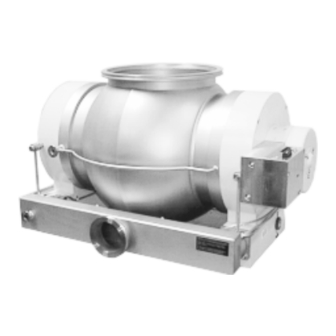

- Page 1 Operating Instructions TPH 2201 / TPU 2201 Turbomolecular Pumps With Electronic Drive Units PM 800 567 BE/C (0008)
-
Page 2: Table Of Contents
Index Page Page 1. Safety Instructions ........3 4.10. Operations With The Remote Control Unit....15 Venting Release (Optional)..........15 1.1. For Your Orientation............3 Motor, Turbopump ............15 1.2. Pictogram Definitions............3 Pumping Station .............. 15 2. Understanding The Pumps Heating/Reset .............. -
Page 3: Safety Instructions
1. Safety Instructions Read and follow all instructions in this manual. 1.1. For Your Orientation Inform yourself regarding: – Hazards which can be caused by the pump; Instruction in the text – Hazards which can be caused by your system. ➡... -
Page 4: Understanding The Pumps Tph/Tpu 2201
Improper use will cause all claims for liability and guarantees to be forfeited. The turbopumps must not be transported when filled with lubricant. 2.2. Differences Between The Pump Types Feature TPH 2201 TPU 2201 High vacuum flange DN 250 ISO-K DN 250 CF-F High vacuum seal... -
Page 5: Installation
3. Installation 3.1. Preparations For Installation Connecting via bellows If the high vacuum side is to be flanged via a bellows, the tur- Do not carry out any unauthorised conversions bopump must be secured for example via the holes on the or alterations to the turbopump. -
Page 6: Connecting The Fore-Vacuum Side
➡ Before insert the splinter shield in the CF-F flange the strap 3.4. Connecting The Cooling Unit must be bent. The Turbopumps TPH/TPU 2201 have been designed to be water cooled. Inserting the splinter shield in CF-F flage The cooling water can be drawn either Strap (bent) –... -
Page 7: Connecting The Venting Valve
Cooling With The Recycled Water Cooling Unit TZK 3.6. Connecting The Heating Unit (Accessory) High temperatures are generated when Dirt traps are not permissible in the lines. turbopump or vacuum chamber are baked out. All other steps as for connecting to the cooling water mains. Contact with hot parts can cause burns, even when the heating has been switched off. -
Page 8: Connecting The Electronic Drive Unit Tc 600
3.7. Connecting The Electronic 3.9. Connecting The Sealing Gas Valve Drive Unit TC 600 To protect the pump, particularly where corrosive or dust pro- Please note: ducing processes are involved, it is necessary to use sealing The turbopump and the Electronic Drive Unit TC 600 are gas. -
Page 9: Connecting The Remote Control Unit
3.10. Connecting The Remote Control Unit Remote control options for various functions are provided with the connection ”REMOTE” on the TC 600 via the 10 pole screw connector plug (maximum cable cross section 0.14 - 1.5 mm 2 /connection). Shielded cable should be used. Shielding has to be connected with the TC casing on the plug side of the TC 600 by using cable clamps. -
Page 10: Connecting The Serial Interface Rs 485
3.11. Connecting The Serial Connecting The RS 485 Interface RS 485 Connecting to a fixed bus system: An external operating component (DCU 001/DCU 600) or an ➡ Connect all units with D+ (pin 5/RS 485) and external computer can be connected via the connection D- (pin7/RS 485) to the bus. -
Page 11: Connections Diagram
3.12. Connections Diagram... -
Page 12: Connections Diagram For 3-Phase Backing Pump
Connection Diagram For 3-phase Backing Pump... -
Page 13: Operations
4. Operations 4.1. Filling In The Lubricant Please note: The following pre-settings have been programmed: Pumps must be filled with lubricant before being – Start-up time 8 min operated. – Rotation speed switchpoint If possible fill in the lubricant in the fitting –... -
Page 14: Circulatory Lubrication
4.4. Circulatory Lubrication Pumping gases with molecular mass ≥ 40 with the incorrect gas mode can cause damage to The ball bearing on the fore-vacuum side is supplied with the pump. lubricant via the lubricating pump. The circulation of the lubricant is monitored via a switching contact. -
Page 15: Operations With The Dcu 001 / Dcu 600
➡ Close fore-vacuum and venting connection by blank Venting Release (Optional) flanging. Automatic venting: ➡ In rooms with moist or aggressive atmospheres, the turbo- When the turbopump or pumping station is switched off the pump must be air-sealed in a plastic bag together with a venting valve opens for the venting time of 3600 seconds bag of dessicant, e.g silicagel. -
Page 16: Rotation Speed Setting Operations Via Input Pwm
Rotation Speed Setting Operations Switching Outputs Via Input PWM Switching outputs 1 and 2 can be loaded with a maximum The supply of pulse width modulated signals (PWM) with a 24 V / 50 mA per output. The following functions are assigned ground frequency of 100 Hz ±20% with an amplitude of maxi- to the switching outputs: mum 24 V and a touch ratio of 25-75% enables the rotation... -
Page 17: What To Do In Case Of Breakdowns
6. What To Do In Case Of Breakdowns? Problem Possible Causes Remedy Pump doesn't start; • Power supply interrupted • Check fuse in the power pack unit None of the integrated LEDs • Check plug contacts on the power pack unit glow on the TC 600 •... -
Page 18: Service
7. Service Do make use of our service facilities Decontaminate units before returning or possi- In the event that repairs are necessary a number of options ble disposal. Do not return any units which are are available to you to ensure any system down time is kept to microbiologically, explosively or radioactively a minimum: contaminated. -
Page 19: Maintenance
8. Maintenance Important 8.2. Cleaning Strainer And Floater No liability for personal injury nor material damage will be The strainer 81 and the floater 79 must be cleaned in pure accepted for damages and operational interruptions which alcohol after every lubricant replace or after every 20,000 have been caused by improper maintenance;... - Page 20 Lubricant pump 80 Locking screw 71 Lubricant filler screw 81 Strainer 72 Lubricant drain screw 82 Securing screw 73 Sight glass 83 Supply cable 74 O-ring 84 Bearing mounting 75 O-ring 86 Screw 76 O-ring 87 O-ring 77 Lubricant pump 88 O-ring 78 Ball bearing 89 Circlip...
-
Page 21: Technical Data
9. Technical Data Feature Unit TPH 2201 TPH 2201 Connection nominal diameter Inlet DN 250 ISO-K DN 250 CF-F Outlet DN 63 ISO-K Venting connection G 1/8” Nominal rotation speed 1/min 36 000 Standby rotation speed 1/min 24 000 Start-up time (up to 90% of the nominal rotation speed, fore-vacuum pressure ≤... -
Page 22: Dimensions Diagram
9.1. Dimensions Diagram DN 250 ISO-K DN 250 CF-F M6 (3x) M6 (3x) DN 10 ISO-KF 10. Spare Parts Pos. Description Pieces Size Number Comments Order Quantity Spare parts TPH/TPU 2201 Set of seals PM 003 445 -T USIT-ring 12,7/18 x 1,5 P 3529 142 Lubricant filler screw A2-50, G1/8“... - Page 23 Spare parts...
-
Page 24: Accessories
11. Accessories Description Size Number Comments/ Order Quantity Operating Instructions Componets for cooling Dirt trap R 3/8” P 4161 300 2R Recycled Water Cooling Unit TZK 2000 230 V, 50 Hz PM Z01 240 PM 800 369 BN Components for venting Venting Valve TVF 005, without current closed 24 VDC PM Z01 135... -
Page 25: Lubricant
11.1. Lubricant Lubricant Amount Order Number Order Quantity TL 011 0,25 l PM 006 034 AT 0,5 l PM 006 032 AT PM 006 033 AT 0,05 l PM 006 336 -T 0,25 l PM 006 313 -T When ordering accessories and spare parts please be sure to state the full part number. -
Page 26: Declaration Of Contamination
Declaration of Contamination of Vacuum Equipment and Components The repair and/or service of vacuum components will only be The manufacturer could refuse to accept any equipment carried out if a correctly completed declaration has been without a declaration. submitted. Non-completion will result in delay. This declaration can only be completed and signed by authorised and qualified staff: 1. -
Page 27: Manufacturer´s Declaration
We certify conformity with EU Electromagnetic Compatibility Directive 89/336/EEC and EU Low Voltage Directive 73/23/EEC. Produkt/Product: TPH 2201 / TPU 2201 Angewendete Richtlinien, harmonisierte Normen und angewendete, nationale Normen: Guidelines, harmonised standards, national standards in which have been applied: EN 292-1, EN 292-2, EN 294,... - Page 28 18th Floor, Chokchail Intíl Bldg. Korea Assistencia Técnica e Representação S/C Ltda. 690 Sukhumvit Road Rua Bernadino de Compos, 551 Pfeiffer Vacuum Korea Ltd., 3F Haein Building 453, Klongton, Klongtoey Dokok-Dong, Kang Nam-Ku, Seoul, 135-270 CEP 04620-002 São Paulo, SP - Brasil Bangkok 10110...
