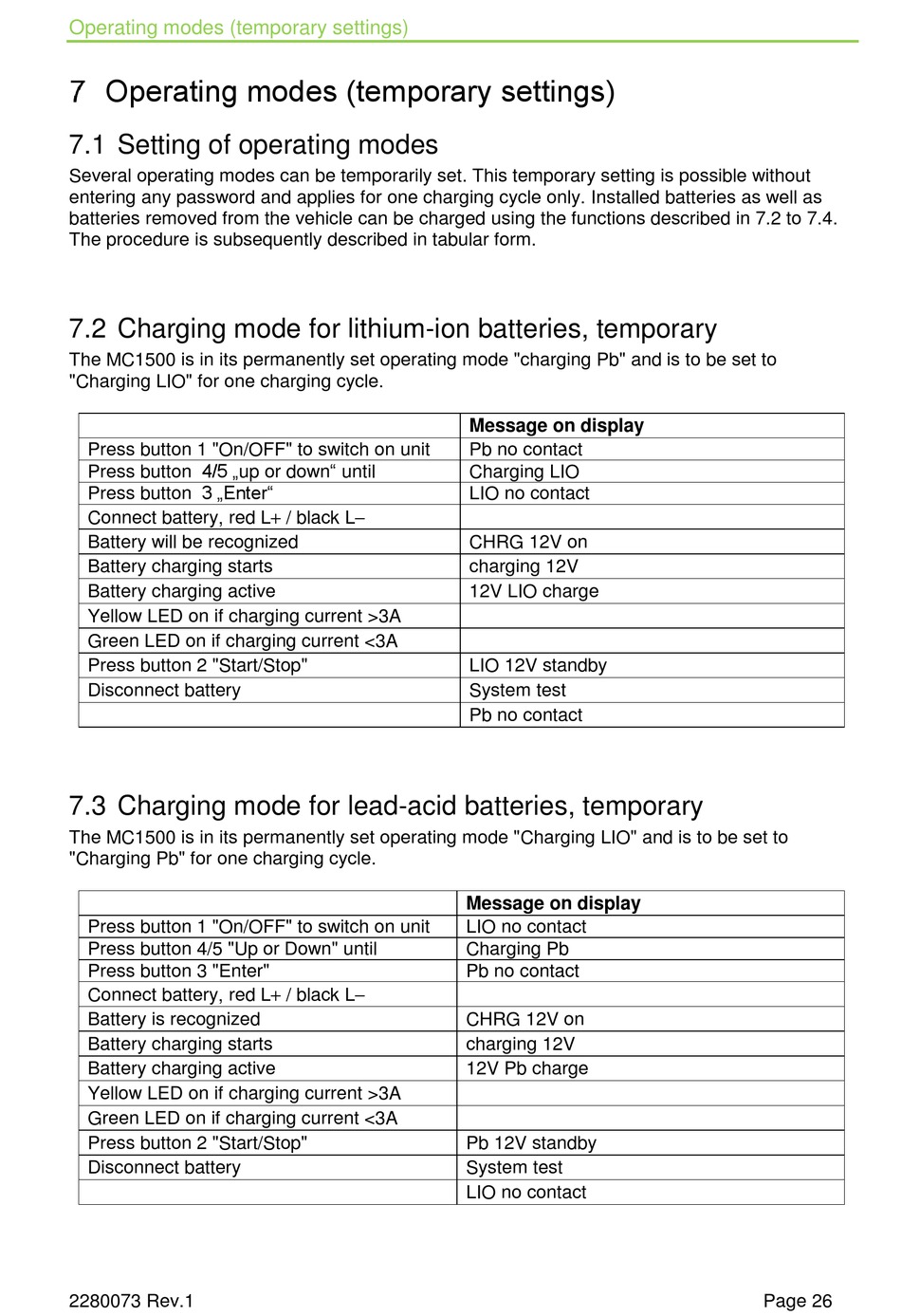

7.1 Setting of operating modes

Several operating modes can be temporarily set. This temporary setting is possible without
entering any password and applies for one charging cycle only. Installed batteries as well as
batteries removed from the vehicle can be charged using the functions described in 7.2 to 7.4.
The procedure is subsequently described in tabular form.

7.2 Charging mode for lithium-ion batteries, temporary

The MC1500 is in its permanently set operating mode "charging Pb" and is to be set to
"Charging LIO" for one charging cycle.
Press button 1 "On/OFF" to switch on unit
Press button 4/5 „up or down" until
Press button 3 „Enter"
Connect battery, red L / black L
Battery will be recognized
Battery charging starts
Battery charging active
Yellow LED on if charging current >3A
Green LED on if charging current <3A
Press button 2 "Start/Stop"
Disconnect battery

7.3 Charging mode for lead-acid batteries, temporary

The MC1500 is in its permanently set operating mode "Charging LIO" and is to be set to
"Charging Pb" for one charging cycle.
Press button 1 "On/OFF" to switch on unit
Press button 4/5 "Up or Down" until
Press button 3 "Enter"
Connect battery, red L / black L
Battery is recognized
Battery charging starts
Battery charging active
Yellow LED on if charging current >3A
Green LED on if charging current <3A
Press button 2 "Start/Stop"
Disconnect battery
