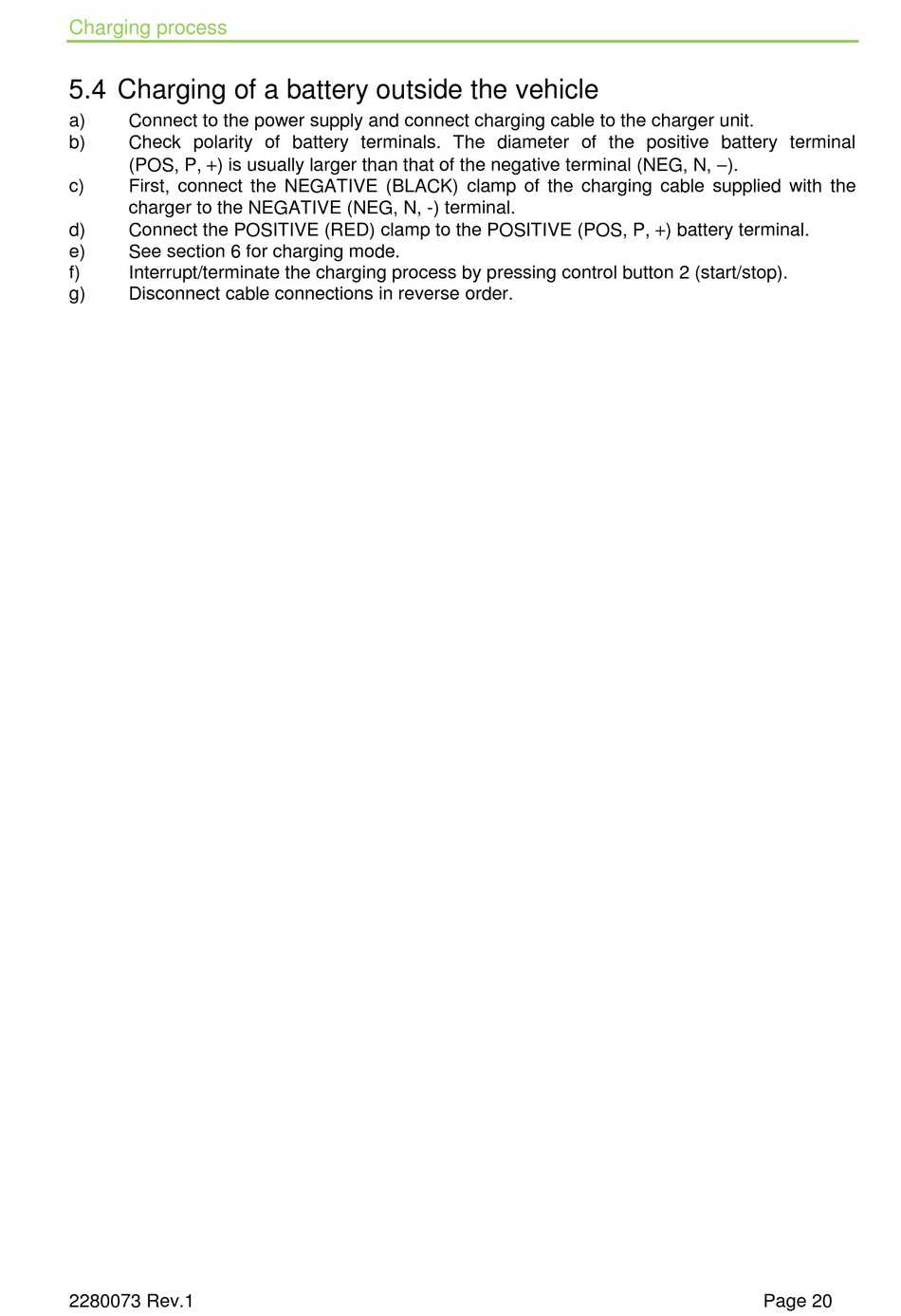

Charging process

5.4 Charging of a battery outside the vehicle

a) Connect to the power supply and connect charging cable to the charger unit.
b) Check polarity of battery terminals. The diameter of the positive battery terminal
(POS, P, ) is usually larger than that of the negative terminal (NEG, N, ).
c) First, connect the NEGATIVE (BLACK) clamp of the charging cable supplied with the
charger to the NEGATIVE (NEG, N, -) terminal.
Connect the POSITIVE (RED) clamp to the POSITIVE (POS, P, ) battery terminal.
d)
e) See section 6 for charging mode.
f) Interrupt/terminate the charging process by pressing control button 2 (start/stop).
g) Disconnect cable connections in reverse order.
