Construction of the charger unit

3.2 Connections

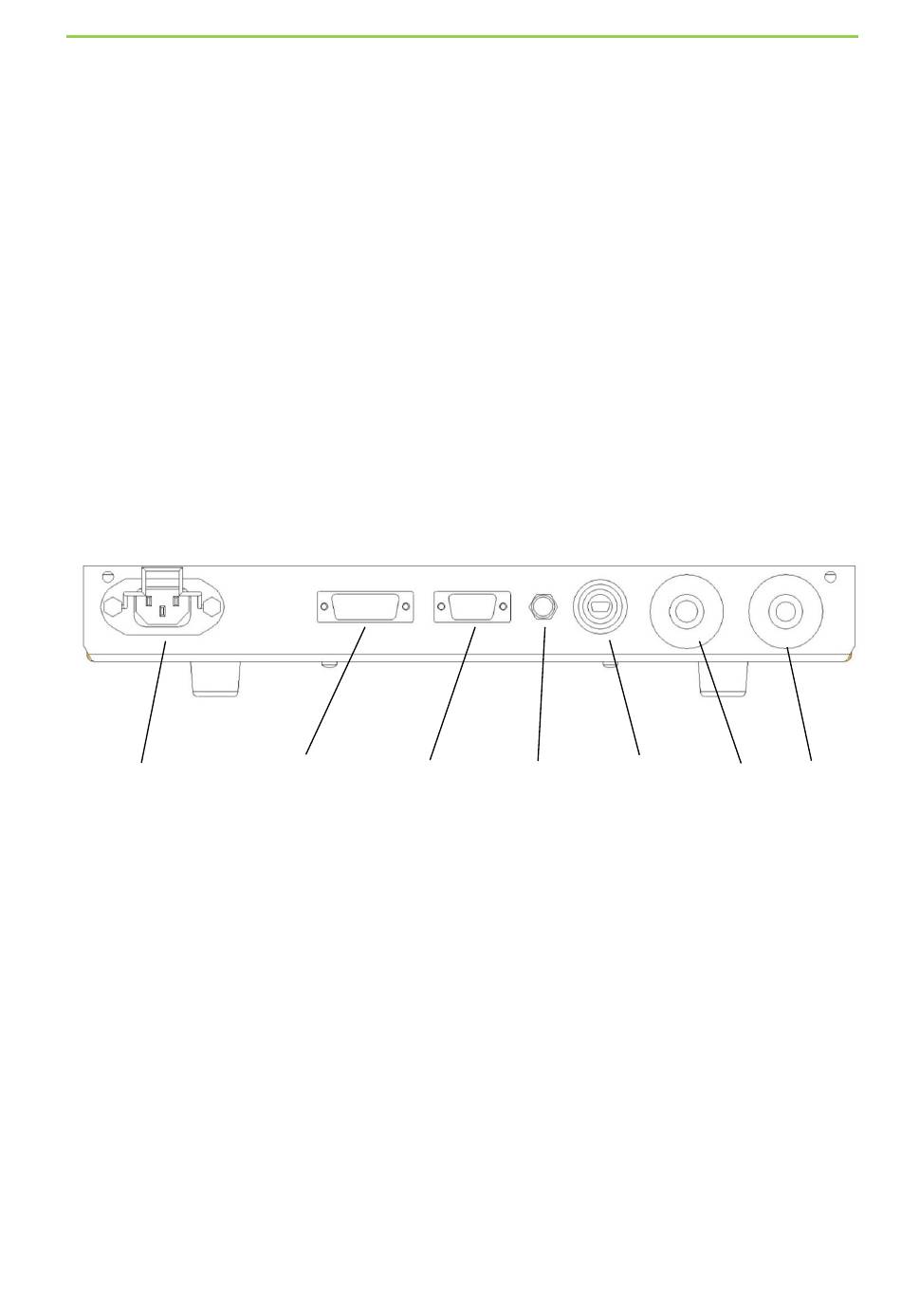

All connections of the MC1500 are on the front.
Mains voltage is connected to the MC1500 through an inlet connector for non-heating
appliances.
3 potential-free relay contacts which signal various states of the MC1500 as well as a hardware
contact "Remote On/Off" can be connected through a 15-pole SUB-D socket.
To connect a signal light, a 9-pole SUB-D socket is used.
The signal light (green/yellow/red) signals various states of the MC1500.
A M8 plug-in connector (three-pole socket) can be connected to a sensor cable (only for special
applications).
A Mini-USB socket is used for configuration via PC and the software WinCharge. Software
updates can also be carried out through this interface.
Battery connection is made by means of bayonet connectors. The bayonet connectors are
connected with an corresponding charging cable with battery clamps.
Mains connection
2280073 Rev.1
15-pole 9-pole
SUB-D SUB-D
socket socket
sensor Mini USB
cable socket
L- L+
Battery
connections
Page 14
