2.3.9

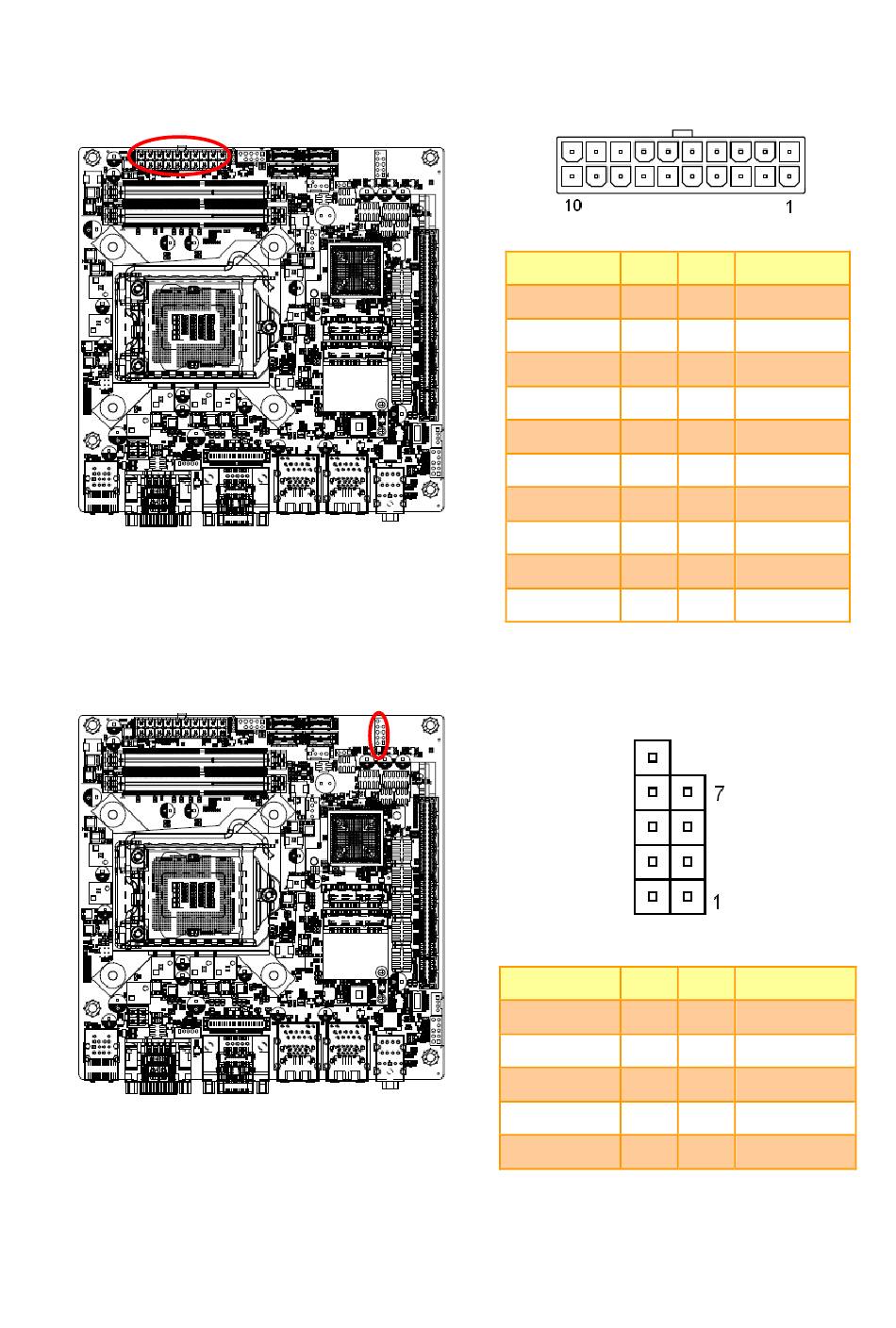

ATX Power connector (ATXPWR1)

2.3.10

USB 2.0 connector 1 (JUSB1)

Signal PIN
+3.3V 1
+3.3V 2
GND 3
+5V 4
GND 5
+5V 6
GND 7
PG_ATX 8
9
+V5SB_DP
+12V 10
Signal PIN
NC 10
GND 8
6
USB_R_DP6
USB_R_DN6 4
+5V 2
EMX-H110KP User's Manual 23
User's Manual
PIN Signal
11 +3.3V
12 -12V
13 GND
14 PSON#
15 GND
16 GND
17 GND
18 -5V
19
+5V
20 +5V
PIN Signal
7 GND
5
USB_R_DP5
3 USB_R_DN5
1 +5V
