Run and Test

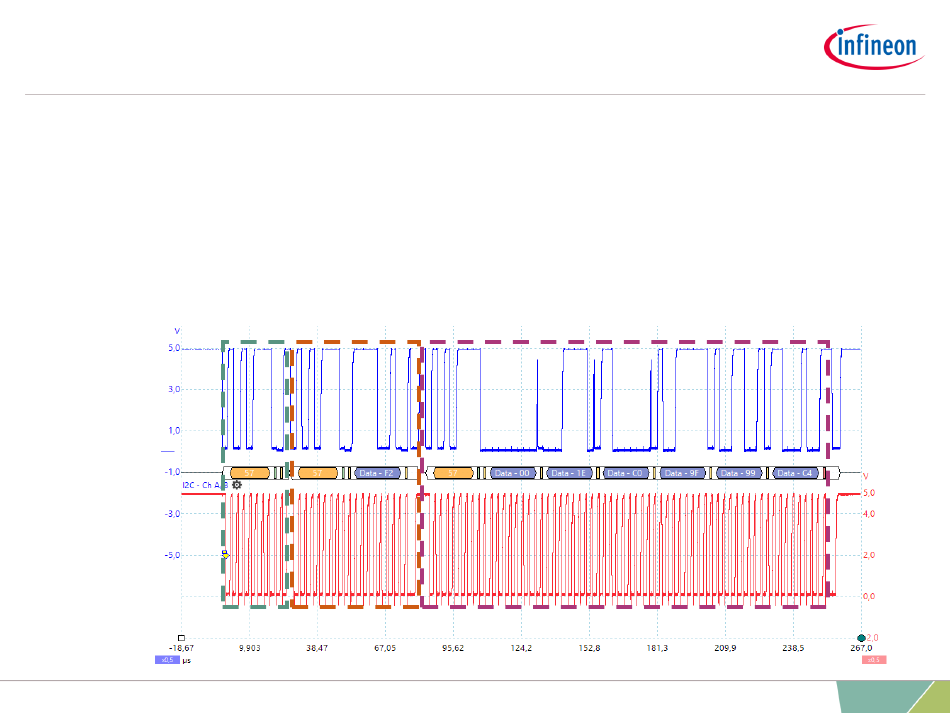

The following waveforms should be seen on the oscilloscope after pressing
the PORST push button:
›
First data section:
›
Second data section:
›
Third data section:
(Please refer to the next slide for more details about the data sections)
SDA
SCL
2019-10-17
device address byte
device address byte and register address
device address byte and six bytes of data
