- Page 1 GTM_TOM_Interrupt_1 GTM TOM interrupt AURIX™ TC2xx Microcontroller Training V1.0.0 Please read the Important Notice and Warnings at the end of this document...
-
Page 2: Scope Of Work
LED. The Generic Timer Module triggers an interrupt every 500 ms. The state of the port pin, where the LED is connected, is toggled inside the Interrupt Service Routine (ISR). 2019-10-17 Copyright © Infineon Technologies AG 2019. All rights reserved. - Page 3 The Clock Management Unit (CMU) is responsible for clock generation of the GTM. The Fixed Clock Generation (FXU) is one of its subunits and it provides five predefined non-configurable clocks for GTM modules, including the TOM. 2019-10-17 Copyright © Infineon Technologies AG 2019. All rights reserved.
-
Page 4: Hardware Setup

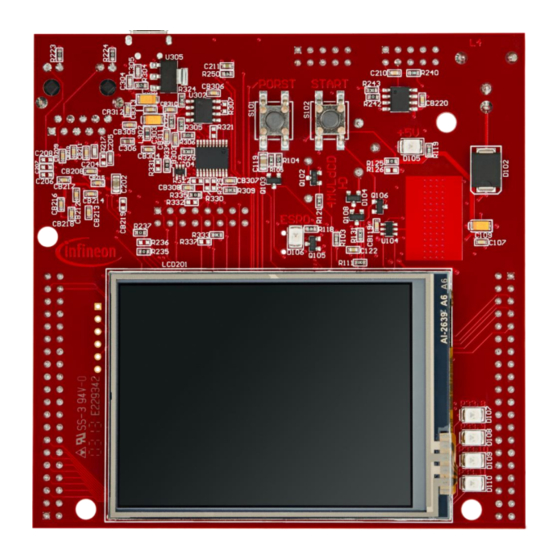

Hardware setup This code example has been developed for the board KIT_AURIX_TC297_TFT_BC-Step. LED D107 (1) is used for this example. 2019-10-17 Copyright © Infineon Technologies AG 2019. All rights reserved. - Page 5 – Select CMU clock 0 – base.frequency – Set timer frequency to 2 Hz (Interrupt every 500 ms) – base.isrPriority – Interrupt Service Routine priority – base.isrProvider – Interrupt Service Routine provider 2019-10-17 Copyright © Infineon Technologies AG 2019. All rights reserved.
- Page 6 › The function IfxGtm_Tom_Timer_init() initializes and activates the TOM with the given configuration. All the functions used for the configuration of the TOM are provided by the iLLD header IfxGtm_Tom_Timer.h. 2019-10-17 Copyright © Infineon Technologies AG 2019. All rights reserved.
- Page 7 The ISR implemented in this example contains the following steps: › Clear the timer event with the function IfxGtm_Tom_Timer_acknowledgeTimerIrq() (iLLD header IfxGtm_Tom_Timer.h). › Change the LED state by calling the function IfxPort_togglePin() (iLLD header IfxPort.h). 2019-10-17 Copyright © Infineon Technologies AG 2019. All rights reserved.
- Page 8 Run and Test After code compilation and flashing the device, observe the LED D107 (1), which should be blinking. 2019-10-17 Copyright © Infineon Technologies AG 2019. All rights reserved.
- Page 9 More code examples can be found on the GIT repository: › https://github.com/Infineon/AURIX_code_examples › For additional trainings, visit our webpage: › https://www.infineon.com/aurix-expert-training › For questions and support, use the AURIX™ Forum: › https://www.infineonforums.com/forums/13-Aurix-Forum 2019-10-17 Copyright © Infineon Technologies AG 2019. All rights reserved.
