Run and Test
After code compilation and flashing the device, perform the following steps:

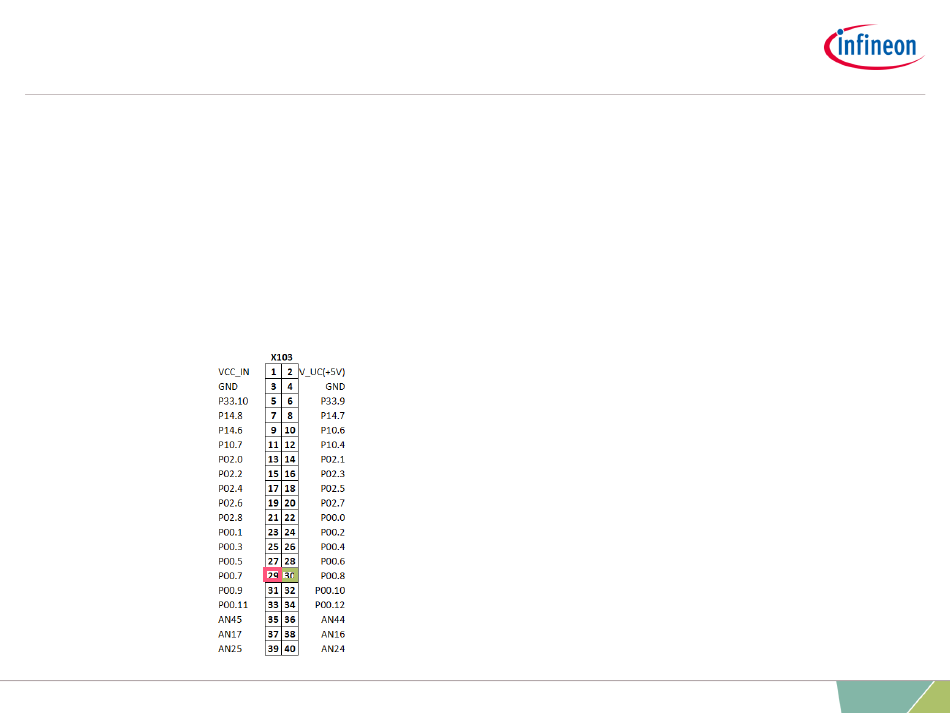

1. Connect the two pins P00.8 (PWM signal) and P00.7 (GPT1 T2 input) to each
other.
2. Check parameter g_measuredPwmFreqHz in the debugger. Its value should
be similar to the parameter g_generatedPwmFreqHz.
3. Change the parameter g_generatedPwmFreqHz and check if
g_measuredPwmFreqHz changes accordingly.
input pin A of
timer T2
2019-10-17
PWM signal
