PSTN Dialer module
2.
Telephone line
3.
Main board
4.
Plug-in TX
5.
Auxiliary power (AC operated 10-15V, Battery operated 6-8V)
6.
Relay output (100mA max)
7.
Hardwired zone (Zone 33)
8.
Hardwired LCD keypad terminal block
9.
Front tamper switch
10. AC power terminal block
11. Home Automation terminal block
12. Battery connector
13. Back up battery pack
14. GSM communication module
15. Home Automation module
100mA
max.
6
7
5

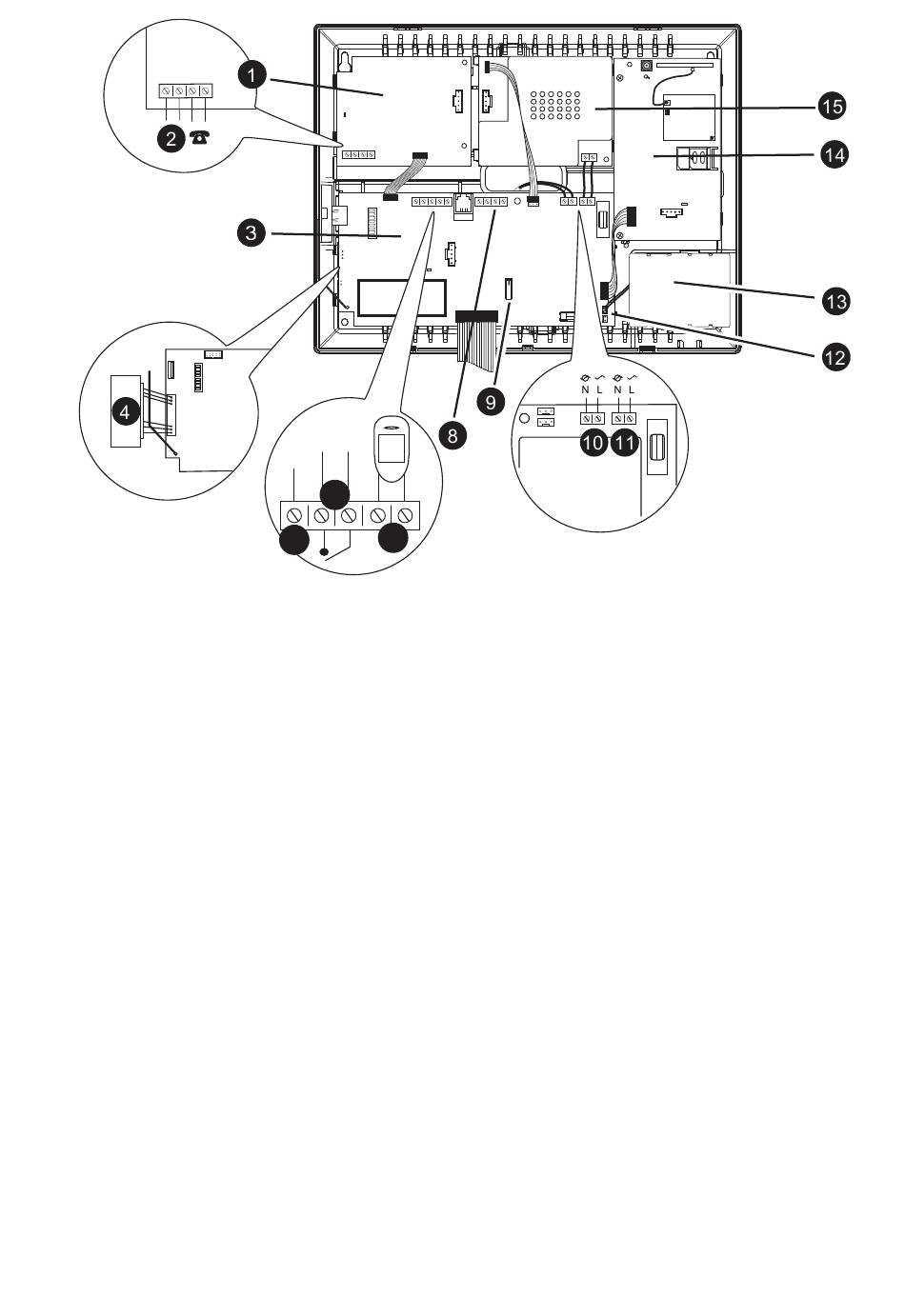

Figure 1: Prime layout
