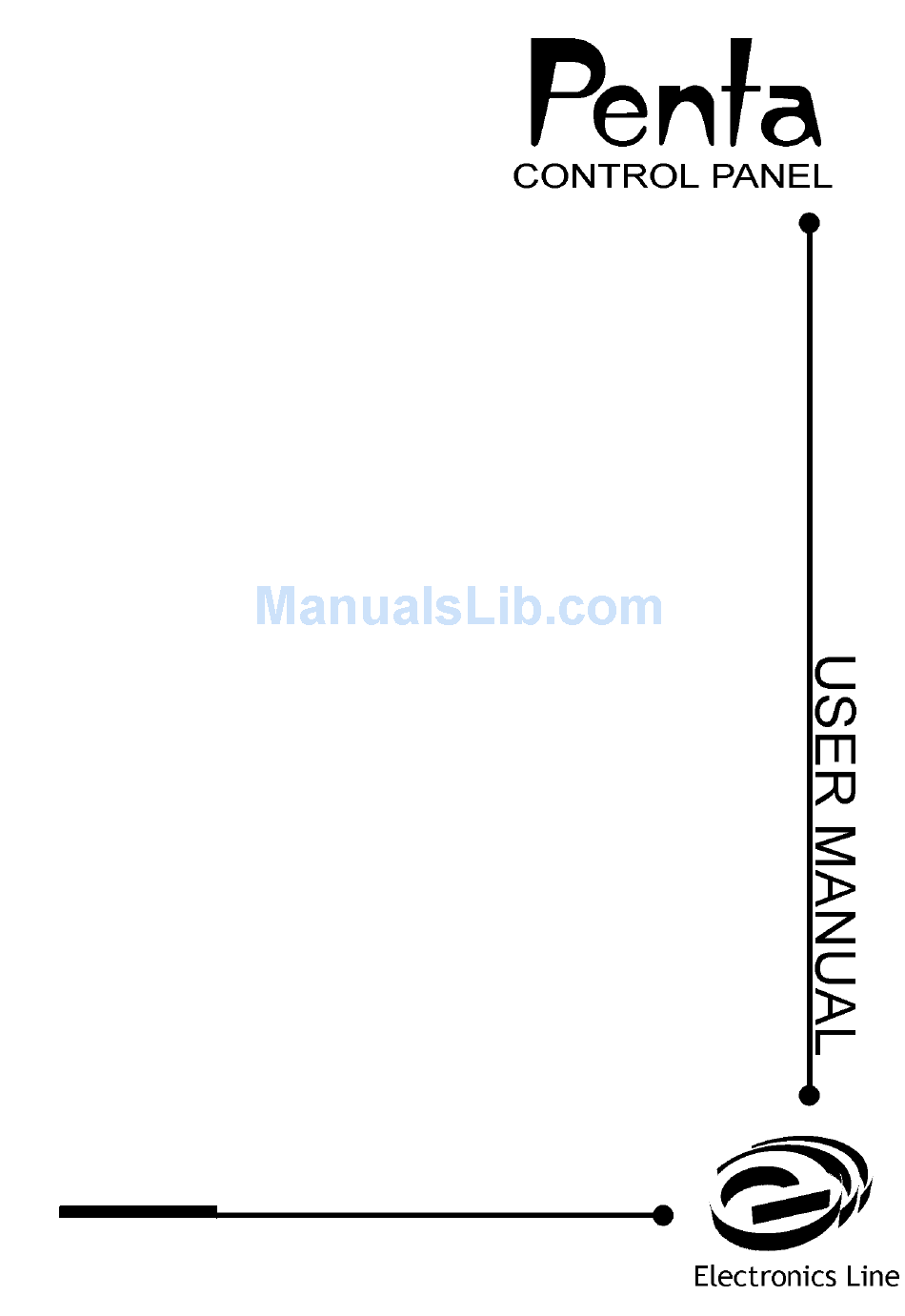

Electronics Line Penta User Manual

Electronics line penta control panel user manual
Hide thumbs Also See for Penta:

Advertisement

Table of Contents

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Penta and is the answer not in the manual?

Questions and answers

Related Manuals for Electronics Line Penta

Summary of Contents for Electronics Line Penta

  • Page 2: Table Of Contents

    Reference Information ................... 10 1: Introduction Congratulations on purchasing the Penta security system. You have taken a major step in protecting your home or business. In addition to the explanation you will receive from your installer, we urge you to read through this manual. This will help you familiarize yourself with the system, so that you can take advantage of its many advanced features.

  • Page 3: 2: Overview

    Zones The Penta security system comprises four security zones. A zone can be defined as a protected area in your security system. Each zone can be protected by one or more detection devices such as motion detectors, magnetic contacts, glassbreak detectors and shock sensors.

  • Page 4: 3: System Operation

    3: System Operation 3.1: Keypad Layout READY System Status Indicators Zone Status SYSTEM Status Indicators Indicators meric Keypad Distress Keys Buzzer Figure 3.1: Keypad Layout LED Display 1 - 4: LEDs 1 - 4 are used to display zone status. The corresponding LED lights up if a zone is open.

  • Page 5: Command Codes

    3.2: Command Codes The Penta security system is operated by entering command codes on the numeric keypad. A command is executed by pressing the ‘Q‘ button followed by the corresponding command number. In some cases, a valid user code is also required.

  • Page 6: Arming/Disarming

    Enter a valid user code; the keypad beeps until the end of the exit delay. Quick Arming This feature allows you to arm the Penta without entering a valid user code. To “Quick” arm the system: Check that all zones are closed; the Ready LED lights up to indicate that the system is ready to be armed.

  • Page 7: Zone Bypassing/Unbypassing

    Disarming The Penta can be disarmed by entering a valid user code during the entry delay. If an error is made entering the code, press ‘#’ and enter the code again. When the code is accepted the Armed LED and the pulsed delay tone are turned off. If the correct code is not entered by the end of the delay time, an alarm will be generated.

  • Page 8: Event Logs

    When using Follow-me, the Penta dials the telephone number programmed by the installer and sounds two beeps. After hearing the two beeps, pressing 3, 6, 9 or # on the telephone sounds a number of tones to indicate exactly which type of alarm has occurred.

  • Page 9: Additional Operations

    Press and hold down # for more than 2 seconds. 3.11: Testing the System Electronics Line recommends that you test your system at least once a week. Walk Test Walk test mode enables you to test peripheral detection devices, such as PIR detectors and magnetic door contacts.

  • Page 10: Reference Information

    Reference Information To be filled out by the installer: Installer: _______________________________________ Tel: _____________ Address: _________________________________ Date Installed: __________ Central Station:____________________________________ Tel: _____________ Silent q Audible q Zone 1: __________________________________ Silent q Audible q Zone 2: __________________________________ Silent q Audible q Zone 3: _________________________________ Silent q...
