Mounting instructions for Wolfman and Backroads Moto
This kit contains the following:
Quantity Description
1
Top rack
1
Under mount bracket
4
8mm x 60mm Socket head
3
6mm x 20mm Flat head
4
8mm Washer (small)
3
6mm Washer (small)
3
6mm Nuts
Spacer 5/8 x 1"
4
Rack is designed to work with the stock tail light assembly if
you have a tail tidy you will need longer spacers
Tools required:
10mm End wrench
4mm Hex wrench
6mm Hex wrench
¾ Drill bit or step drill
Drill
Read and understand these instructions prior to installation
1. Remove rear fender, turn over and drill out the four dimples in the under side to ¾
inch so that the four mounting holes are accessible.
Top rack
KTM 690
PART # RTR8
Be sure to tighten all bolts

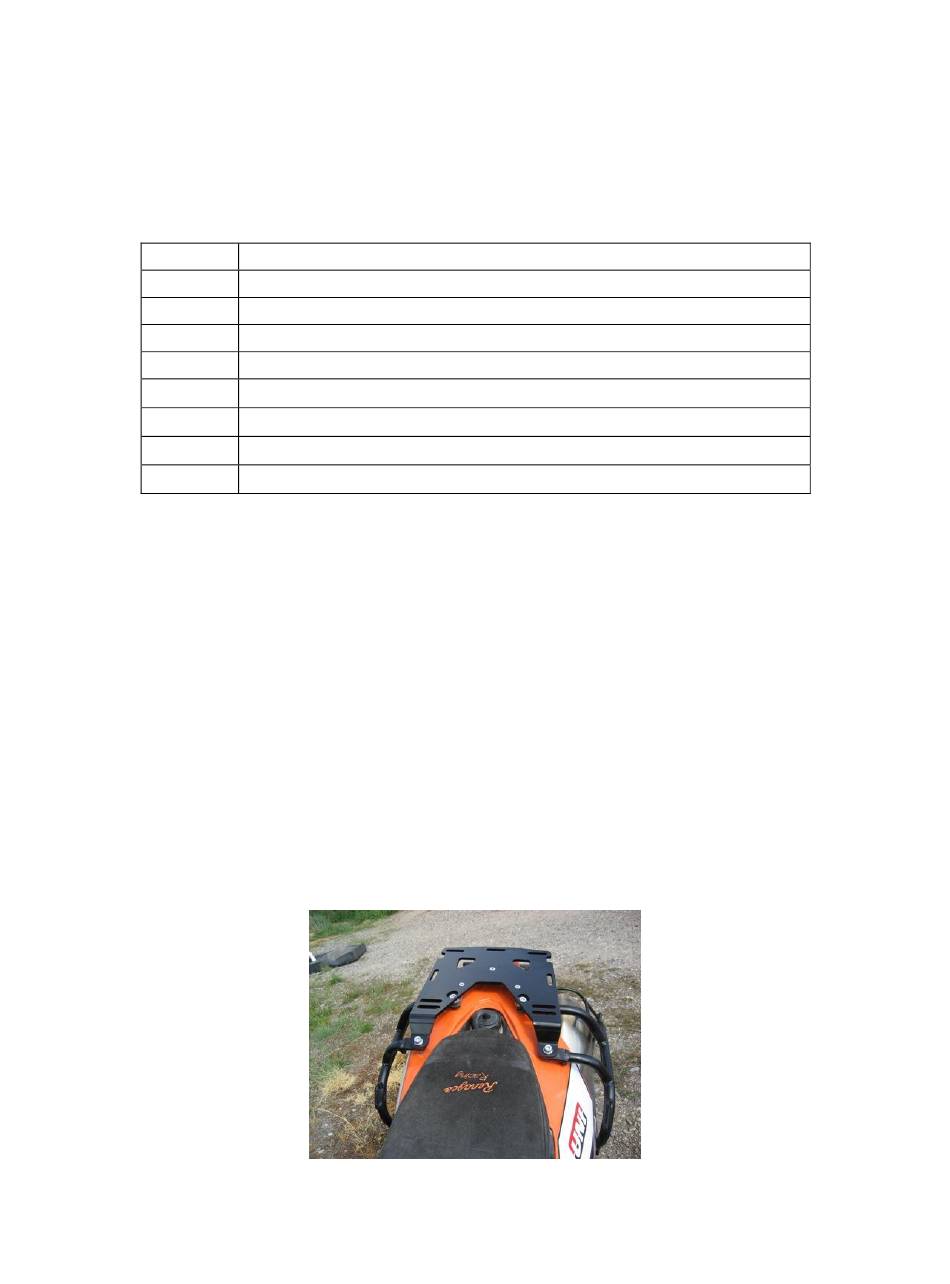

Properly installed Top rack for KTM 690
Advertisement
Table of Contents
Related Manuals for Wolfman RTR8
Summary of Contents for Wolfman RTR8
- Page 1 Mounting instructions for Wolfman and Backroads Moto Top rack KTM 690 PART # RTR8 This kit contains the following: Quantity Description Top rack Under mount bracket 8mm x 60mm Socket head 6mm x 20mm Flat head 8mm Washer (small) 6mm Washer (small) 6mm Nuts Spacer 5/8 x 1”...
- Page 2 2. Reinstall rear fender. 3. Place four 5/8x1” spacers in the holes. See FIG 1 4. Using 3 each 6mm x 20mm flat head bolts, 6mm (small) washers and 6mm nuts attach top rack under mount bracket to bottom side of top rack (don’t tighten). See FIG 2 FIG 1 FIG 2...
- Page 3 FIG 5 8. Tighten remaining hardware. If you have any questions call or email Berg Briggs at: 1-307-690-0452 berg@brmoto.com...
