Summary of Contents for TREND DG/JIG

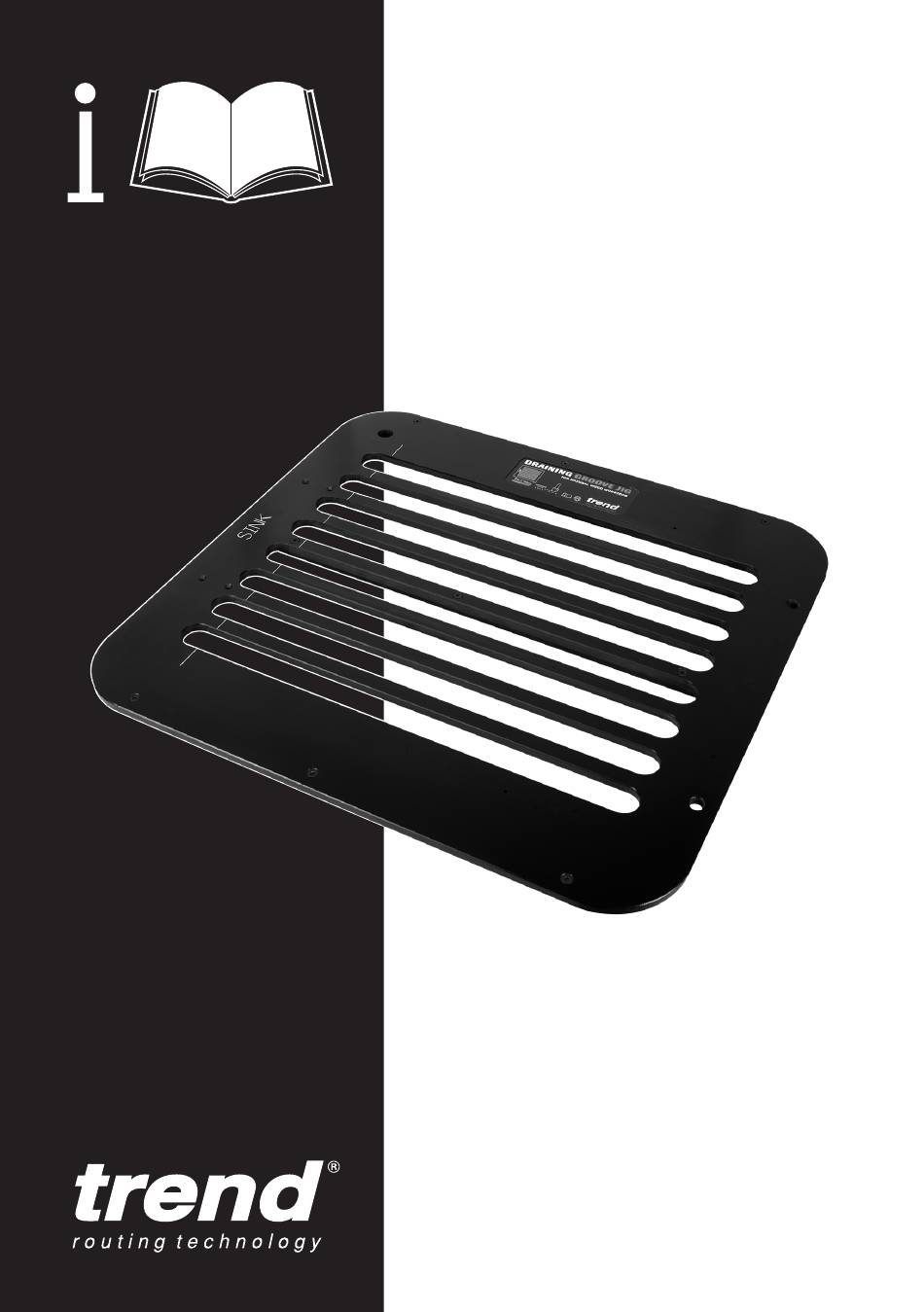

- Page 1 DG/JIG...
-
Page 2: Table Of Contents
DG/JIG TECHNICAL DATA Dear Customer Thank you for purchasing this Trend product, we Jig thickness 10mm hope you enjoy many years of creative and Cutter size R9.5mm (Ø19mm) productive use. Slot length (approx.) 455mm Please remember to return your guarantee card Slot depth at sink (approx.) 4.0mm to 4.5mm... -
Page 3: Safety
DG/JIG SAFETY and balance at all times. Do not use recommended when working awkward or uncomfortable hand outdoors. Wear protective hair WARNING: positions. covering to contain long hair. Observe the safety regulations in the 17. Don’t abuse the cable. Never carry 5. - Page 4 15. All fastening screws and nuts should be adhered to. Recommended speeds 4. When using a template guide bush, be tightened using the appropriate are shown in the Trend Routing ensure there is sufficient clearance spanner or key and to the torque Catalogue and/or website.
-
Page 5: Items Enclosed
DG/JIG ITEMS ENCLOSED J I G J I G D G / D G / ITEMS REQUIRED ■ 1/2” plunge router ■ Trestles x 2 ■ Clamps x 3 ■ Hand tools Ref. UNIBASE For certain makes of router, a sub-base will be... -
Page 6: Description Of Parts
DG/JIG DESCRIPTION OF PARTS A Jig body B Tapered rail (supplied pre-fitted) C Fixing screw (supplied pre-fitted) D Hex key E Guide bush 30mmØ F Cove router cutter R9.5mm x 32mm cut G Guide bush fixing screw H Sight mark... -
Page 7: Assembly Guide Bushes
ASSEMBLY Guide Bushes The bush supplied with the jig is the standard Trend pattern. It will fit Trend routers directly. For other makes and model of router a sub-base may be required to allow the guide bush to be fitted. Ref. UNIBASE has been designed for use with a variety of routers;... -
Page 8: Operation
DG/JIG OPERATION Positioning Jig on Worktop ■ Mark the worktop to denote which side the draining grooves are required. Decide if grooves are required on the left or right or both sides of the sink. ■ Using the jig as a guide mark the first and last 100mm groove position. -
Page 9: Setting The Depth Of Cut
DG/JIG Setting the Depth of Cut ■ Set the router with guide bush fitted into one slot and position router to the shallow end of the jig ensuring that the worktop can be seen below the cutter. ■ Plunge router down until the cutter is just touching the worktop. -
Page 10: Shorter Length Of Groove
DG/JIG Shorter Length of Groove User made The groove length can be made shorter to batten approximately 300mm long by fixing a user made batten (12mm thick, 50mm wide x 500mm long) to the top of the jig. This batten will deliberately restrict the movement of the router. -
Page 11: Maintenance
DG/JIG MAINTENANCE The jig has been designed to operate over a long period of time with a minimum of maintenance. Continual satisfactory operation depends upon proper tool care and regular cleaning. Cleaning ■ Regularly clean the jig with a soft cloth. -
Page 12: Spare Parts List
DG/JIG DG/JIG - SPARE PARTS DIAGRAM v1.0 08/2006 I N I N D R A B O A J I G DG/JIG - SPARE PARTS LIST v1.0 08/2006 Qty. Desc. Ref. Draining Groove Jig DG/JIG Tapered Rail (pack of Three) -
Page 13: Trouble Shooting
DG/JIG TROUBLE SHOOTING Fault Cause Remedy ■ Groove depth tapers to a Cutter depth too shallow. Set depth to approx. 4.5mm. point at shallow end. Jig has lifted when clamped. Ensure clamps are inboard of tapered rails. Reposition clamps. ■ Groove depth vary Jig has lifted when clamped. - Page 14 RECYCLABLE © Copyright Trend 2010. No part of this publication may be reproduced, stored or transmitted in any form without prior permission. Our policy of continuous improvement means that specifications may change without notice. Trend Machinery and Cutting Tools...
