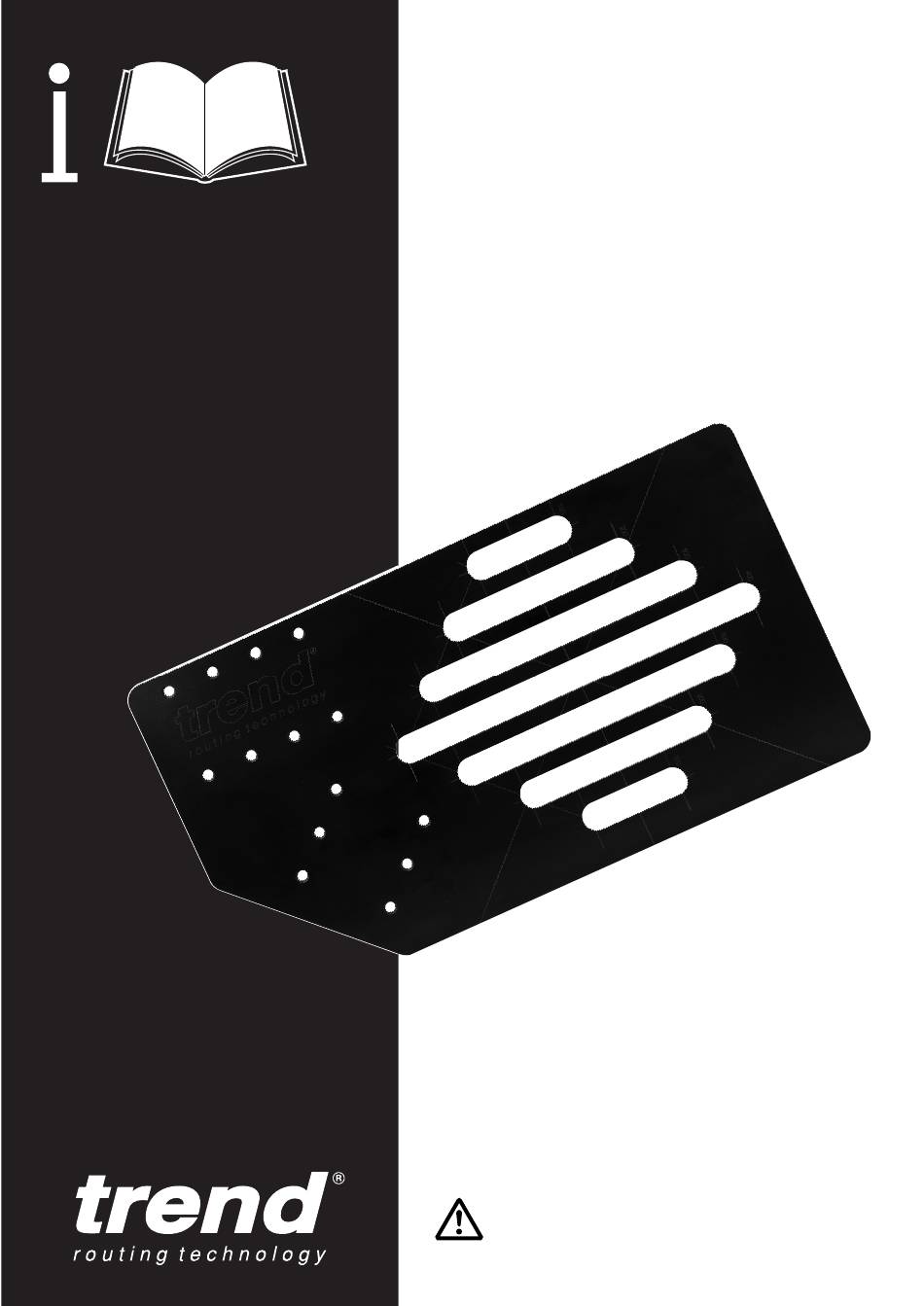

- Page 1 HR/JIG Please read these instructions before use.
-
Page 2: Table Of Contents
HR/JIG Dear Customer TECHNICAL DATA Thank you for purchasing this Trend product, Jig thickness 12mm we hope you enjoy many years of creative and productive use. Cutter size R6.35mm or R6mm cove (radius) Please remember to return your guarantee card... -
Page 3: Safety
HR/JIG SAFETY power tool or accessory by cord or covering to contain long hair. pull it to disconnect from the socket. WARNING: 5. Consider working environment. Do Keep cord from heat, oil and sharp not use the product in the rain or in Observe the safety regulations in the edges. - Page 4 Recommended be tightened using the appropriate between cutter tip and inside edge speeds are shown in the Trend spanner or key and to the torque of bush and that it cannot come into Routing Catalogue and/or website.
-
Page 5: Items Enclosed
HR/JIG ITEMS ENCLOSED ITEMS REQUIRED n 1/2” plunge router with suitable size collet fitted. n R6.35mm (12.7mmØ) or R6mm (12mm Ø) cove (radius) cutter depending on hot rod diameter*. n 30mm guide bush. n Trestles x 2. n Clamps x 3. -
Page 6: Description Of Parts
HR/JIG DESCRIPTION OF PARTS A Jig body B 100mm hot rod slot C 200mm hot rod slot D 300mm hot rod slot E 400mm hot rod slot F Pin holes for 90º to worktop edge G Pin holes for 45º to worktop edge H Slot size engravings I Engraved lines at 45˚... -
Page 7: Accessories
Ref. C054AX1/2TC C053CX1/2TC Recommended Cove Cutter R6mm for 12mmØ Rods Ref. C053CX1/2TC Please see Trend catalogue for other sizes of cove cutter to suit other rod diameters on the market. Sub-base Set Ref. UNIBASE To obtain a perfect accurate close fitting joint, a 30mm guide bush must be used. -
Page 8: Guide Bush
HR/JIG 30mm Guide Bush Ref. GB30/A Clamps Ref. FC/200 Three heavy duty quick action or gripper clamps are required to secure the jig to the worktop. Whenever fast action clamps are used, ensure they do not foul the router path and that they are securely tightened. -
Page 9: Assembly
HR/JIG ASSEMBLY 90º to 50mm worktop edge Fitting Location Pins The jig has sets of pin holes to allow the jig to be accurately positioned at 90˚ or 45˚ to the worktop edge. The pin holes are at 50mm centres. -
Page 10: Operation
HR/JIG OPERATION Positioning Jig on Worktop n After choosing which design is required, Ensure working position is locate the pins in the necessary holes. comfortable. Keep proper footing at n Using two of the pins provided in the relevant all times. -
Page 11: Setting The Depth Of Cut
HR/JIG Setting the Depth of Cut Before cutting an actual worktop, n The preferred method of recessing slots make trial cuts on a waste piece for hot rods is to cut one third to half the of worktop to check groove depth diameter in depth of the hot rods. -
Page 12: Fitting Hot Rods
HR/JIG MAINTENANCE Fitting Hot Rods Please use only Trend original spare parts and n Place the hot rods into the recesses. Check accessories. with hot rod manufacturers instructions for fitting guidance, and suitable adhesive. The jig has been designed to operate over a... -
Page 13: Spare Parts List
HR/JIG HR/JIG - SPARE PARTS DIAGRAM v1.0 03/2014 Please use only Trend original spare parts. HR/JIG - SPARE PARTS LIST v1.0 03/2014 Qty. Desc. Ref. Hot Rod Jig HR/JIG Pins 10mmØ (Pack of 4) KWJ/PIN/4 Manual MANU/HR -12-... -
Page 14: Trouble Shooting
HR/JIG TROUBLE SHOOTING Fault Cause Remedy n Groove is too wide or too Cutter or guide bush is the Check concentricity of cutter narrow for the rods. incorrect diameter or cutter is and guide bush. Cutter should not running true. - Page 15 RECYCLABLE © Copyright Trend 2014. No part of this publication may be reproduced, stored or transmitted in any form without prior permission. Our policy of continuous improvement means that specifications may change without notice. Trend Machinery and Cutting Tools cannot be held liable for any material rendered unusable or any form of consequential loss.
