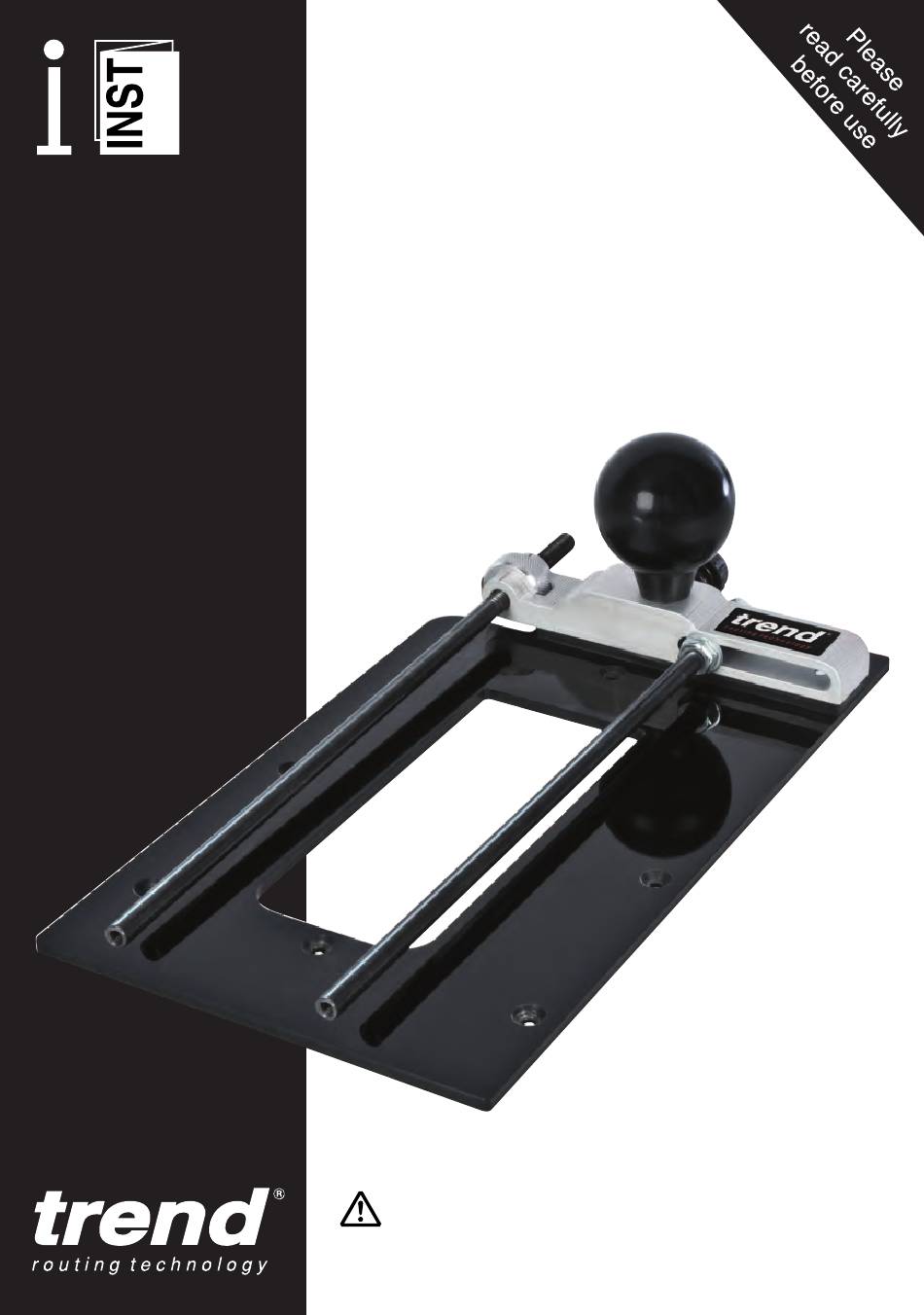

- Page 1 Combination Router Base Please read these instructions before use. INST/CRB v3.0...
-
Page 2: Intended Use
5. Adjustable offset mortising (Material 50mm to 200mm). 6. Adjustable false panel groove copier. 7. Using the CRB with euro style guide bush fitting routers with the Varijig and a long series guide bush. 8. Lateral adjustment 110mm, with 40 micro adjustment (one revolution equals 1.25mm). - Page 3 Parked in bridge. Supplied baseplate together. fitted in bridge. 2. Baseplate - Acrylic platform of the CRB. 10. Mortise Pillars - Attaches to the underside of 3. Bridge Pinch-bolt - Secures the offset handle the base. Guides the CRB when mortising.
- Page 4 CRB acrylic base plate. Due to the large number of different router models available and their differing base and rod configurations, the CRB needs to be initially set up to fit the router. Loosen the guide rod lock nuts located either side...
- Page 5 Fitting the Indexed Rule to the CRB Included with the CRB is a self adhesive Indexed rule, when fitted to the CRB baseplate it will allow the user to see and reposition the router to a measured distance relative to its original position.
-
Page 6: Operation
OPERATION Micro Adjuster The CRB is fitted with a micro adjuster. The micro 1. Offset Baseplate adjuster is designed to provide greater accuracy when positioning the router cutter prior to use. The offset baseplate function is designed to increase the router-base surface contact area to Using the micro adjuster to accurately position the router cutter. - Page 7 Hole C Radius 19mm to 224mm Routing out accurate circles that are smaller than the router base itself is a difficult operation. The CRB allows circles to be cut out easily from as small as 19mm radius up to 224mm radius.
- Page 8 Ensure the clamp guide is set at right angles to the board edge and within the range of the routers movement on the CRB’s rods. Slide the router to the approximate position of the required rebate and using the router fence rod knob on the router base...
- Page 9 Switch on the router. onto the CRB. n Plunge the router cutter into the work piece and n Place the CRB onto the section of wood to be feed the machine forwards again ensuring that mortised with a mortise pillar on either side the mortise pillars are in contact with each side of the work piece.
- Page 10 Groove Copier Bush Fitting Routers To repeat a routing pass a set distance from The anti-tilt function of the CRB can be used as another pass or to produce a series of closely an alternative to the anti-tilt shoe included with...
-
Page 11: Spare Parts
Ref. CRB/SF n Your accessory requires no additional Made from 15mm thick clear acrylic. Screws onto lubrication. CRB baseplate. 270mm long with facility to accept false fence. Storage n Accessory can be stored in its packaging, or can be hung on a wall hook. -
Page 12: Environmental Protection
Trend Routing Technology Inc. 7351 West Friendly Avenue Suite A Greensboro NC 27410 Tel: 336 292 5051 technical@trend-usa.com www.trend-usa.com © Trend Machinery & Cutting Tools Ltd 2012, 2016 E&OE Manufactured by M•Power Tools Ltd™ Design Reg. 3003639 RECYCLABLE...
