Programming the controller

1. Learn wireless inputs

© 2018 Autoslide Pty Ltd

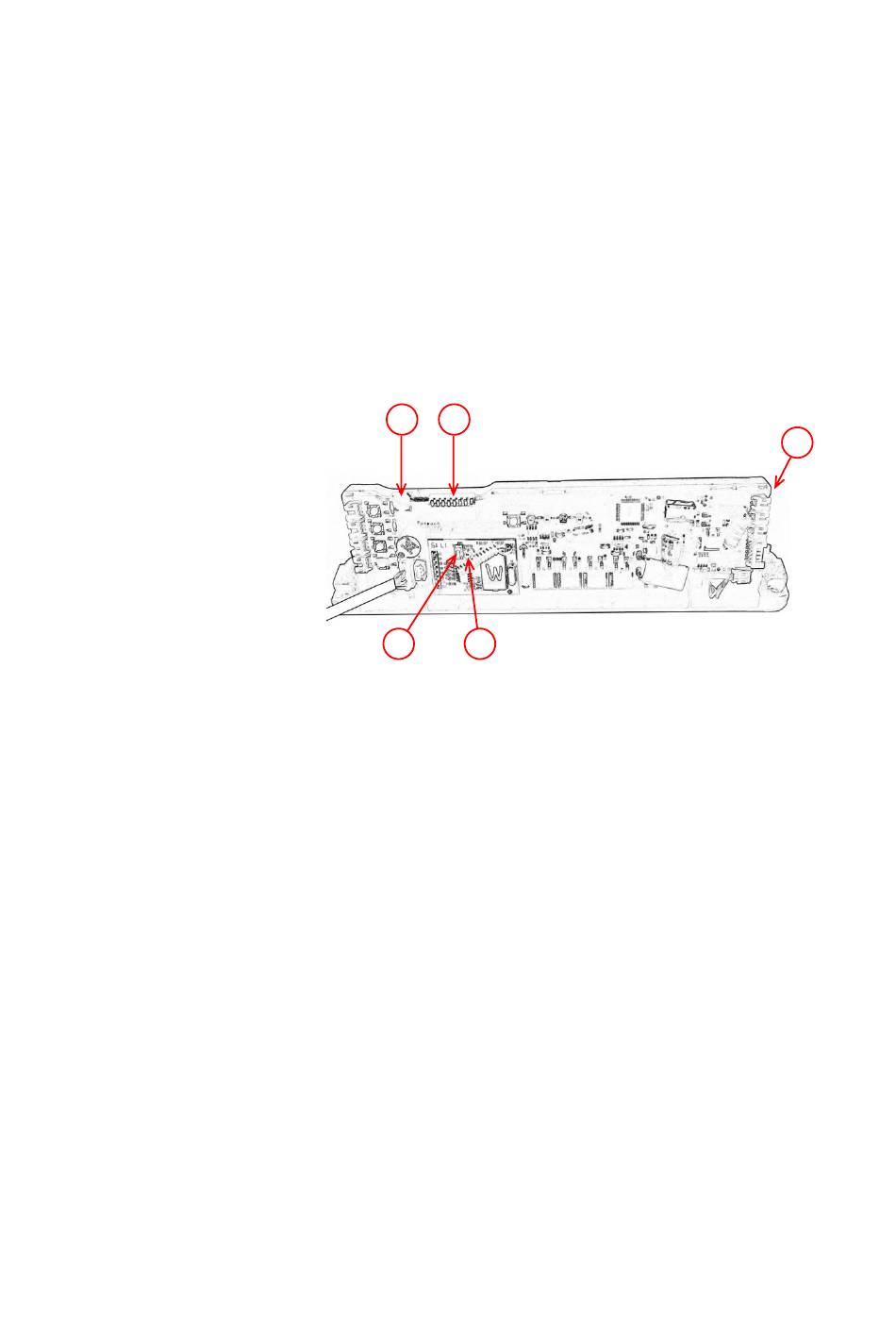

The controller (Figure 42) includes:
•
dial (1): for adjusting the length of time the door stays open
when in auto mode and pet mode.
•
DIP switches (2): eight DIP switches for programming the
controller
•
power switch (3): for switching off power to the controller
•
sensor-learn button (4): for triggering the controller to
calibrate input from wireless inputs such as motion sensors
•
red LED (5): for indicating status when calibrating input from a
motion sensor.
1 2
4 5
Figure 42: The controller.
These steps enable the MultiDrive to detect all wireless inputs,
such as motion sensors, remote controls and pet sensors.
1. Power up the controller:
–
Take the power cable for the AC adapter and plug it into a
general power outlet. Switch on the power at the outlet.
–
Switch on the power switch (3) on the controller.
2. Press the sensor-learn button (4) and release it. The red
LED (5) lights up.
3. Activate all wireless inputs. For example, wave your hand in
front of each motion sensor and push the button on any remote
control to be used. The red LED (5) will turn off when all
wireless inputs have been learnt by the controller.
If you wish to remove all learnt sensors and start again, press
and hold the sensor-learn button (4) for five seconds. The red
LED (5) should light up before the sensor-learn button (4) is
released.
