Autoslide MultiDrive Installation Instructions Manual page 15

(e) Motor
© 2018 Autoslide Pty Ltd

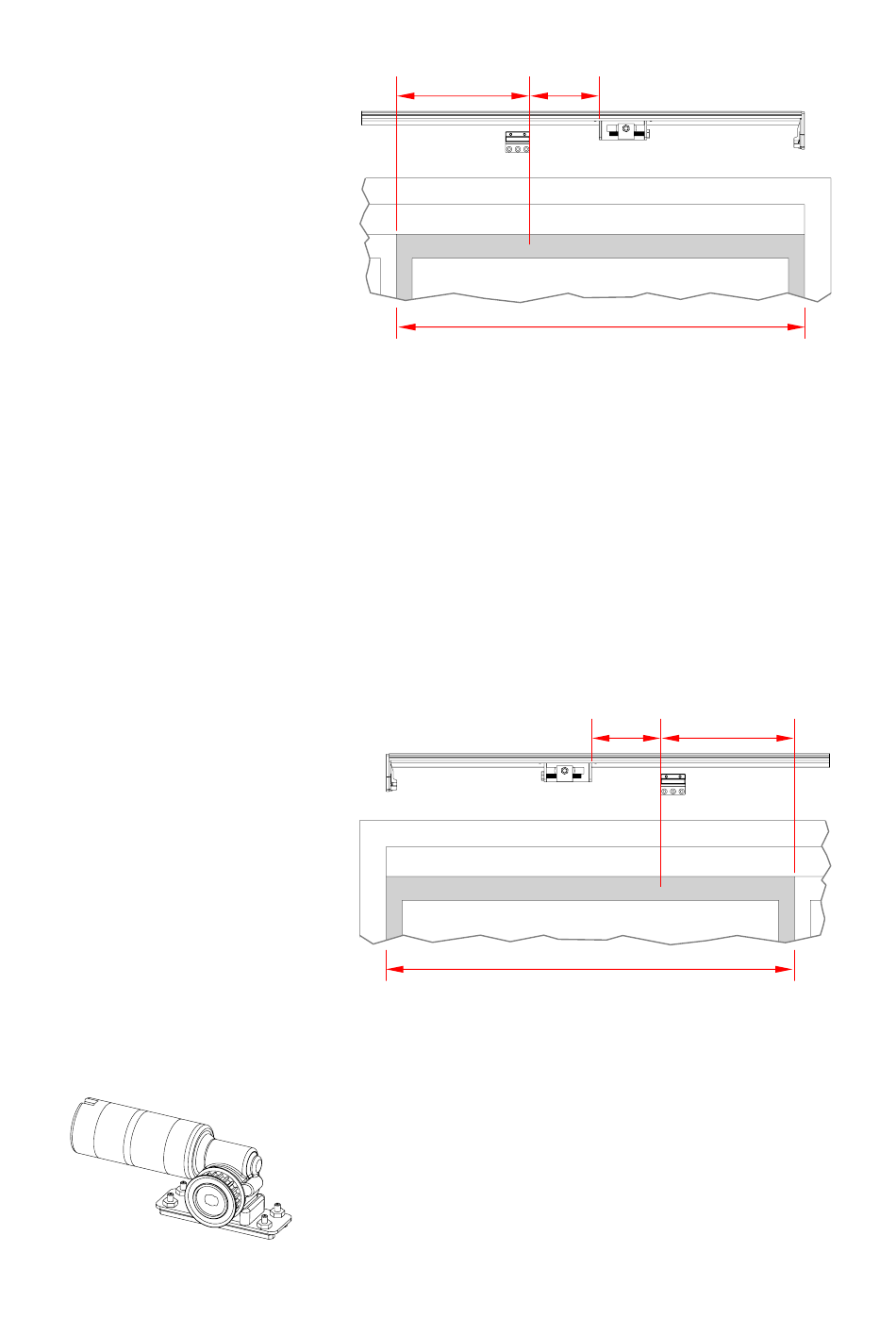

Figure 13: Left-opening sliding door: belt tensioner and bottom
bracket. The right side is shown with sliding door closed.
For left handed doors (non-bi-parting):
For right-opening doors, the belt tensioner sits on the left side of
the door frame (viewed from the inside of the door).
1. Close the door fully.
2. Slide the belt tensioner along the base until it is in front of
closed sliding door as shown in Figure 14, where:
A = 20-30% of the width B of that door
C = 1.97" (50 mm).
3. Tighten the slider nuts to hold the belt tensioner in place.
4. Mark the position of the bottom bracket on both the base and
the door as in Figure 14.
Figure 14: Right-opening sliding door: belt tensioner and bottom
bracket. The left side is shown with sliding door closed.
The motor sits at the opposite end of the base to the belt tensioner.
For bi-parting doors:
Bi-parting doors use a top bracket (unlike other types of doors).
1. Open the doors fully.
A C
B
C
B
MultiDrive
A
15
