(g) Belt
© 2018 Autoslide Pty Ltd

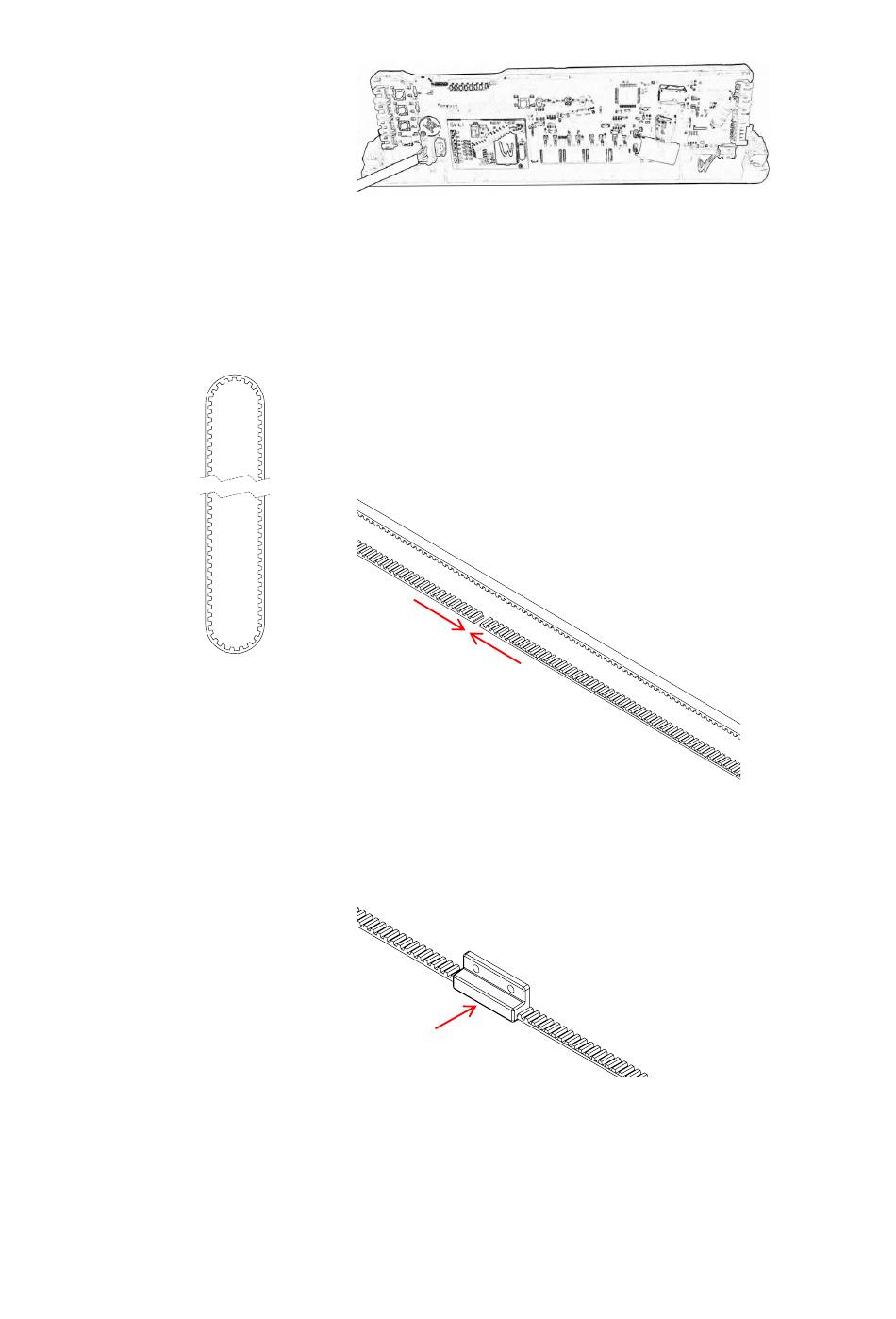

Figure 21: Plug the cables into the controller.
9. Fold up any spare cable from the AC adapter and fit it between
the AC adapter and base.
Steps:
1. Take a length of belt and pass it around the motor pulley and
the belt tensioner pulley to form a loop.
One side of the loop will be closer to the base than the other
side. Keep the unjoined side furthest from the base.
2. Use your hands to gently pull the belt tight. Cut the belt so that
the two ends can touch without overlapping (Figure 22).
Figure 22: Cut the belt so that the two ends touch without
overlapping.
3. Keep two ends of the belt as close as possible to each other
and insert them into the bottom bracket (Figure 23)..
Figure 23: Insert the two ends of the belt into the bottom bracket.
4. Bolt together the two parts of the bottom bracket (Figure 24).
DETAIL
E
SCALE 1 : 1
DETAIL
F
MultiDrive
SCALE 1 : 1
DETAIL
G
SCALE 1 : 1
