Autoslide MultiDrive Installation Instructions Manual page 21

(h) End caps
© 2018 Autoslide Pty Ltd

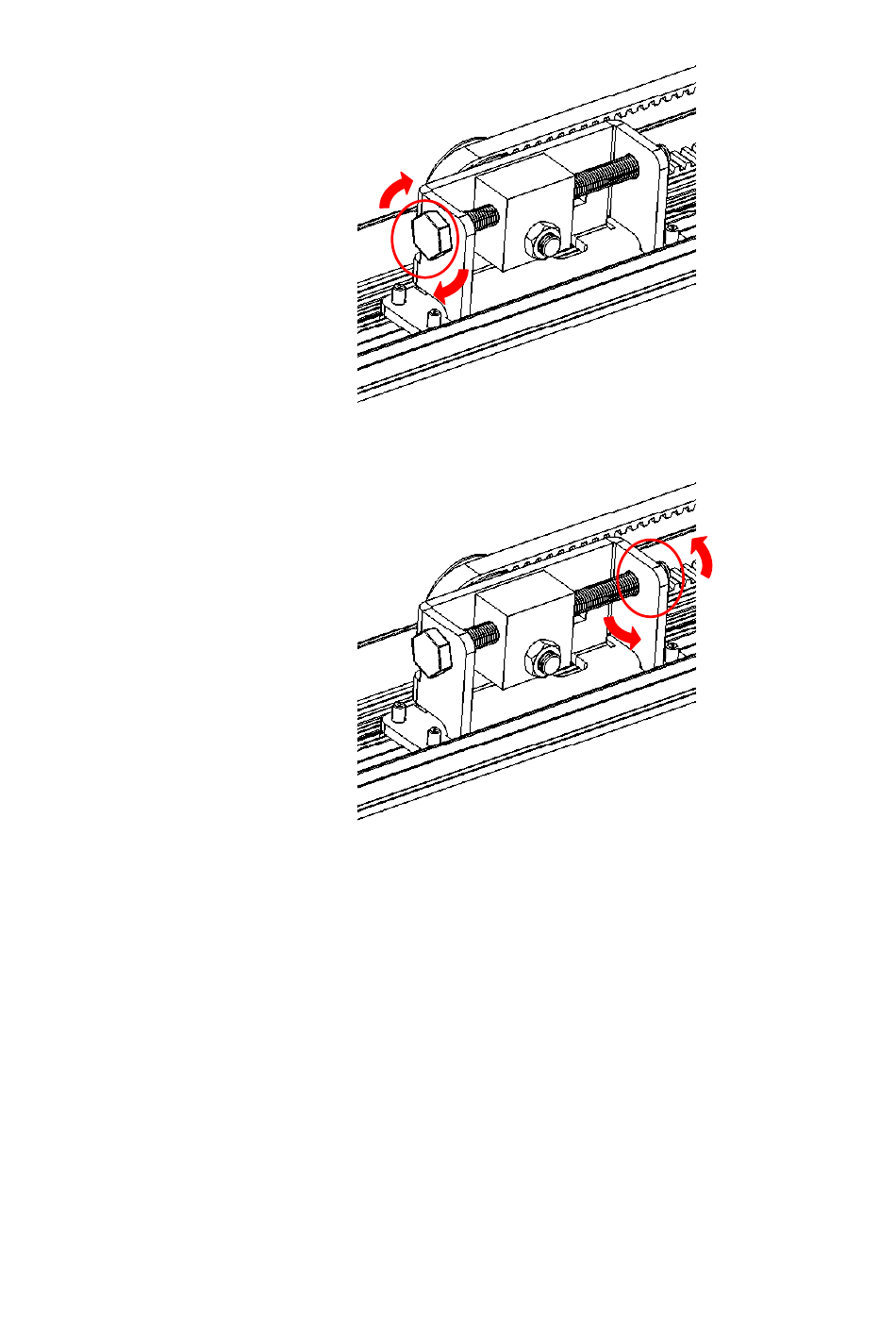

Figure 26: Tighten the belt with the tensioning bolt.
7. Tighten the locking nut (Figure 27).
Figure 27: Tighten the locking nut.
Steps:
1. Each end cap has two sliders. Loosen the nuts and push the
sliders into the two tracks in the base (Figure 28). You may
need to use a hammer to gently tap the end caps into position.
2. Tighten the nuts on both sliders.
MultiDrive
21
