Installation instructions

1. Cut parts to size

(a) Check the MultiDrive fits
© 2018 Autoslide Pty Ltd
✓
a)

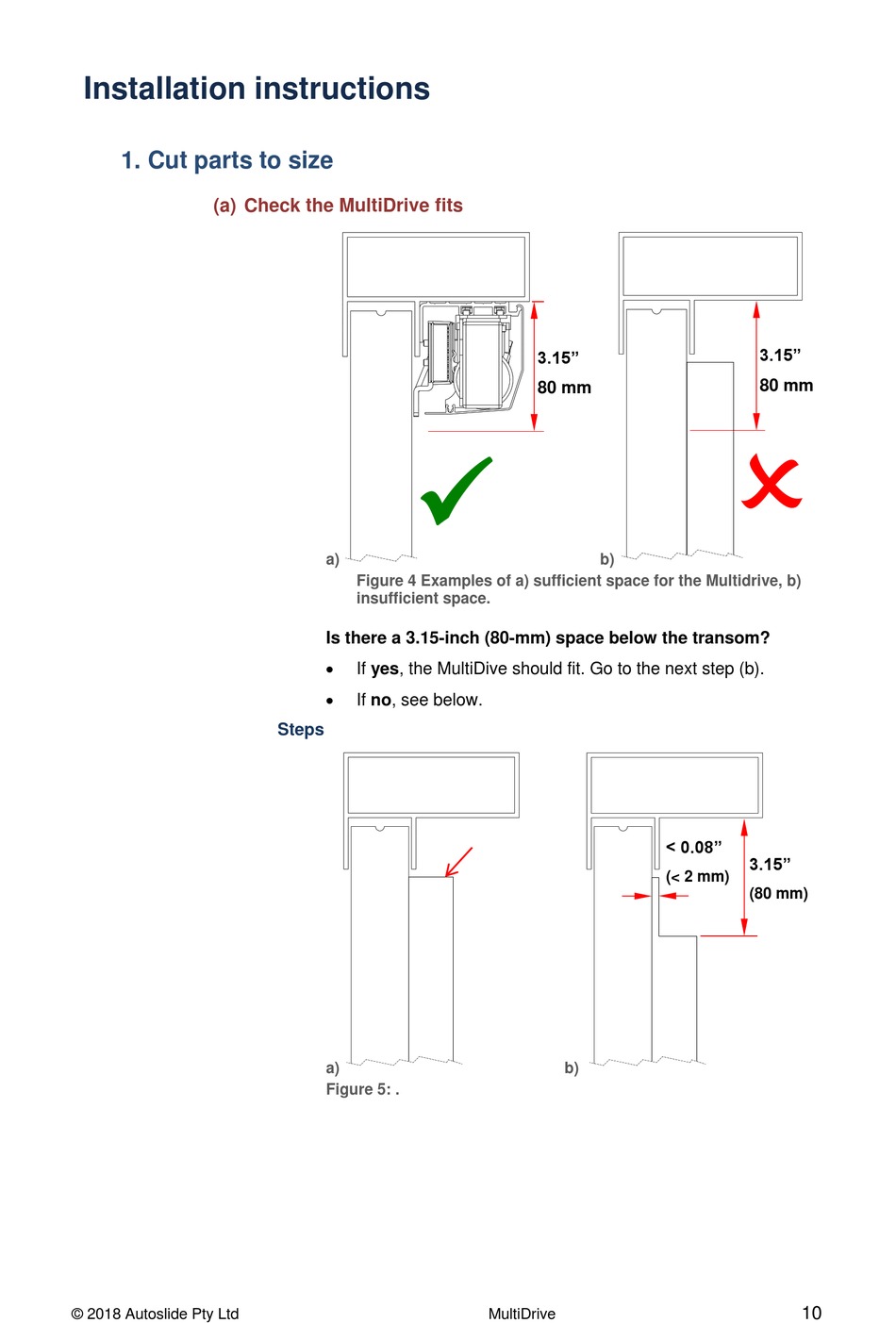

Figure 4 Examples of a) sufficient space for the Multidrive, b)
insufficient space.
Is there a 3.15-inch (80-mm) space below the transom?
•
If yes, the MultiDive should fit. Go to the next step (b).
•
If no, see below.
Steps
a)
Figure 5: .
3.15"
80 mm
b)
b)
MultiDrive
3.15"
80 mm

< 0.08"
3.15"
(< 2 mm)
(80 mm)
