If H < 0.99" (25 mm):
If H is less than 0.99" (25 mm), screw the base to the transom
(Figure 30) as described below.
Otherwise, see the steps for H ≥ 0.99" (25 mm).

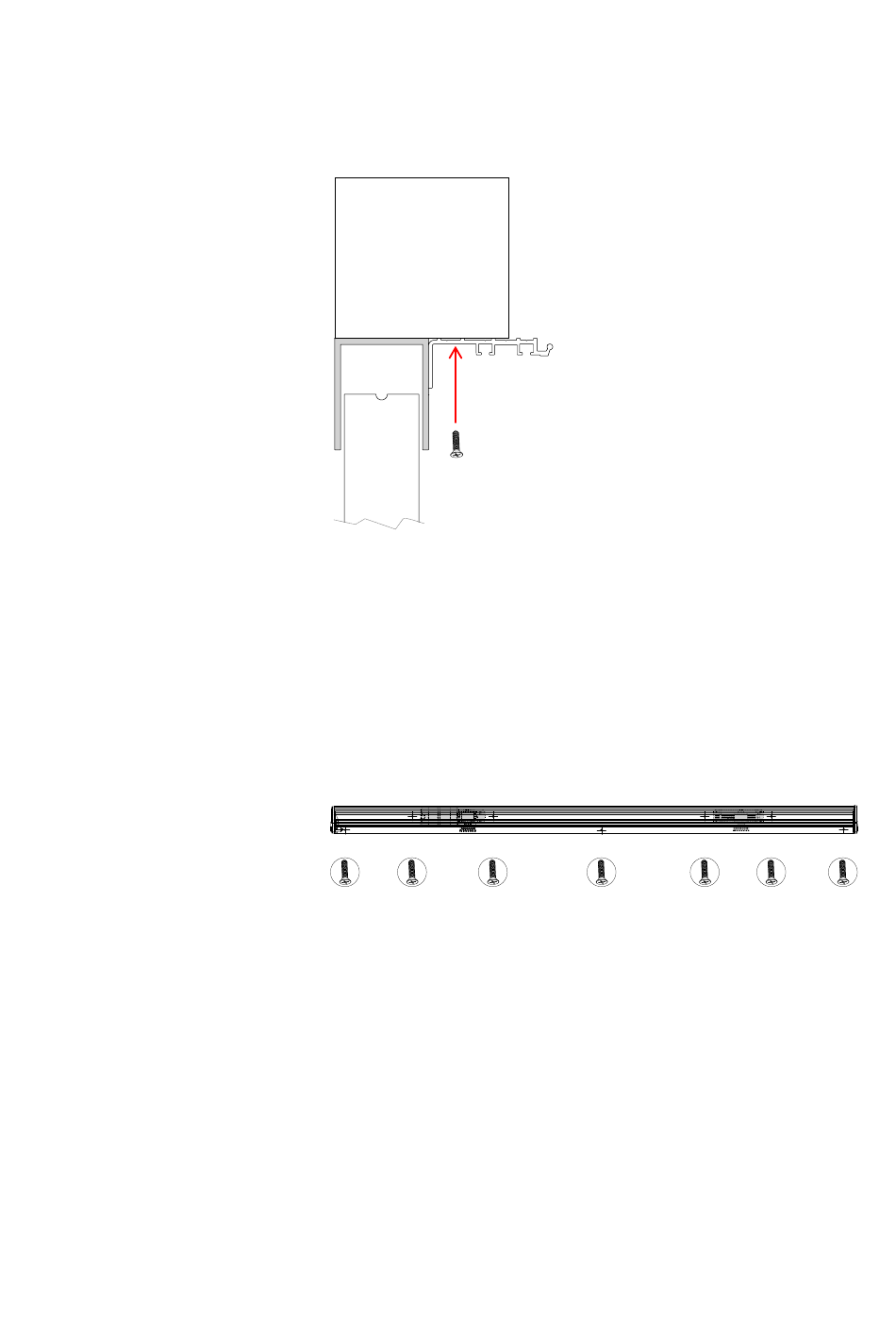

Figure 30: If H < 0.99" (25 mm), screw the base to the transom.
1. Drill holes for 0.24" (6 mm) screws in the base (Figure 31) in
seven places:
at both ends of the motor, no more than 0.8" (20 mm)
–
away, between the two tracks
– at both ends of the belt tensioner, no more than 0.8"
(20 mm) away, between the two tracks
–
near each end cap, in the flat area outside the two tracks
–
in the middle of the base, in the flat area outside the two
tracks.
Figure 31: Screw positions in the base if H < 0.99" (25 mm).
2. Put the base into position under the transom. Leave a gap of
0.12" to 0.2" (3 to 5 mm) between the back of the base and
the vertical frames of the doors.
3. Using the 0.24" (6 mm) holes in the base as a drill guide, drill
0.24" (6 mm) holes in the transom. You may need to clamp the
base in position while doing this.
4. Use seven screws to hold the base in place.
5. If the belt sags, increase the belt tension as described above.
