1
D

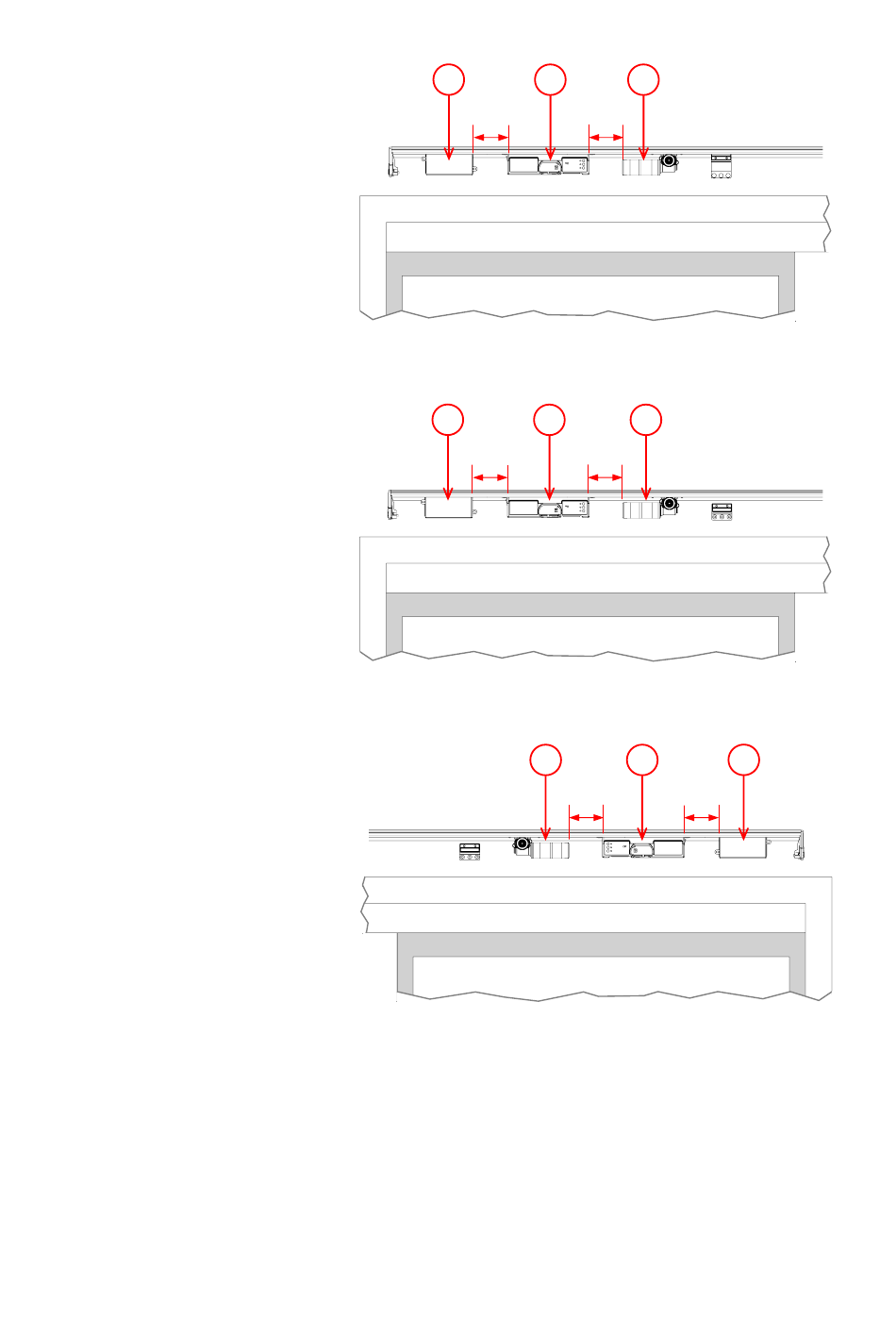

Figure 18: Bi-parting doors: AC adapter (1), controller (2), and
motor (3).
1
D
Figure 19: Right-opening door: AC adapter (1), controller (2), and
motor (3).
Figure 20: Left-opening door: AC adapter (1), controller (2), and
motor (3).
6. Tighten the slider nuts to hold the AC adapter and controller in
place.
7. Plug the motor cable into the controller (Figure 21) in a socket
labeled Motor.
8. Plug the AC adapter cable into the controller (Figure 21) in a
socket labeled Power.
MultiDrive
2 3
D
2 3
1
D
3 2
3
D D
1
