2. Slide the motor along the base until it is in front of left-hand
sliding door as shown in Figure 15, where:
A = 20-30% of the width B of that door
C = 1.97" (50 mm).
Note: If the top bracket does not fit in this position (Figure 15),
contact your MultiDrive supplier about obtaining a different
style of bracket that fits onto the right edge of the door.
3. Tighten the slider nuts to hold the motor in place.
4. Mark the position of the top bracket on both the base and the
left-hand sliding door as in Figure 15.

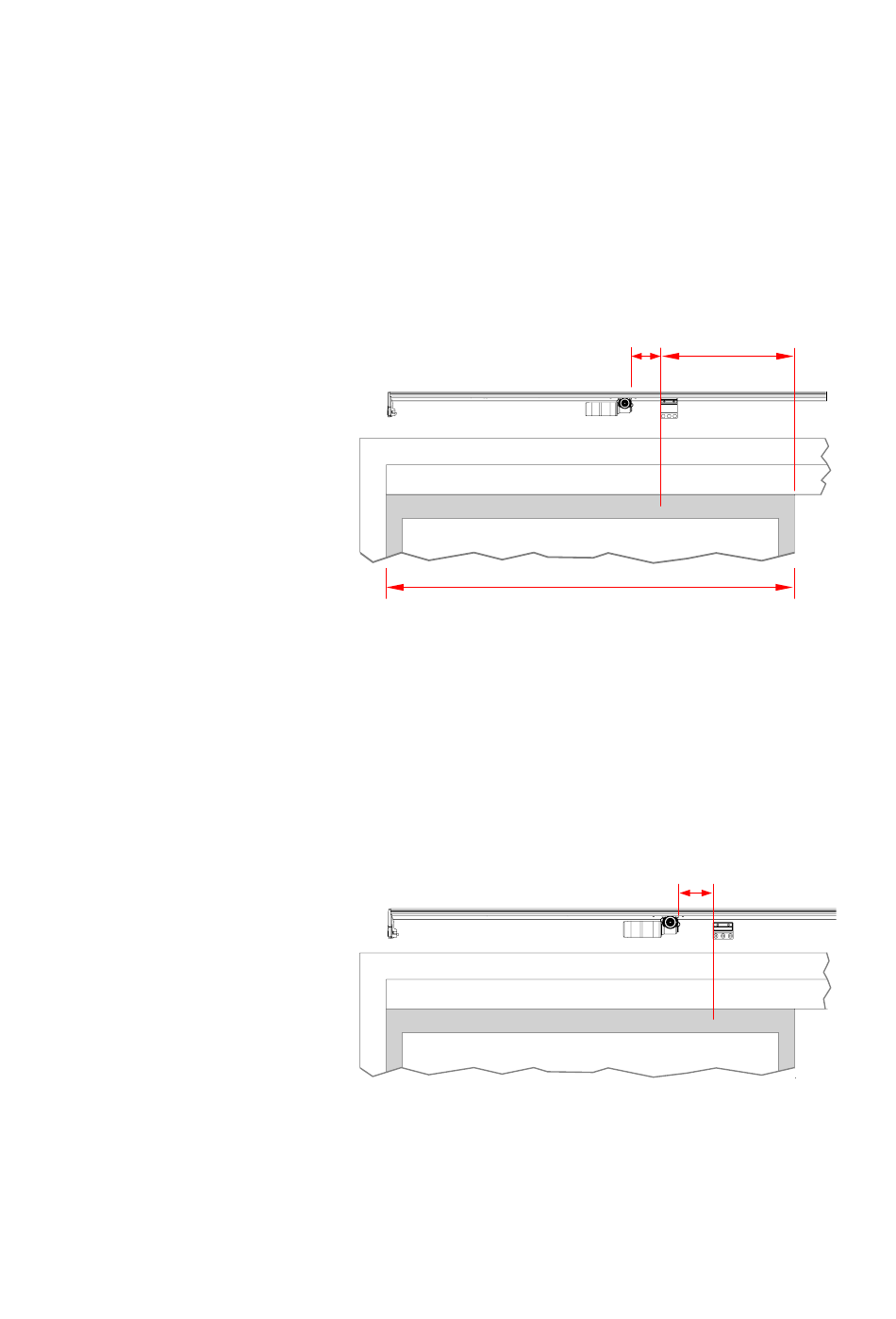

Figure 15: Bi-parting doors: motor and top bracket. The left side
is shown with left door open.
For left-opening doors (non-bi-parting):
1. Open the door fully.
2. Slide the motor along the base until it is 1.97" (50 mm) from
the mark you made on the door for the bottom bracket position
(Figure 13 and Figure 16, where C = 1.97" or 50 mm).
3. Tighten the slider nuts to hold the motor in place.
Note: Non-bi-parting doors do not use a top bracket.
Figure 16: Left-opening sliding door with motor and bottom
bracket. The left side is shown with the sliding door open.
For right-opening doors (non-bi-parting):
1. Open the door fully.
