Autoslide MultiDrive Installation Instructions Manual page 13

(a) Cover clips
© 2018 Autoslide Pty Ltd

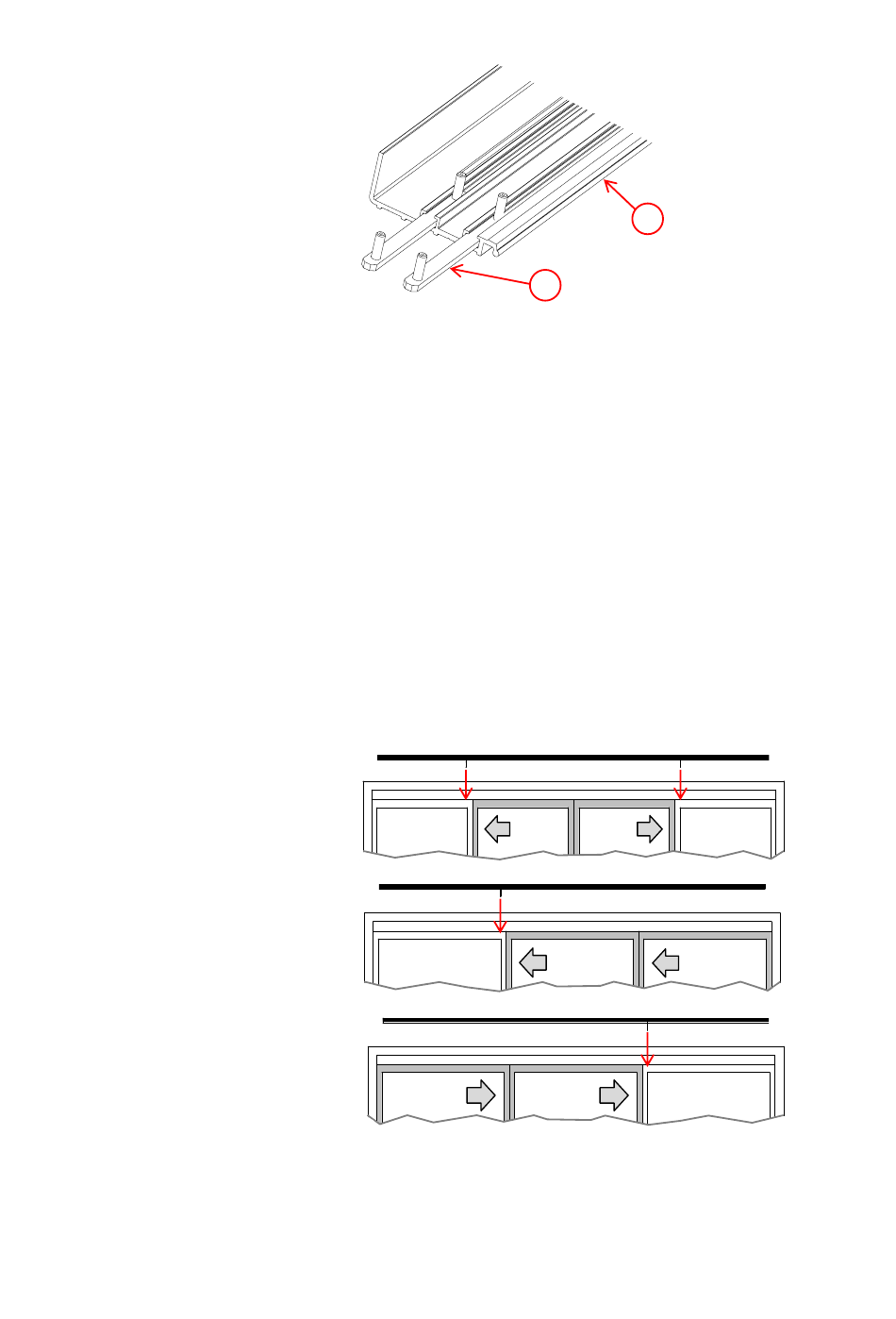

Figure 10: Sliders (1) in the two tracks on the base (2).
4. Use the following steps to set the position of each part on the
base.
Guidelines for using cover clips
•
Don't use cover clips over the door opening because they will
be visible from the opposite side of some doors.
•
Clips are not needed at the ends of the base because the end
caps support the cover there.
Steps
1. Use a cover clip behind the door frame of each fixed (non-
sliding) door (Figure 11). The door frame of the fixed door
hides the clip from view on the other side of the door.
Slide each cover clip onto the base as in Figure 11. Make sure
the other end of each cover clip (without sliders) points
towards the door.
Figure 11: Place a cover clip behind the door frame of each fixed
door.
2
1
DETAIL
H
SCALE 2 : 1
MultiDrive
13
