DO GUIDE

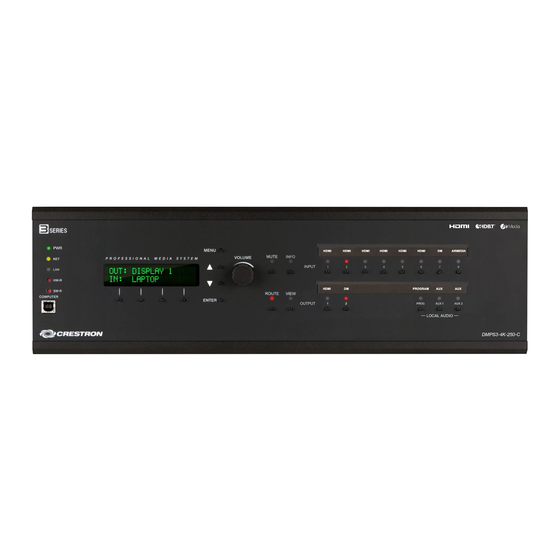

DMPS3-4K-200-C/DMPS3-4K-300-C
3-Series 4K DigitalMedia™ Presentation Systems
®
DO Install the Device
The DMPS3-4K-200-C and DMPS3-4K-300-C can be mounted into a rack or placed onto a flat surface.
Mounting into a Rack
The DMPS3-4K-200-C and DMPS3-4K-300-C occupy 3U of rack space.
Using a #1 or #2 Phillips screwdriver, attach the two included rack ears
to the device using the six included #6-32 x 5/16" Phillips screws (three
screws on each side). Then, mount the device into the rack using four
mounting screws (not included).
Placing onto a Flat Surface
When placing the device onto a flat surface or stacking it with other
equipment, attach the included feet near the corners on the underside of
the device.
DO Connect the Device
Connect the device as required for the application.
Connecting the DMPS3-4K-200-C
INPUT 1-4:
From sense output of
digital output devices
(24 volts maximum)
IR - SERIAL OUT 1-4: IR IN: RELAY 1-4:
To IRP2 IR emitter probe From Output to
COM A and COM B:
CNXRMIRD controllable
or one-way serial To/from
controlled devices IR receiver devices
RS-232 devices
AUD IN 1-5:
HDMI INPUTS 1-6: MC/LN 1-6:
From balanced/ From digital
From balanced
unbalanced stereo video/audio sources microphone/ output of a DM
line-level analog
line-level
audio sources other DM device
audio sources
HDBaseT
Mounting into a Rack
SPEAKER OUTPUT:
To 4-ohm/8-ohm
stereo speakers or SERVICE:
70-volt/100-volt For factory
mono speakers use only
PoDM+
INPUT PWR:
NET: From Crestron
To/from any PoDM+ power Power from
Cresnet device
® supply* line voltage
Ground
DM INPUT: HDMI OUTPUT: DM OUTPUT: CONTROL LAN:
From DM 8G+ To HDMI To DM 8G+ 10BASE-T/
® ® SUBNET:
® display input of a DM To Crestron 100BASE-TX/
transmitter or receiver or local 1000BASE-T
other DM device Ethernet to
network
or from an or to an device* LAN
® device* HDBaseT device*
PROG OUT: AUX OUT 1-2:
Audio output to
ampli er or teleconferencing
ampli ed speakers or codec input
DO Check the Box
QUANTITY PRODUCT
1 Cable, USB 2.0, A - B, 6' (1.83 m)
2 Bracket, Rack Ear, 3U
3 Connector, 2-Pin
1 Connector, 3-Pin
4 Connector, 4-Pin
15 Connector, 5-Pin
2 Connector, 8-Pin
4 Foot, 0.5" x 0.5" x 0.23", Adhesive
1 Power Cord, 6' 7" (2 m)
6 Screw, 6-32 x 5/16", Undercut Head, Phillips
Connecting the DMPS3-4K-300-C
INPUT 1-4:
From sense output of
digital output devices
(24 volts maximum)
IR - SERIAL OUT 1-4: IR IN:
To IRP2 IR emitter probe From
or one-way serial CNXRMIRD
controlled devices IR receiver
AUD IN 1-5: HDMI INPUTS 1-6:
From balanced/
unbalanced stereo video/audio sources
line-level analog
audio sources
DO Determine the Address of the Device
The DMPS3-4K-200-C and DMPS3-4K-300-C can be addressed using the hostname of the device. The default hostname is DMPS3-xxxxxxxx, where
xxxxxxxx consists of the last eight characters (excluding punctuation) of the MAC address. For example, if the MAC address is 00:10:7F:08:09:AA:05, the
default host name is DMPS3-0809AA05. The MAC address is labeled on the rear panel of the device.
Alternatively, the DMPS3-4K-200-C and DMPS3-4K-300-C can be addressed using the IP address of the device. By default, DHCP is enabled. To set a
static IP address, use any of the following:
• The Crestron Toolbox™ application on a PC that connects to the device via the Ethernet network
NOTE: The Device Discovery Tool can be used to find the current IP address.
• A USB connection to the COMPUTER port on the front panel of the device
• The front panel LCD display menu
To video
SPEAKER OUTPUT:
To 4-ohm/8-ohm
stereo speakers or
70-volt/100-volt
mono speakers
PoDM+
RELAY 1-4:
INPUT PWR:
Output to NET: From Crestron
COM A and COM B:
controllable
To/from To/from any PoDM+ power
devices Cresnet device
RS-232 devices ® supply*
DM OUTPUTS:
MC/LN 1-6: DM INPUTS: HDMI OUTPUTS
From digital From balanced From DM 8G+ 1-2: To DM 8G+
microphone/ output of a DM To HDMI input of a DM
receiver or
line-level transmitter or display
audio sources other DM device other DM device
or from an or to an
HDBaseT device* HDBaseT device*
COLOR PART NUMBER
2014966
2033588
2012361
2003575
2003576
2003577
2003580
Black 2002389
2001134
Black 2007223
SERVICE:
For factory
use only
Power from
line voltage
Ground
LAN:
CONTROL
SUBNET: 10BASE-T/
To Crestron 100BASE-TX/
1000BASE-T
local
network Ethernet to
device* LAN
PROG OUT: AUX OUT 1-2:
Audio output to To video
ampli er or teleconferencing
ampli ed speakers or codec input
