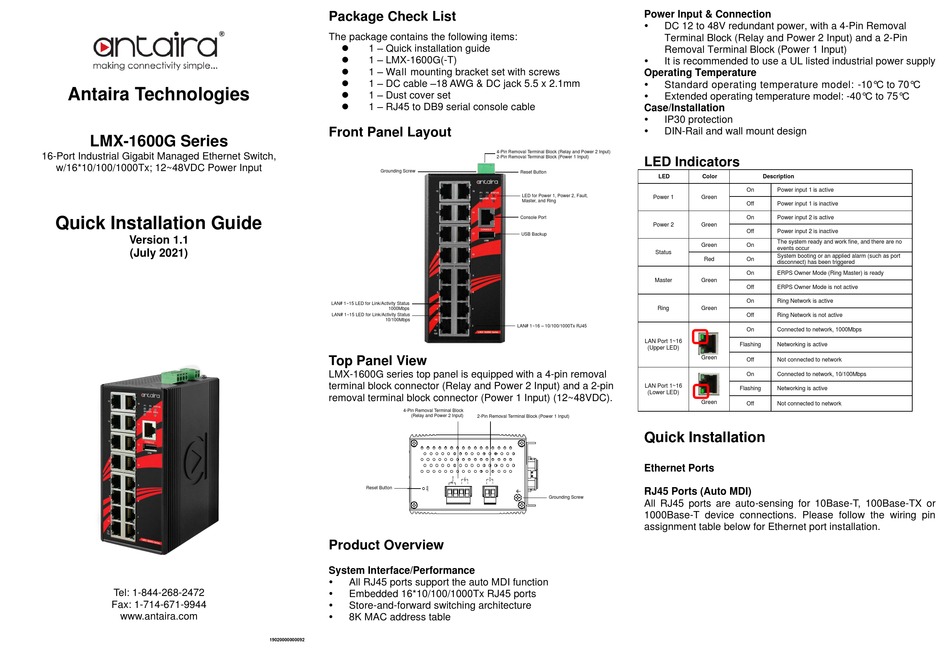

ANTAIRA LMX-1600G Series Quick Installation Manual

Antaira Technologies

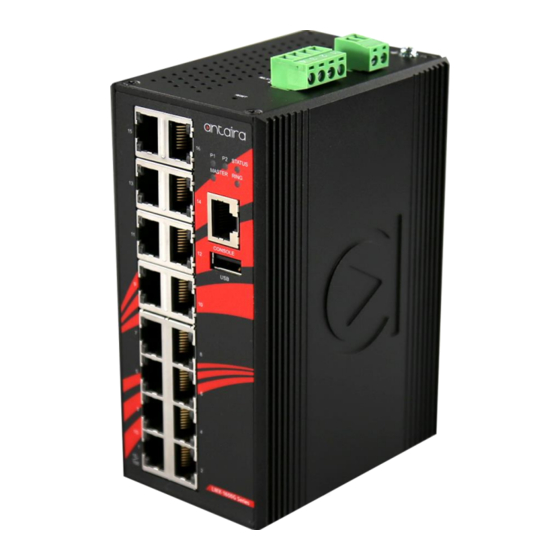

LMX-1600G Series
16-Port Industrial Gigabit Managed Ethernet Switch,
w/16*10/100/1000Tx; 12~48VDC Power Input
Quick Installation Guide
Version 1.1
(July 2021)
Tel: 1-844-268-2472
Fax: 1-714-671-9944
www.antaira.com

Package Check List

The package contains the following items:
⚫ 1 – Quick installation guide
⚫ 1 – LMX-1600G(-T)
⚫ 1 – Wall mounting bracket set with screws
⚫ 1 – DC cable –18 AWG & DC jack 5.5 x 2.1mm
⚫ 1 – Dust cover set
⚫ 1 – RJ45 to DB9 serial console cable

Front Panel Layout

Grounding Screw
LAN# 1~15 LED for Link/Activity Status
1000Mbps
LAN# 1~15 LED for Link/Activity Status
10/100Mbps

Top Panel View

LMX-1600G series top panel is equipped with a 4-pin removal
terminal block connector (Relay and Power 2 Input) and a 2-pin
removal terminal block connector (Power 1 Input) (12~48VDC).
4-Pin Removal Terminal Block
(Relay and Power 2 Input)
Reset Button

Product Overview

System Interface/Performance


All RJ45 ports support the auto MDI function

Embedded 16*10/100/1000Tx RJ45 ports

Store-and-forward switching architecture

8K MAC address table
19020000000092
Power Input & Connection



Operating Temperature




Case/Installation



4-Pin Removal Terminal Block (Relay and Power 2 Input)
2-Pin Removal Terminal Block (Power 1 Input)

LED Indicators

Reset Button
LED for Power 1, Power 2, Fault,
Power 1
Master, and Ring
Console Port
Power 2
USB Backup
LAN# 1~16 – 10/100/1000Tx RJ45
LAN Port 1~16
(Upper LED)
LAN Port 1~16
(Lower LED)
2-Pin Removal Terminal Block (Power 1 Input)

Quick Installation

Ethernet Ports

RJ45 Ports (Auto MDI)
Grounding Screw
All RJ45 ports are auto-sensing for 10Base-T, 100Base-TX or
1000Base-T device connections. Please follow the wiring pin
assignment table below for Ethernet port installation.
DC 12 to 48V redundant power, with a 4-Pin Removal
Terminal Block (Relay and Power 2 Input) and a 2-Pin
Removal Terminal Block (Power 1 Input)
It is recommended to use a UL listed industrial power supply
Standard operating temperature model: -10°C to 70°C
Extended operating temperature model: -40°C to 75°C
IP30 protection
DIN-Rail and wall mount design
LED Color Description
On Power input 1 is active
Green
Off Power input 1 is inactive
On Power input 2 is active
Green
Off Power input 2 is inactive
The system ready and work fine, and there are no
Green On
events occur
Status
System booting or an applied alarm (such as port
Red On
disconnect) has been triggered
On ERPS Owner Mode (Ring Master) is ready
Master Green
Off ERPS Owner Mode is not active
On Ring Network is active
Ring Green
Off Ring Network is not active
On Connected to network, 1000Mbps
Flashing Networking is active
Green
Off Not connected to network
On Connected to network, 10/100Mbps
Flashing Networking is active
Green
Off Not connected to network
