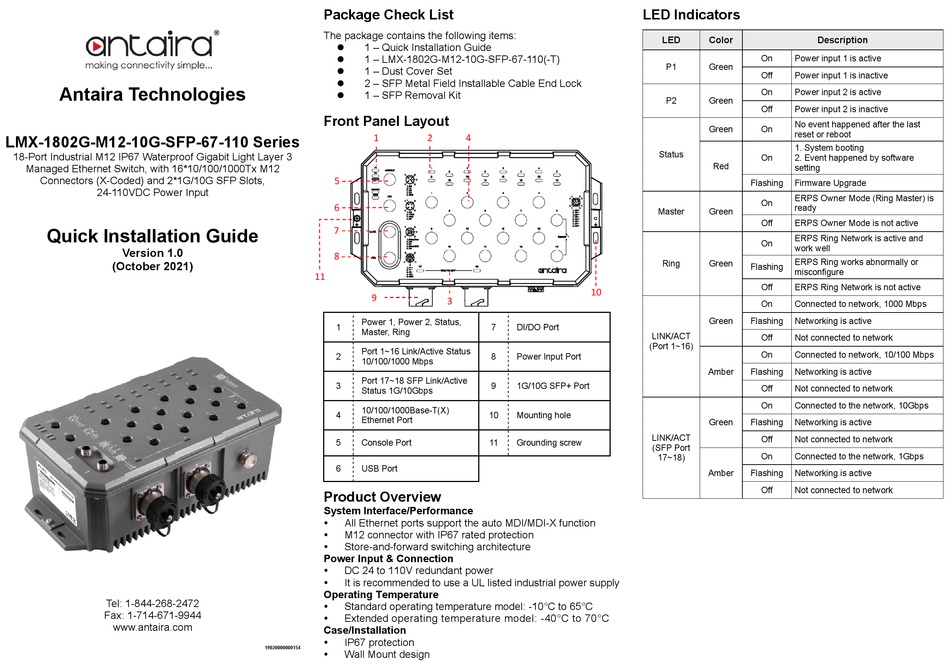

ANTAIRA LMX-1802G-M12-10G-SFP-67-110 Series Quick Installation Manual

Antaira Technologies

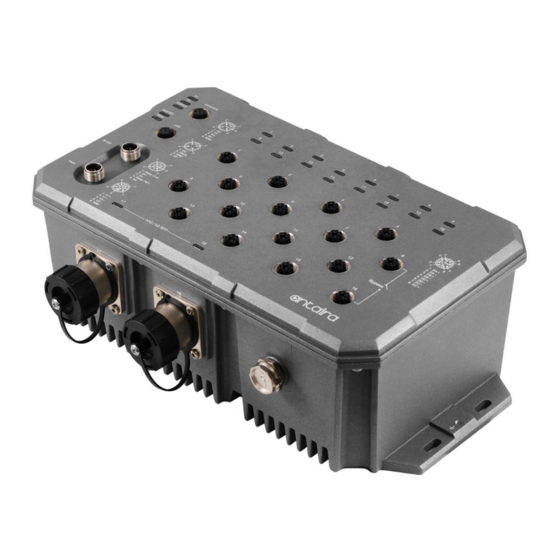

LMX-1802G-M12-10G-SFP-67-110 Series
18-Port Industrial M12 IP67 Waterproof Gigabit Light Layer 3
Managed Ethernet Switch, with 16*10/100/1000Tx M12
Connectors (X-Coded) and 2*1G/10G SFP Slots,
24-110VDC Power Input
Quick Installation Guide
Version 1.0
(October 2021)
Tel: 1-844-268-2472
Fax: 1-714-671-9944
www.antaira.com
Package Check List
The package contains the following items:
 1 – Quick Installation Guide
 1 – LMX-1802G-M12-10G-SFP-67-110(-T)
 1 – Dust Cover Set
 2 – SFP Metal Field Installable Cable End Lock
 1 – SFP Removal Kit
Front Panel Layout
1 2
5
6
7
8
11
9
Power 1, Power 2, Status,
1
Master, Ring
Port 1~16 Link/Active Status
2
10/100/1000 Mbps
Port 17~18 SFP Link/Active
3
Status 1G/10Gbps
10/100/1000Base-T(X)
4
Ethernet Port
5 Console Port
6 USB Port
Product Overview
System Interface/Performance
 All Ethernet ports support the auto MDI/MDI-X function
 M12 connector with IP67 rated protection
 Store-and-forward switching architecture
Power Input & Connection
 DC 24 to 110V redundant power
 It is recommended to use a UL listed industrial power supply
Operating Temperature
 Standard operating temperature model: -10°C to 65°C
 Extended operating temperature model: -40°C to 70°C
Case/Installation
 IP67 protection
19020000000154
 Wall Mount design
4
10
3
7 DI/DO Port
8 Power Input Port
9 1G/10G SFP+ Port
10 Mounting hole
11 Grounding screw
LED Indicators
LED Color Description
On Power input 1 is active
P1 Green
Off Power input 1 is inactive
On Power input 2 is active
P2 Green
Off Power input 2 is inactive
No event happened after the last
Green On
reset or reboot
1. System booting
Status
On 2. Event happened by software
Red
setting
Flashing Firmware Upgrade
ERPS Owner Mode (Ring Master) is
On
ready
Master Green
Off ERPS Owner Mode is not active
ERPS Ring Network is active and
On
work well
ERPS Ring works abnormally or
Ring Green
Flashing
misconfigure
Off ERPS Ring Network is not active
On Connected to network, 1000 Mbps
Green Flashing Networking is active
LINK/ACT
Off Not connected to network
(Port 1~16)
On Connected to network, 10/100 Mbps
Amber Flashing Networking is active
Off Not connected to network
On Connected to the network, 10Gbps
Green Flashing Networking is active
LINK/ACT
Off Not connected to network
(SFP Port
On Connected to the network, 1Gbps
17~18)
Amber Flashing Networking is active
Off Not connected to network
