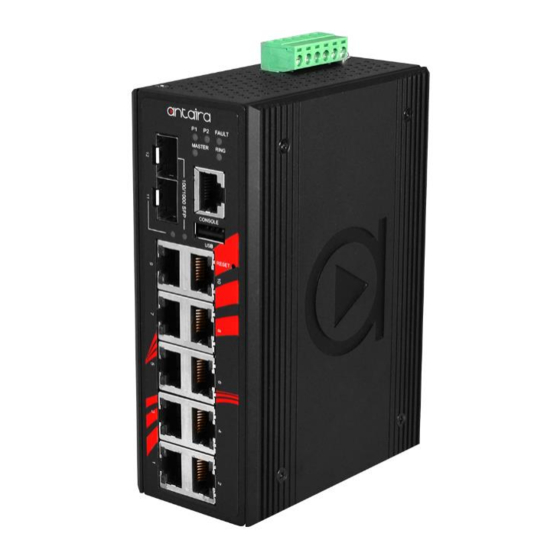

- Page 1 LMX-1202G-SFP Series 12-Port Industrial Gigabit Light Layer 3 Managed Ethernet Switch, with 10*10/100/1000Tx and 2*100/1000 SFP Slots Hardware Manual Version 2.0 (December 2020) ...
- Page 2 Antaira Technologies, LLC may make improvements and/or changes to the product and/or specifications of the product described in this manual, without prior notice. Antaira Technologies, LLC will not be liable for any technical inaccuracies or typographical errors found in this guide. Changes are periodically made ...
- Page 3 Antaira Technologies - Industrial Ethernet Switch LMX-1202G-SFP Series - Hardware Manual - v2.0 Reorient or relocate the receiving antenna. ● ● Increase the separation between the equipment and receiver. ● Connect the equipment into an outlet on a circuit different from that to which the receiver is ...
- Page 4 Antaira Technologies - Industrial Ethernet Switch LMX-1202G-SFP Series - Hardware Manual - v2.0 ATEX Certification ATEX Marking String: I I 3G Ex nA nC IIC T4 Gc ATEX Certificate No.: DEMKO 18 ATEX 2104X Standards: EN 60079-0:2012 + A11:2013, EN 60079-15:2010 ...
-
Page 5: Table Of Contents
Antaira Technologies - Industrial Ethernet Switch LMX-1202G-SFP Series - Hardware Manual - v2.0 Table of Contents 1 Overview 1 1.1 Product Hardware Features 1 1.2 Product Software Features 2 1.3 Package Contents 2 1.4 Safety Precaution 3 2 Hardware Description 4 ... -
Page 6: Overview
TCP, and 802.1X/ HTTPS/ SSH/ SSL increase determinism and improve network management for remote SCADA systems or control networks. The LMX-1202G-SFP series is IP30 rated and DIN-rail mountable. There are also two wide operating temperature models for either a standard temperature range (STD: -10°C to 70°C) or an extended ... -
Page 7: Product Software Features
Antaira Technologies - Industrial Ethernet Switch LMX-1202G-SFP Series - Hardware Manual - v2.0 Installation in a Pollution Degree 2 industrial environment 1.2 Product Software Features Network Redundancy STP, RSTP, MSTP, ITU-T G.8032 Ethernet Ring Protection Switch (ERPS) for network redundancy ... -
Page 8: Safety Precaution
Antaira Technologies - Industrial Ethernet Switch LMX-1202G-SFP Series - Hardware Manual - v2.0 1.4 Safety Precaution Attention: If the DC voltage is supplied by an external circuit, please use a protection device on the power supply input. The industrial Ethernet switch’s hardware specs, ports, cabling information, and wiring ... -
Page 9: Hardware Description
Antaira Technologies - Industrial Ethernet Switch LMX-1202G-SFP Series - Hardware Manual - v2.0 2 Hardware Description 2.1 Physical Dimensions Figure 2.1 , below, shows the physical dimensions of this product series: (W x D x H) is 54mm x 99mm x 142mm ... -
Page 10: Front View Panel
Antaira Technologies - Industrial Ethernet Switch LMX-1202G-SFP Series - Hardware Manual - v2.0 2.2 Front View Panel Figure 2.2 , below, shows the front panel of the product series: Figure 2.2 - Front View Panel WARNING! Airflow around the switch must be unrestricted. To prevent the switch from overheating, ... -
Page 11: Top View Panel
Antaira Technologies - Industrial Ethernet Switch LMX-1202G-SFP Series - Hardware Manual - v2.0 2.3 Top View Panel Figure 2.3 , below, shows the top panel of the product series: Figure 2.3 - Top View Panel 2.4 LED Indicators There are LED light indicators located on the front panel of the industrial Ethernet switch that display the ... -
Page 12: Reset Button
Antaira Technologies - Industrial Ethernet Switch LMX-1202G-SFP Series - Hardware Manual - v2.0 On Connected to network, 1000Mbps LAN Port 1~10 Flashing Networking is active (Upper LED) Green Off Not connected to network On Connected to network, 10/100Mbps LAN Port 1~10 Flashing ... -
Page 13: Ethernet Ports
Antaira Technologies - Industrial Ethernet Switch LMX-1202G-SFP Series - Hardware Manual - v2.0 2.6 Ethernet Ports RJ45 Ports ● RJ45 Ports (Auto MDI/MDI-X): The RJ45 ports are auto-sensing for 10Base-T, 100Base-TX, or 1000Base-T connections. Auto MDI means that the switch can connect to another switch or workstation ... -
Page 14: Cabling
Antaira Technologies - Industrial Ethernet Switch LMX-1202G-SFP Series - Hardware Manual - v2.0 2.7 Cabling Use the four twisted-pair, category 5e, or the above cabling for the RJ45 port connections. The cable between the switch and the link partner (switch, hub, workstation, etc.) must be less than 100 meters (328 ... -
Page 15: Wiring The Fault Alarm Contact
Antaira Technologies - Industrial Ethernet Switch LMX-1202G-SFP Series - Hardware Manual - v2.0 Tighten the wire-clamp screws to prevent the wires from loosening, as shown below in F igure 2.7 . Figure 2.7 - Power Terminal Block Caution: ... -
Page 16: Grounding Note
Antaira Technologies - Industrial Ethernet Switch LMX-1202G-SFP Series - Hardware Manual - v2.0 Caution: The wire gauge for the terminal block should range between 12 ~ 24 AWG. If only using one power source, jumper Pin 1 to Pin 5 and Pin 2 to Pin 6 to eliminate power fault ... -
Page 17: Mounting Installation
Antaira Technologies - Industrial Ethernet Switch LMX-1202G-SFP Series - Hardware Manual - v2.0 3 Mounting Installation 3.1 DIN-Rail Mounting The DIN-Rail is pre-installed on the industrial Ethernet switch from the factory. If the DIN-Rail is not on the industrial Ethernet switch, please see F igure 3.1 to learn how to install the DIN-Rail on the switch. ... -
Page 18: Wall Mounting
Antaira Technologies - Industrial Ethernet Switch LMX-1202G-SFP Series - Hardware Manual - v2.0 Figure 3.2 - Insert the Switch on the DIN-Rail Figure 3.3 - Stable the Switch on the DIN-Rail 3.2 Wall Mounting Follow the steps below to mount the industrial Ethernet switch using the wall mounting bracket as shown ... - Page 19 Antaira Technologies - Industrial Ethernet Switch LMX-1202G-SFP Series - Hardware Manual - v2.0 Figure 3.4 - Remove DIN-Rail bracket from the Switch Below, in F igure 3.5 are the dimensions of the wall mounting bracket. Figure 3.5 - Wall Mounting Bracket Dimensions ...
-
Page 20: Hardware Installation
Antaira Technologies - Industrial Ethernet Switch LMX-1202G-SFP Series - Hardware Manual - v2.0 4 Hardware Installation 4.1 Installation Steps This section will explain how to install the industrial Ethernet switch: C aution: This device is intended for indoor use. ... -
Page 21: Maintenance And Service
Antaira Technologies - Industrial Ethernet Switch LMX-1202G-SFP Series - Hardware Manual - v2.0 The Ethernet port’s (RJ45) LED on the industrial Ethernet switch will turn on when the cable is ● connected to the networking device. ● Please refer to the L ED Indicators section for LED light indication. ... - Page 22 Antaira Technologies - Industrial Ethernet Switch LMX-1202G-SFP Series - Hardware Manual - v2.0 Please contact Antaira for technical support service if the problem still cannot be ○ resolved. ● If the industrial switch LED indicators are normal and the connected cables are correct but the ...
-
Page 23: Technical Specifications
Antaira Technologies - Industrial Ethernet Switch LMX-1202G-SFP Series - Hardware Manual - v2.0 5 Technical Specifications Table 5.1 has the technical specifications for this product series. Technology Port/MAC/Protocol/IP Subnet-based VLAN, GARP/GVRP, Loop Guard, Link Aggregation static/LACP, BPDU guard, Error L2 Switching ... - Page 24 Antaira Technologies - Industrial Ethernet Switch LMX-1202G-SFP Series - Hardware Manual - v2.0 MAC Table Size 8K VLAN Group 4095 IGMP Group 1024 Port Interface 10*10/100/1000BaseTx Ethernet Port Auto-negotiation speed, Full/Half duplex mode, and auto MDI/MDI-X connection SFP Port 2*100/1000 SFP slots ...
- Page 25 (Antaira US Headquarter) + 844-268-2472 (Antaira Europe Office) +48-22-862-88-81 (Antaira Asia Office) +886-2-2218-9733 Please report any problems to Antaira: www.antaira.com / upport@antaira.com www.antaira.eu / nfo@antaira.eu www.antaira.com.tw / nfo@antaira.com.tw Any changes to this material will be announced on the Antaira website. 20 ...
