b. Place the Rack Buddy over the left front vertical rack rail. See the next figure.
c. Move the bottom of the Rack Buddy to the location on the rack rail where the
bottom of the system will be located.
d. Adjust the Rack Buddy until the lower retainer opening is centered on the hole
in the rail.
e. Looking through the three middle holes on the Rack Buddy, locate and mark
the two rack rail holes that are most visible through the template.
Use these two rack rail holes to attach the slide assembly to the front rail. You will
only use two of the three holes to attach the slide assembly. Mark the
corresponding holes on the right front vertical rack rail.
10 Sun Fire 280R Server Setup and Rackmounting Guide • January 2001

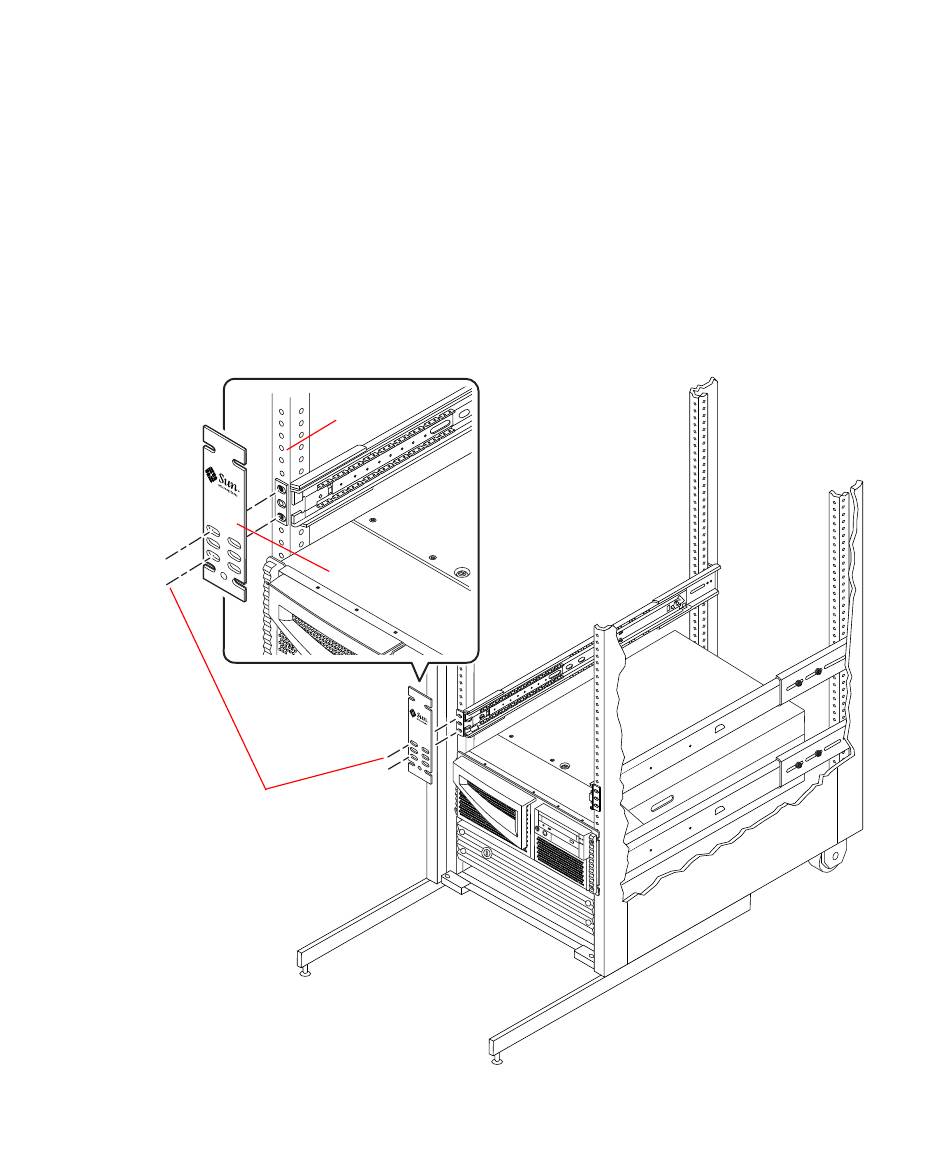

Rail
holes
Rack Buddy
Server slide
mounting
holes
