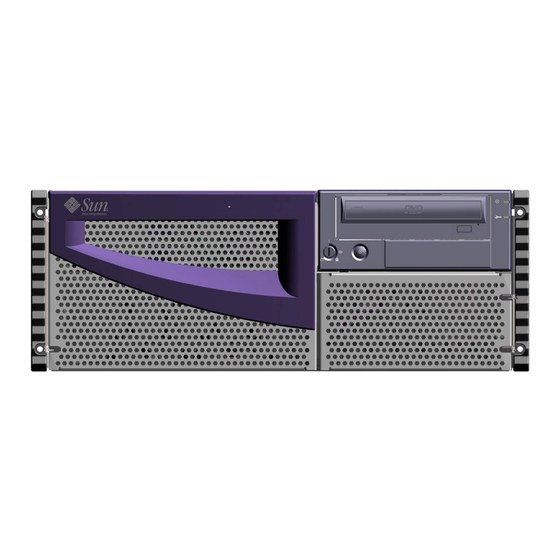

Page 1 Sun Fire 280R Server ™ Service Manual Sun Microsystems, Inc. 901 San Antonio Road Palo Alto, CA 94303-4900 U.S.A. 650-960-1300 Part No. 806-4807-10 January 2001, Revision A Send comments about this document to: docfeedback@sun.com...
Page 2 Sun, Sun Microsystems, the Sun logo, AnswerBook2, docs.sun.com, Sun Enterprise, Sun Fire, OpenBoot, Java, and Solaris are trademarks, registered trademarks, or service marks of Sun Microsystems, Inc. in the U.S. and other countries. All SPARC trademarks are used under license and are trademarks or registered trademarks of SPARC International, Inc.
Page 3: Regulatory Compliance Statements
FCC radio frequency emission limits. Networking connections can be made using unshielded twisted-pair (UTP) cables. Modifications: Any modiﬁcations made to this device that are not approved by Sun Microsystems, Inc. may void the authority granted to the user by the FCC to operate this equipment.
Page 4: Bsmi Class A Notice
BSMI Class A Notice The following statement is applicable to products shipped to Taiwan and marked as Class A on the product compliance label. Sun Fire 280R Server Service Manual • January 2001...
Page 5: Declaration Of Conformity
Declaration of Conformity Compliance Model Number: 350R Product Name: Sun Fire 280R server European Union This equipment complies with the following requirements of the EMC Directive 89/336/EEC: EN55022:1998/CISPR22:1997 Class A EN550024:1998 EN61000-4-2 4 kV (Direct), 8 kV (Air) EN61000-4-3 3 V/m EN61000-4-4 1.0 kV AC Power Lines, 0.5 kV Signal DC &...
Page 6 Sun Fire 280R Server Service Manual • January 2001...
Page 7: Safety Agency Compliance Statements
Off - Removes AC power from the system. Read this section before beginning any procedure. The following text provides safety precautions to follow when installing a Sun Microsystems Sun Fire 280R server. Standby – The On/Standby switch is in the Safety Precautions standby position.
Page 8: Power Cord Connection
Sun products that use laser technology comply with Class 1 system chassis. laser requirements. Class 1 Laser Product Luokan 1 Laserlaite Klasse 1 Laser Apparat Laser KLasse 1 viii Sun Fire 280R Server Service Manual • January 2001...
Page 9 übereinstimmen, die auf dem Etikett mit den Nehmen Sie keine mechanischen oder elektrischen elektrischen Nennwerten des Geräts angegeben sind. Änderungen an den Geräten vor. Sun Microsystems, Stecken Sie auf keinen Fall irgendwelche Gegenstände übernimmt bei einem Sun-Produkt, das geändert wurde, in Öffnungen in den Geräten.
Page 10 Netzkabel nicht an, wenn das Netzteil aus der Abdeckung besteht die Gefahr von Systemeinheit entfernt wurde. Stromschlag und Systemschäden. Einhaltung der Richtlinien für Laser Sun-Produkte, die mit Laser-Technologie arbeiten, entsprechen den Anforderungen der Laser Klasse 1. Sun Fire 280R Server Service Manual • January 2001...
Page 11 Modification du matériel flammes, des risques d’électrocution ou des dégâts Ne pas apporter de modification mécanique ou électrique matériels. au matériel. Sun Microsystems n’est pas responsable de la conformité réglementaire d’un produit Sun qui a été Symboles modifié. Vous trouverez ci-dessous la signification des différents symboles utilisés :...
Page 12 Elles risquent d’exploser en cas de mauvais traitement. Ne pas jeter la batterie au feu. Ne pas la démonter ni tenter de la recharger. Sun Fire 280R Server Service Manual • January 2001...
Page 13: Normativas De Seguridad
Bloc-batterie CD-ROM Attention: – Les unités Sun Fire 280R server Attention: – L’utilisation de contrôles, de contiennent une batterie étanche au plomb réglages ou de performances de procédures (produits énergétiques portatifs n˚TLC02V50). autre que celle spécifiée dans le présent Il existe un risque d’explosion si ce bloc- document peut provoquer une exposition à...
Page 14: Cumplimiento De La Normativa Selv
Precaución – De acuerdo con la norma DIN 45 635, Parte 1000, se admite un nivel de presión acústica para puestos de trabajo máximo de 70Db(A). Sun Fire 280R Server Service Manual • January 2001...
Page 15: Nordic Lithium Battery Cautions
Paquete de pilas distintos a los aquí especificados pueden exponer al usuario a radiaciones peligrosas. Precaución – Las unidades Sun Fire 280R server contienen una pila de plomo sellada, GOST-R Certification Mark Productos de energía portátil nº TLC02V50.
Page 16 Levér det brugte batteri tilbage til leverandøren. Suomi VAROITUS – Paristo voi räjähtää, jos se on virheellisesti asennettu. Vaihda paristo ainoastaan laitevalmistajan suosittelemaan tyyppiin. Hävitä käytetty paristo valmistajan ohjeiden mukaisesti. Sun Fire 280R Server Service Manual • January 2001...
Page 17: Table Of Contents
Contents Regulatory Compliance Statements iii Declaration of Conformity v Safety Agency Compliance Statements vii Preface xxi Preparing to Service the System 1 About the Status and Control Panel 2 How to Power Off the System 5 How to Power On the System 6 How to Power On the System With Full Diagnostics Enabled 9 How to Initiate a Reconfiguration Boot 12 Tools Required for Installation and Service 14...
Page 18 How to Remove a Disk Drive Using the Hot-Plug Operation 97 How to Install a Disk Drive Using the Hot-Plug Operation 101 How to Remove the Removable Media Assembly 104 How to Replace the Removable Media Assembly 107 xviii Sun Fire 280R Server Service Manual • January 2001...
Page 19 How to Remove a DVD-ROM or Tape Drive 110 How to Install a DVD-ROM or Tape Drive 111 Removing and Replacing Backplanes and Cables 113 How to Remove the FC-AL Backplane 113 How to Replace the FC-AL Backplane 116 How to Remove the Power Distribution Board 118 How to Replace the Power Distribution Board 122 About the System Cables 126 How to Connect the System Cables 130...
Page 20 How to Exercise the System 194 Connector Signal Descriptions 199 System Specifications 213 Illustrated Parts Breakdown 217 Sun Fire 280R Server Service Manual • January 2001...
Page 21: Preface
Service providers who would like more general information about the system should refer to the appropriate chapter or section in the Sun Fire 280R Server Owner’s Guide.
Page 22: How This Book Is Organized
See one or more of the following for this information: Solaris Handbook for Sun Peripherals AnswerBook2™ online documentation for the Solaris™ operating environment Other software documentation that you received with your system xxii Sun Fire 280R Server Service Manual • January 2001...
Page 23: Typographic Conventions
Typographic Conventions Typeface Meaning Examples The names of commands, files, Edit your.login file. AaBbCc123 and directories; on-screen Use ls -a to list all files. computer output % You have mail. What you type, when AaBbCc123 contrasted with on-screen Password: computer output AaBbCc123 Book titles, new words or terms, Read Chapter 6 in the User’s Guide.
Page 24: Related Documentation
Platform Notes: The eri FastEthernet Driver Using operating system software Solaris User’s Guide Miscellaneous Solaris 8 on Sun Hardware Collection Solaris on Sun Hardware AnswerBook Solaris Handbook for Sun Peripherals xxiv Sun Fire 280R Server Service Manual • January 2001...
Page 25 Ordering Sun Documentation Fatbrain.com, an Internet professional bookstore, stocks select product documentation from Sun Microsystems, Inc. For a list of documents and how to order them, visit the Sun Documentation Center on Fatbrain.com at: http://www.fatbrain.com/documentation/sun...
Page 26: Sun Welcomes Your Comments
Sun is interested in improving its documentation and welcomes your comments and suggestions. You can email your comments to Sun at: docfeedback@sun.com Please include the part number (806-4807-10) of your document in the subject line of your email. xxvi Sun Fire 280R Server Service Manual • January 2001...
Page 27: Preparing To Service The System
C H A P T E R Preparing to Service the System This chapter tells you what you need to know about preparing for and completing service procedures. Except for removing and installing disk drives, this system should be serviced by a qualified Sun service provider.
Page 28: About The Status And Control Panel
“Keyswitch Settings” on page 3 and “System LED Indicators” on page 4. LED indicators Keyswitch and Power button Power LED Power- On/Off position System fault LED Power button Keyswitch Diagnostics position Locked position Off position Sun Fire 280R Server Service Manual • January 2001...
Page 29: Keyswitch Settings
Keyswitch Settings The front panel keyswitch controls the power-on modes of the system. The following table describes the function of each switch setting. Keyswitch Setting Icon Description Power-On/Off This setting enables the system’s Power button to power on, or to power off, the system. If Solaris software is running, quickly pressing and releasing the Power button initiates a graceful system shutdown.
Page 30: System Led Indicators
This amber LED lights steadily if there is a single system fan failure, or lit by software. See “Diagnostics, Monitoring, and Troubleshooting” on page 155 for information about troubleshooting your server. Sun Fire 280R Server Service Manual • January 2001...
Page 31: How To Power Off The System
How to Power Off the System In general, system administrators bring the operating system and applications to a halt in an orderly manner, warning the system users and others of a system shutdown. Follow the instructions below to accomplish an orderly shutdown of the server.
Page 32: How To Power On The System
For information, see: “How to Attach an Alphanumeric Terminal” on page 38 “How to Configure a Local Graphics Console” on page 39 Sun Fire 280R Server Service Manual • January 2001...
Page 33: What To Do
Note – If you have just installed an internal or external storage device other than a Fibre Channel-Arbitrated Loop (FC-AL) drive or a Universal Serial Bus (USB) device, or any new part that plugs in to the main logic board, bring up the system after performing a reconfiguration boot ( boot -r The operating system cannot recognize newly added devices or parts until you have...
Page 34 Note – The system may take anywhere from 30 seconds to several minutes before video is displayed on the system console or the ok prompt appears on an attached terminal. This time depends on the level of power-on self-test (POST) diagnostics being performed. Sun Fire 280R Server Service Manual • January 2001...
Page 35: How To Power On The System With Full Diagnostics Enabled
5. Turn the keyswitch to the Locked position. The Locked position prevents accidentally powering-off the system. See “Keyswitch Settings” on page 3 for information about each keyswitch setting. Locked position How to Power On the System With Full Diagnostics Enabled Before You Begin If a local graphics console or ASCII terminal is not already connected to the system, you need to install one before performing the startup procedure.
Page 36 “How to Power Off the System” on page 5. Caution – Before you power on the system, make sure that the top cover and front doors are properly installed. See “How to Replace the System Cover” on page 33. Sun Fire 280R Server Service Manual • January 2001...
Page 37 1. Turn on power to any peripherals and external storage devices. Read the documentation supplied with the device for specific instructions. 2. Turn on power to the local graphics console or ASCII terminal. A local graphics console or ASCII terminal is required for viewing system messages. For setup instructions, see “How to Attach an Alphanumeric Terminal”...
Page 38: How To Initiate A Reconfiguration Boot
Performing a reconfiguration boot is not necessary after hot-plugging a disk drive or a USB device. Sun Fire 280R Server Service Manual • January 2001...
Page 39 What to Do Caution – Never move the system when system power is on. Movement can cause catastrophic disk drive failure. Always power off the system before moving it. For more information, see “How to Power Off the System” on page 5. Caution –...
Page 40: Tools Required For Installation And Service
Note – Sliding the system out of the rack is not required for servicing disk drives and power supplies. Sun Fire 280R Server Service Manual • January 2001...
Page 41: Before You Begin
Before You Begin Caution – Unless the rack is bolted to the floor, you must extend the cabinet’s anti- tip legs and adjust their stabilizing feet to the floor. You must level and secure the cabinet to provide a safe working environment. See “Tools Required for Installation and Service”...
Page 42 Use a Phillips No. 2 screwdriver to loosen the captive screws, which are in recessed access holes in the decorative panels affixed to the system’s front panel. Sun Fire 280R Server Service Manual • January 2001...
Page 43: What Next
5. Slide the system chassis evenly out of the rack enclosure until the inner glides stop in the slide. Grasp the system’s front bezel and pull the system smoothly out of the enclosure. Continue pulling the system until the back of the chassis clears the enclosure and you hear the flat spring catches in the glides engage with an audible clicking sound.
Page 44: How To Slide The System Into The Rack
How to Slide the System Into the Rack Before You Begin If you have been working inside the system, see: “How to Replace the System Cover” on page 33 Sun Fire 280R Server Service Manual • January 2001...
Page 45 What to Do 1. Release the two flat spring catches that lock the system into its current position. Press in on both spring catches to free the system glides. One flat spring catch is attached to each inner glide on the system chassis, as shown in the following figure. 2.
Page 46 4. Connect all external cables that were attached to the back panel of the system. Examine each disconnected cable for information indicating the cable’s origin and its terminating connection. 5. Replace, close, and lock the rack enclosure doors, as appropriate. Sun Fire 280R Server Service Manual • January 2001...
Page 47: How To Remove The System From The Rack
What Next To power on the system, see: “How to Power On the System” on page 6 How to Remove the System From the Rack You must remove the system from the rack when doing the following: Removing and replacing the main logic board Removing and replacing the power distribution board You can perform all other procedures while the system is still attached to the rails extended from the rack.
Page 48 Also agree on a route to follow, and visually inspect it for potential safety hazards (for example, cables on the floor, other people working in the vicinity, and so on). Sun Fire 280R Server Service Manual • January 2001...
Page 49 4. Locate the flat spring catch shown in the following figure. Each person should visually locate one of the two flat spring catches that release the system from the rack glide. One catch is attached to each inner glide, as shown in the following figure.
Page 50: How To Place The System Into The Rack
This procedure assumes that the slide assembly is already installed in the rack. For further information on assembling the slide assemblies and rack enclosures, see the Sun Fire 280R Server Setup and Rackmounting Guide. Sun Fire 280R Server Service Manual • January 2001...
Page 51 Caution – The chassis is heavy. Two persons are required to place the system into the rack slide assembly in the following procedure. Before You Begin Complete the following tasks: Identify a helper to assist you in removing the system. Verify that your helper can safely lift and carry 34 lb (17 kg), which is approximately half the weight of a fully-equipped system.
Page 52 3. Lift the system. Each person should place both hands beneath the chassis and support half the weight of the system. 4. Carry the system to the front of the rack enclosure. Sun Fire 280R Server Service Manual • January 2001...
Page 53 5. Insert the system glides into the inner slides of the rack glides. Verify that the empty rack slides are completely inside their protective outer glides. Slide the ball-bearing runner forward as far as it will go in the slide. Slide the crimped end of each system glide into the corresponding inner slide.
Page 54 7. Simultaneously press in on both flat spring catches and slide the system completely into the rack. Each person presses one spring catch and helps slide the system completely into the rack enclosure. Spring catch Sun Fire 280R Server Service Manual • January 2001...
Page 55 8. Secure the system to the left and right vertical rails at the front of the rack. Use a Phillips No. 2 screwdriver to tighten the four captive screws that secure the system in the rack enclosure. These screws are in recessed access holes in the decorative panels affixed to the system’s front panel.
Page 56: How To Remove The System Cover
Caution – To ensure adequate cooling and airflow, the system must run at all times with the cover closed. Do not operate the system while the system cover is removed. Complete this task: “How to Position the System for Service” on page 14 Sun Fire 280R Server Service Manual • January 2001...
Page 57 What to Do 1. Unlock the system cover. Use the front door key; turn the key counterclockwise to release the system cover lock. 2. Using a No. 2 Phillips screwdriver, loosen the three captive screws securing the cover to the enclosure. Chapter 1 Preparing to Service the System...
Page 58 What Next You are now ready to install, remove, or replace components inside the system chassis. To reassemble the system, see: “How to Replace the System Cover” on page 33 Sun Fire 280R Server Service Manual • January 2001...
Page 59: How To Replace The System Cover
How to Replace the System Cover Before You Begin Caution – To ensure adequate cooling and airflow, the system must run at all times with the cover closed. Do not operate the system while the system cover is removed. What to Do 1.
Page 60 “How to Slide the System Into the Rack” on page 18 “How to Power On the System” on page 6 If you reconfigured the system, complete the following procedure: “How to Initiate a Reconfiguration Boot” on page 12 Sun Fire 280R Server Service Manual • January 2001...
Page 61: How To Avoid Electrostatic Discharge
How to Avoid Electrostatic Discharge Use the following procedure to prevent static damage whenever you are accessing any of the internal components of the system. Before You Begin Complete these tasks: “How to Power Off the System” on page 5 “How to Position the System for Service”...
Page 62 4. Detach both ends of the strap after you have completed the installation or service procedure. What Next To reassemble the system, see: “How to Replace the System Cover” on page 33 Sun Fire 280R Server Service Manual • January 2001...
Page 63: About Communicating With The System
98, or Windows NT operating environment and Sun’s RSC Java™ application, or from an ASCII terminal or device running ASCII terminal emulation software. See your Sun Fire 280R Server Owner’s Guide for more information. Chapter 1 Preparing to Service the System...
Page 64: How To Attach An Alphanumeric Terminal
Sun system. See “About Communicating With the System” on page 37 for more information. What to Do 1. Connect the terminal’s data cable to the serial port A connector on the back panel. Sun Fire 280R Server Service Manual • January 2001...
Page 65: How To Configure A Local Graphics Console
2. Connect the terminal’s power cable to an AC outlet. 3. Set the terminal to receive: At 9600 baud An 8-bit signal with no parity and 1 stop bit See the documentation accompanying your terminal for more information. What Next You can now issue system commands from the terminal keyboard and view system messages.
Page 66 “How to Install a PCI Card” on page 61 or contact your qualified service provider. 2. Attach the monitor video cable to the graphic card’s video port. Tighten the thumbscrews to secure the connection. Sun Fire 280R Server Service Manual • January 2001...
Page 67 3. Connect the monitor’s power cord to an AC outlet. 4. Connect the keyboard USB cable to any USB port on the back panel. Chapter 1 Preparing to Service the System...
Page 68 5. Connect the mouse USB cable to any USB port on the back panel. What Next You can now issue system commands from the keyboard and view system messages. Continue with your installation or diagnostic procedure as needed. Sun Fire 280R Server Service Manual • January 2001...
Page 69: Servicing The Main Logic Board And Components
C H A P T E R Servicing the Main Logic Board and Components This chapter describes how to remove and replace the system main logic board and its components, and how to set the flash PROM jumpers. For a list of part numbers for field-replaceable units (FRUs) and optional equipment, see “Illustrated Parts Breakdown”...
Page 70: How To Remove A Memory Module
1). You can have memory groups with different densities (for example, 128- Mbyte DIMMs in group 0, and 512-Mbyte DIMMs in group 1). Supported DIMM configuration options are 128, 256, 512, and 1024 Mbytes. See the Sun Fire 280R Server Owner’s Guide for more information.
Page 71 3. Grasp the top corners of the memory module and pull it up and out of its socket. Ejection lever 4. Place the module on an antistatic mat. 5. Repeat Step 1 through Step 4 for each memory module being removed. What Next To install a memory module, complete this task: “How to Install a Memory Module”...
Page 72: How To Install A Memory Module
128-Mbyte DIMMs installed in group 0, or four 128-Mbyte DIMMs installed in group 1). Supported DIMM configuration options are 128, 256, 512, and 1024 Mbytes. See the Sun Fire 280R Server Owner’s Guide for more information. Configuration Rules...
Page 73 The following figure shows the location of the memory slots, with group 0 highlighted. System side Memory group 0 Before You Begin Complete these tasks: “How to Power Off the System” on page 5 “How to Position the System for Service” on page 14 “How to Remove the System Cover”...
Page 74 Always wear a grounding strap when you handle the modules. What to Do 1. Remove the new memory module from its antistatic packaging. 2. Locate the socket into which you will install the module. Sun Fire 280R Server Service Manual • January 2001...
Page 75 3. Align the notches in the module connector with the notches in the slot, until the module contacts the socket evenly along the socket’s length. 4. Press down firmly on both corners of the module until the bottom edge is fully seated in the socket and the levers click into place.
Page 76: How To Remove The Rsc Card
To avoid personal injury or damage to the RSC card, you must disconnect the AC power cord(s) before servicing the RSC card. 1. Disconnect the AC power cord(s) from the back of the system. Sun Fire 280R Server Service Manual • January 2001...
Page 77 2. Locate the RSC card. The RSC card is installed in the fourth slot from the edge of the main logic board; it is labeled “RSC” on the back panel. RSC card 3. Disconnect any external cable(s) attached to the faceplate of the RSC card. Chapter 2 Servicing the Main Logic Board and Components...
Page 78 6. Press the release clip on the I C cable connector and remove the cable from the RSC card. 7. Drape the I C cable over the air guide and out of the way. Sun Fire 280R Server Service Manual • January 2001...
Page 79 8. Using a Phillips No. 2 screwdriver, remove the screw that secures the card to the chassis back panel. 9. Pull the RSC card from its slot. Caution – Do not apply excessive force to one end or one side of the board. Doing so could damage the card.
Page 80: How To Replace The Rsc Card
Caution – Before replacing the RSC card, be sure that the AC power cords have been disconnected from the back panel. Before You Begin Complete this task: “How to Remove the RSC Card” on page 50 Sun Fire 280R Server Service Manual • January 2001...
Page 81 What to Do 1. Locate the slot for the RSC card, the fourth slot from the edge of the main logic board. RSC slot Note – Make sure to install the RSC card in the RSC slot. Though the RSC card can physically fit in a PCI slot, it will not function if installed there.
Page 82 Push the card into the connectors on the main logic board. Apply even pressure along the edge of the card. 3. Secure the RSC card faceplate to the back panel with the Phillips screw. Sun Fire 280R Server Service Manual • January 2001...
Page 83 4. Connect the I C cable to the RSC card’s internal connector. Modem x-jack connector C connector a. Align the release clip on the I C cable connector with the tab on the top of the RSC card’s internal connector. b.
Page 84: How To Remove A Pci Card
1. Disconnect any external cable(s) attached to the faceplate of the PCI card. 2. Disconnect any cables connected to the PCI internal connectors. 3. Using a Phillips No. 2 screwdriver, remove the screw that secures the card to the chassis back panel. Sun Fire 280R Server Service Manual • January 2001...
Page 85 Caution – Do not apply excessive force to one end or one side of the card. Doing so could damage the card. 4. Pull the PCI card from its slot. Hold the card by the faceplate and its opposite edge, and pull up while rocking the card from end to end until it is freed from its slot.
Page 86 Replace the Phillips screw that secures the filler panel to the chassis back panel. PCI filler panel What Next To install a PCI card, complete this task: “How to Install a PCI Card” on page 61 Sun Fire 280R Server Service Manual • January 2001...
Page 87: How To Install A Pci Card
How to Install a PCI Card Before You Begin Complete these tasks: “How to Power Off the System” on page 5 “How to Position the System for Service” on page 14 “How to Remove the System Cover” on page 30 “How to Avoid Electrostatic Discharge”...
Page 88 Remove the Phillips screw that secures the PCI filler panel to the chassis back panel. b. Lift out the filler panel. PCI filler panel Sun Fire 280R Server Service Manual • January 2001...
Page 89 3. Insert the PCI card into the appropriate slot on the main logic board. There are four PCI slots on the main logic board. PCI slots a. Insert the faceplate end of the card into the appropriate opening in the back panel.
Page 90 4. Secure the PCI card faceplate to the back panel with the Phillips screw. 5. If necessary, connect any internal cables to the PCI card’s internal connectors. 6. If necessary, connect any external cables to the PCI card. Sun Fire 280R Server Service Manual • January 2001...
Page 91: How To Remove A Cpu Module
What Next To reassemble the system, complete this task: “How to Replace the System Cover” on page 33 When you are ready to restart the system, be sure to run OpenBoot Diagnostics tests to verify that the system functions correctly with the new parts you have just installed.
Page 92 2. Remove the torque screwdriver mounted to the inside of the chassis. Sun Fire 280R Server Service Manual • January 2001...
Page 93 3. Loosen the two captive torque screws on either side of the CPU module. Alternately unscrew each side one full turn until the screws are loose enough to turn with your fingers. 4. Continue loosening both screws with your fingers until you can lift the CPU module out of its bracket.
Page 94 CPU module is installed in CPU slot 0. The system will not boot without a CPU module in slot 0. 8. Mount the torque screwdriver into its holder inside the chassis. Sun Fire 280R Server Service Manual • January 2001...
Page 95: How To Install A Cpu Module
What Next To install a CPU module, complete this task: “How to Install a CPU Module” on page 69 How to Install a CPU Module Before You Begin Complete these tasks: “How to Power Off the System” on page 5 “How to Position the System for Service”...
Page 96 CPU slot 0, required CPU slot 1, optional For more information about CPU modules, see your Sun Enterprise Sun Fire 280R Server Owner’s Guide. What to Do 1. Locate the appropriate slot for the CPU module that you are installing into the CPU card cage on the main logic board.
Page 97 4. Remove the torque screwdriver mounted to the inside of the chassis. 5. Using the torque screwdriver, tighten the captive screws alternately one-half turn until the screws are tightened. The torque screwdriver will “pop” when you reach the correct torque setting on the CPU module mounting screws.
Page 98 If you undertighten the captive screws, you may cause a loss of continuity and the system may fail to start. Use the torque screwdriver supplied with the CPU module to tighten the screws the correct amount. Sun Fire 280R Server Service Manual • January 2001...
Page 99 6. Mount the torque screwdriver into its holder inside the chassis. What Next To reassemble the system, complete these tasks: “How to Replace the Air Guide” on page 81 “How to Replace the System Cover” on page 33 When you are ready to restart the system, be sure to run OpenBoot Diagnostics tests to verify that the system functions correctly with the new parts you have just installed.
Page 100: How To Remove The Id Seeprom Module
RSC software for diagnostic purposes and cannot be removed from the board. (For more information about using the RSC software, see the RSC documentation and the Sun Fire 280R Server Owner’s Guide.) The other SEEPROM contains the system host identification (ID) and Ethernet address, and is removable.
Page 101 2. Locate the ID SEEPROM module on the main logic board. The ID SEEPROM module is located between CPU slot 1 and PCI slot 4, toward the front of the main logic board. ID SEEPROM Chapter 2 Servicing the Main Logic Board and Components...
Page 102 4. Place the ID SEEPROM module on an antistatic mat. What Next To replace the ID SEEPROM module, complete this task: “How to Replace the ID SEEPROM Module” on page 77 Sun Fire 280R Server Service Manual • January 2001...
Page 103: How To Replace The Id Seeprom Module
How to Replace the ID SEEPROM Module Before You Begin Complete this task: “How to Avoid Electrostatic Discharge” on page 35 Note – If you are installing a new ID serially electrically erasable and programmable read-only memory (SEEPROM) module, it must be programmed by an authorized Sun service representative before your system can resume normal operation.
Page 104 To reassemble the system, complete these tasks: If you had to remove a PCI card from PCI slot 4, “How to Install a PCI Card” on page 61 “How to Replace the System Cover” on page 33 Sun Fire 280R Server Service Manual • January 2001...
Page 105: How To Remove The Air Guide
When you are ready to restart the system, be sure to run OpenBoot Diagnostics tests to verify that the system functions correctly with the new part you have just installed. For additional information, see: “About OpenBoot Diagnostics Tests” on page 166 If you changed the configuration of the system, perform a reconfiguration boot so that your system is able to recognize any new parts.
Page 106 3. Lift the air guide up from the CPU module cage and remove it from the system. What Next To replace the air guide, complete this task: “How to Replace the Air Guide” on page 81 Sun Fire 280R Server Service Manual • January 2001...
Page 107: How To Replace The Air Guide
How to Replace the Air Guide Before You Begin Complete this task: “How to Avoid Electrostatic Discharge” on page 35 What to Do 1. Position the air guide on the CPU module cage. Align the two tabs on the top of the air guide with the slots on the CPU card cage assembly.
Page 108: How To Remove The Main Logic Board
Caution – Perform this procedure on a workbench. Sun Microsystems does not support changing the main logic board while the system is installed in a rack.
Page 109 Caution – Do not remove components from the board after you have removed it from the chassis. Doing so can damage the main logic board. What to Do Note – You should already have removed the system from the rack and placed it on a workbench with all the power cords disconnected.
Page 110 You will need to make sure that the jumper settings on the new main logic board match the settings on the old main logic board. For more information, see “How to Set the Flash PROM Jumpers” on page 88. Sun Fire 280R Server Service Manual • January 2001...
Page 111: How To Replace The Main Logic Board
Caution – Perform this procedure on a workbench. Sun Microsystems does not support changing the main logic board while the system is installed in a rack.
Page 112 See “How to Set the Flash PROM Jumpers” on page 88. 3. Position the replacement main logic board in the chassis. Align the notches on the sides of the board with the corresponding tabs on the chassis. Sun Fire 280R Server Service Manual • January 2001...
Page 113 4. Slide the main logic board toward the back of the chassis. Ensure that each connector on the main logic board slides through the corresponding cutout in the chassis back panel. 5. Replace the three screws securing the main logic board to the chassis back panel. 6.
Page 114: How To Set The Flash Prom Jumpers
On the board, pin 1 is marked with an asterisk. 2. Set the main logic board jumpers J2103 and J2104. Using long-nose pliers, place a shunt over the appropriate pins according to the following table. Sun Fire 280R Server Service Manual • January 2001...
Page 115 Flash PROM A shunt on pins 1 and A shunt on pins 2 and The default shunt is Signal that is jumper 2 selects 3 selects on pins controlled J2103 Write-protect Write-enable 1 and 2 FLASH PROM PROG ENABLE J2104 Disable flash Enable flash 2 and 3...
Page 116 Sun Fire 280R Server Service Manual • January 2001...
Page 117: Removing And Installing Storage Devices
C H A P T E R Removing and Installing Storage Devices This chapter describes how to remove and install the system’s storage and removable media devices. For a list of part numbers for field-replaceable units (FRUs) and optional equipment, see “Illustrated Parts Breakdown” on page 217. The following tasks are covered in this chapter: “How to Remove a Disk Drive”...
Page 118: How To Remove A Disk Drive
“How to Remove a Disk Drive Using the Hot-Plug Operation” on page 97. Before You Begin For additional information on disk drives, see your Sun Fire 280R Server Owner’s Guide. Perform the following prerequisite task: “How to Avoid Electrostatic Discharge” on page 35 What to Do 1.
Page 119 4. Using your thumb and forefinger, pinch the disk drive latch sideways to release the drive handle. Pull the handle away from the drive until you feel the drive connector disengage from the backplane connector. Disk drive handle Disk drive latch 5.
Page 120: How To Install A Disk Drive
Hot-Plug Operation” on page 101. Before You Begin For additional information on internal disk drives and configuring disk drive arrays, see your Sun Fire 280R Server Owner’s Guide. You must follow antistatic precautions when handling a disk drive. Complete this task: “How to Avoid Electrostatic Discharge”...
Page 121 2. Unlock the front doors and swing them open. Turn the keyswitch to the Power-On/Off position. This unlocks the system front doors. 3. Release the drive handle on the disk drive. Use your thumb and forefinger to pinch the drive latch sideways to open it. 4.
Page 122 8. Press the handle toward the drive until the latch closes, securing the drive in place. 9. Repeat the procedure for the other drive (if necessary). If you have finished removing and installing disk drives, remove the antistatic strap. Sun Fire 280R Server Service Manual • January 2001...
Page 123: How To Remove A Disk Drive Using The Hot-Plug Operation
You may also have to reconfigure your application software to operate without the removed drive. Use the luxadm and the devfsadm software tools to remove the Sun Fire 280R server’s internal disk drive using the hot-plug operation. The following procedure describes the general steps involved, but your specific device names may be different.
Page 124 Obtain the logical device name(s) for the device(s) you plan to remove. See your Sun Fire 280R Server Owner’s Guide for more information. Select the disk and stop any activity or applications accessing the drive.
Page 125 2. Type the following luxadm command: Where <c1t1d0s2> is the logical device name for the drive. The system dialogue follows the command. # luxadm remove_device /dev/ rdsk/ <c1t1d0s2> WARNING!!! Please ensure that no file systems are mounted on these device( s). All data on these devices should have been backed up.
Page 126 Refer also to luxadm(1M) and to devfsadm(1M) man pages. What Next If you need to install a drive using a hot-plug operation, see: “How to Install a Disk Drive Using the Hot-Plug Operation” on page 101 Sun Fire 280R Server Service Manual • January 2001...
Page 127: How To Install A Disk Drive Using The Hot-Plug Operation
Solaris environment recognizes the drive. Finally you configure your application (if necessary) to operate with this new drive. Use the luxadm and the devfsadm software tools to hot-plug the Sun Fire 280R server’s internal disk drive. The following procedure describes the general steps involved, but your specific device names may be different.
Page 128 /dev/ rdsk/ c1t1d0s0 /dev/ rdsk/ c1t1d0s1 /dev/ rdsk/ c1t1d0s2 /dev/ rdsk/ c1t1d0s3 /dev/ rdsk/ c1t1d0s4 /dev/ rdsk/ c1t1d0s5 /dev/ rdsk/ c1t1d0s6 /dev/ rdsk/ c1t1d0s7 The system responds with the logical links present in the directory. Sun Fire 280R Server Service Manual • January 2001...
Page 129 6. Format the disk by entering the following command: # format Searching for disks... done The system responds with the disks available for formatting. 7. Type the number of the hot-plug drive you are formatting: AVAILABLE DISK SELECTIONS: 0. c1t0d0 <SUN18G cyl 7506 alt 2 hd 19 sec 248> /pci@ 8,600000/ SUNW, qlc@ 4/ fp@ 0,0/ ssd@w210000203760c2fe, 0 1.
Page 130: How To Remove The Removable Media Assembly
“How to Avoid Electrostatic Discharge” on page 35 What to Do 1. Disconnect the I/O power cable from the removable media power connector. See the illustration in Step 3 for the location of the RMA in the system. Sun Fire 280R Server Service Manual • January 2001...
Page 131 2. Disconnect the removable media SCSI cable from the removable media SCSI connector. I/O power cable SCSI cable Chapter 3 Removing and Installing Storage Devices...
Page 132 RMA cover 4. Loosen the two captive Phillips screws securing the RMA to the chassis. 5. Slide the RMA out of the chassis. 6. Place the assembly on an antistatic mat. Sun Fire 280R Server Service Manual • January 2001...
Page 133: How To Replace The Removable Media Assembly
What Next For information about removing drives from, or installing drives into the RMA, see: “How to Remove a DVD-ROM or Tape Drive” on page 110 “How to Install a DVD-ROM or Tape Drive” on page 111 To replace the removable media assembly, complete this task: “How to Replace the Removable Media Assembly”...
Page 134 3. If necessary, install one or more plastic filler panels into any empty drive bay openings in the RMA plastic cover. Align the filler panel with its opening and press it into place. Sun Fire 280R Server Service Manual • January 2001...
Page 135 4. Replace the RMA plastic cover. Align the two posts on the bottom of the cover with the corresponding holes at the front of the chassis, and align the tab on the top of the cover with its corresponding hole. Press down on the top of the center of the cover evenly until it snaps into place.
Page 136: How To Remove A Dvd-Rom Or Tape Drive
“How to Remove the Removable Media Assembly” on page 104 What to Do 1. Remove the four Phillips screws securing the drive to the removable media assembly (RMA). There are two screws on each side of the drive. Screws Sun Fire 280R Server Service Manual • January 2001...
Page 137: How To Install A Dvd-Rom Or Tape Drive
Tape Drive Before You Begin Know the configuration guidelines for installing removable media devices. For detailed information, see your Sun Fire 280R Server Owner’s Guide. Complete these tasks: “How to Power Off the System” on page 5 “How to Position the System for Service” on page 14 “How to Remove the System Cover”...
Page 138 You must also perform a reconfiguration boot so that your system is able to recognize any new device(s). For additional information, see: “How to Initiate a Reconfiguration Boot” on page 12 Sun Fire 280R Server Service Manual • January 2001...
Page 139: Removing And Replacing Backplanes And Cables
C H A P T E R Removing and Replacing Backplanes and Cables This chapter describes how to remove and replace backplanes and cables within the system. For a list of part numbers for field-replaceable units (FRUs) and optional equipment, see “Illustrated Parts Breakdown” on page 217. The following tasks are covered in this chapter: “How to Remove the FC-AL Backplane”...
Page 140 2. Disconnect the FC-AL data cable from the FC-AL backplane at J0102. Pull the cable out by its connector, not by the cable itself. 3. Disconnect the I C cable from the FC-AL backplane at J0103. Sun Fire 280R Server Service Manual • January 2001...
Page 141 4. Remove the two Phillips screws that secure the FC-AL backplane to the chassis. 5. Remove the backplane from the chassis. Place the backplane on an antistatic mat. What Next To replace the FC-AL backplane, complete this task: “How to Replace the FC-AL Backplane” on page 116 Chapter 4 Removing and Replacing Backplanes and Cables...
Page 142: How To Replace The Fc-Al Backplane
1. Position the FC-AL backplane in place behind the disk drive bay in the chassis. Insert the bottom tab on the backplane into the slot on the chassis. 2. Replace the two Phillips screws that secure the FC-AL backplane to the chassis. Sun Fire 280R Server Service Manual • January 2001...
Page 143 3. Connect the FC-AL data cable from the main logic board at J0102 on the FC-AL backplane. The connector is keyed to attach in only one way. J0103 J0102 J0101 4. Connect the I/O power cable at J0101 on the FC-AL backplane. The connector is keyed to attach in only one way.
Page 144: How To Remove The Power Distribution Board
How to Remove the Power Distribution Board Before You Begin Caution – Perform this procedure on a workbench. Sun Microsystems does not support changing the power distribution board while the system is installed in a rack. Complete these tasks: “How to Power Off the System” on page 5 “How to Remove the System From the Rack”...
Page 145 c. Disconnect the power interlock cable at J0209. d. Disconnect the I C cable at J0505. e. Disconnect the CPU power sense cable at J0205. f. Disconnect the keyswitch/Power button/LED cable at J0500. 2. Loosen the three captive Phillips screws that secure the power distribution board cover panel to the chassis.
Page 146 Sun Fire 280R Server Service Manual • January 2001...
Page 147 5. Remove the seven screws securing the power distribution board to the chassis. 6. Adjust the cable connected to the center AC power connector assembly so that it does not interfere with lifting the power distribution board out of the chassis. 7.
Page 148: How To Replace The Power Distribution Board
You may need to adjust the cable attached to the center AC power connector assembly so that it does not interfere with the positioning of the power distribution board. 2. Insert the power supply connectors into their slots in the chassis. Sun Fire 280R Server Service Manual • January 2001...
Page 149 3. Replace the seven Phillips screws that secure the board to the chassis. Chapter 4 Removing and Replacing Backplanes and Cables...
Page 150 Use a Phillips No. 2 screwdriver to secure the screws. Do not reverse the power connector assemblies; attach the left-hand connector to the left-hand power supply, and the right-hand connector to the right-hand power supply. Sun Fire 280R Server Service Manual • January 2001...
Page 151 5. Replace the power distribution board cover panel. a. Position the cover in place over the chassis. Hold the cover at an approximately 30-degree angle from the chassis, aligning the slots on the cover with the tabs on the main logic board mounting plate. b.
Page 152: About The System Cables
Procedures for removing and replacing cables not covered in this chapter are included within the removal and replacement process of the assemblies with which these cables are associated. In addition, this section provides illustrations depicting connector locations on the system boards. Sun Fire 280R Server Service Manual • January 2001...
Page 153: Cable Connectors And Routing
Cable Connectors and Routing Cable Name Connections Routing and Management CPU power sense cable From: Power distribution board (J0205) Routed from under the fan tray To: Main logic board (J3603) assembly to the main logic board Main power cable From: Power distribution board (J0201) Routed from under the fan tray To: Main logic board (J3601) assembly to the main logic board...
Page 154: Main Logic Board Connectors
Main Logic Board Connectors J3603 (CPU power sense) Back panel connectors J3601 (main power) J5002 (SCSI data) J3602 (power interlock) J2901 (FC-AL data) Sun Fire 280R Server Service Manual • January 2001...
Page 155 FC-AL Backplane Connectors J0103 J0102 (FC-AL data) J0101 (I/O power) Chapter 4 Removing and Replacing Backplanes and Cables...
Page 156: How To Connect The System Cables
“How to Power Off the System” on page 5 “How to Position the System for Service” on page 14 “How to Remove the System Cover” on page 30 “How to Avoid Electrostatic Discharge” on page 35 Sun Fire 280R Server Service Manual • January 2001...
Page 157: How To Remove The Fc-Al Cable
What to Do 1. Identify the cable that you want to install or replace. 2. Use the information in “About the System Cables” on page 126 to determine how each cable is routed. 3. Install the cable according to the routing and cable management instructions in the procedures described further in this chapter.
Page 158 Unplug the remaining cable end from J2901 on the main logic board. J2901 J0102 Fan tray clip 3. Slide the FC-AL cable out from under the clip on the side of the fan tray. Sun Fire 280R Server Service Manual • January 2001...
Page 159: How To Replace The Fc-Al Cable
What Next To replace the FC-AL cable, complete this task: “How to Replace the FC-AL Cable” on page 133 How to Replace the FC-AL Cable Before You Begin Complete these tasks: Read the section, “About the System Cables” on page 126 “How to Avoid Electrostatic Discharge”...
Page 160 J0102 Fan tray clip What Next To reassemble the system, complete these tasks: “How to Replace the RSC Card” on page 54 “How to Replace the System Cover” on page 33 Sun Fire 280R Server Service Manual • January 2001...
Page 161: How To Remove The I C Cable
How to Remove the I C Cable Before You Begin Complete these tasks: Read the section, “About the System Cables” on page 126 “How to Power Off the System” on page 5 “How to Position the System for Service” on page 14 “How to Remove the System Cover”...
Page 162 4. Disconnect the P3 connector from J0505 on the power distribution board. What Next To replace the I C cable, complete this task: “How to Replace the I C Cable” on page 137 Sun Fire 280R Server Service Manual • January 2001...
Page 163: How To Replace The I C Cable
How to Replace the I C Cable Before You Begin Complete these tasks: Read the section, “About the System Cables” on page 126 “How to Avoid Electrostatic Discharge” on page 35 What to Do 1. Connect the P3 connector to J0505 on the power distribution board. The connector is keyed to attach in only one way.
Page 164 What Next To reassemble the system, complete these tasks: “How to Replace the Fan Tray Assembly” on page 147 “How to Replace the System Cover” on page 33 Sun Fire 280R Server Service Manual • January 2001...
Page 165: Removing And Replacing Miscellaneous Assemblies
Before You Begin It is not necessary to power off the system if you are removing a redundant power supply. For more information, see “About Power Supplies” in your Sun Fire 280R Server Owner’s Guide. If your system has only one power supply, complete this task:...
Page 166 5. With your other hand, rotate the power supply handle so that it is perpendicular to the front face of the unit. Power supply handle Retaining clip 6. Pull out the power supply in a smooth motion until the unit is free of the bay. Sun Fire 280R Server Service Manual • January 2001...
Page 167 Caution – When removing a hot-pluggable power supply, do not disengage and reengage the supply in rapid succession. Caution – Never insert your hand into the power supply bay while the system is running or while it is connected to AC power. Doing so could result in serious personal injury.
Page 168: How To Install A Power Supply
How to Install a Power Supply Before You Begin If you are installing a redundant power supply, it is not necessary to power off the system. For more information, see “About Power Supplies” in your Sun Fire 280R Server Owner’s Guide. What to Do 1.
Page 169 5. Using your thumb, push up the retaining clip until there is enough clearance to slide the power supply into its bay. 6. With your other hand, align the new power supply with its bay. Note – If you are hot-swapping a power supply, wait until the system displays a console message confirming removal of the old power supply.
Page 170 For more information about the power supply LEDs, see: “About the Status and Control Panel” on page 2 If your system has only one power supply, complete this task: “How to Power On the System” on page 6 Sun Fire 280R Server Service Manual • January 2001...
Page 171: How To Remove The Fan Tray Assembly
How to Remove the Fan Tray Assembly Before You Begin Complete these tasks: Read the section, “About the System Cables” on page 126. “How to Power Off the System” on page 5 “How to Position the System for Service” on page 14 “How to Remove the System Cover”...
Page 172 4. Lift the fan tray assembly out of the chassis. What Next To replace the fan tray assembly, complete this task: “How to Replace the Fan Tray Assembly” on page 147 Sun Fire 280R Server Service Manual • January 2001...
Page 173: How To Replace The Fan Tray Assembly
How to Replace the Fan Tray Assembly Before You Begin Complete this task: “How to Avoid Electrostatic Discharge” on page 35 What to Do 1. Position the fan tray approximately 2 inches (5 centimeters) over its location in the chassis. 2.
Page 174 7. Connect the FC-AL cable connector to J0102 on the FC-AL backplane. Route the FC-AL cable under its clip on the fan tray assembly. Be careful not to damage the cable. Sun Fire 280R Server Service Manual • January 2001...
Page 175: How To Remove A System Door
What Next To reassemble the system, complete this task: “How to Replace the System Cover” on page 33 How to Remove a System Door Before You Begin Complete these tasks: “How to Power Off the System” on page 5 “How to Position the System for Service” on page 14 What to Do 1.
Page 176 Pull the decorative panel off the chassis flange. Decorative panel Chassis flange Washer Sun Fire 280R Server Service Manual • January 2001...
Page 177 3. Unscrew the hinge from the chassis flange and remove the system door. Use a Phillips No. 2 screwdriver. Door Chassis flange What Next To replace a door, complete this task: “How to Replace a System Door” on page 152 Chapter 5 Removing and Replacing Miscellaneous Assemblies...
Page 178: How To Replace A System Door
2. Replace the two hinge screws securing the hinge to the chassis flange. Use a Phillips No. 2 screwdriver. Door Chassis flange 3. Replace the decorative panel on the chassis flange. Sun Fire 280R Server Service Manual • January 2001...
Page 179 a. Press the decorative panel into place on the chassis flange. b. Replace the washers on the back of the decorative panel captive screws. Tighten the washers on the screws until the decorative panel is secure on the flange. Decorative panel Chassis flange Washer 4.
Page 180 Sun Fire 280R Server Service Manual • January 2001...
Page 181: Diagnostics, Monitoring, And Troubleshooting
C H A P T E R Diagnostics, Monitoring, and Troubleshooting The Sun Fire 280R server and its accompanying software contain many tools and features that help you: Monitor the status of a functioning system Isolate problems when there is a failure of a field-replaceable component Exercise the system to disclose an intermittent or incipient problem For step-by-step instructions, turn to the relevant section.
Page 182: About Communicating With The System
PCI slot, and attach a mouse, monitor, and keyboard to the appropriate back panel ports. See “How to Configure a Local Graphics Console” on page 39 for detailed instructions. Sun Fire 280R Server Service Manual • January 2001...
Page 183: About Diagnostic Tools
Note – If you lose access to the console, but have a local display and physical access to the server, you may gain access to the ok prompt using default NVRAM parameters. For more information, see “How to Use Default NVRAM Parameters” on page 175.
Page 184 SunVTS software and Sun Management Center software to monitor or exercise the system. The following chart provides an overview of which tools to use to diagnose hardware problems locally. Sun Fire 280R Server Service Manual • January 2001...
Page 185 System boots Firmware OS Software Run POST Fault LED lit Run SunVTS POST failure Run Sun Run OpenBoot Management Diagnostics Center Replace part Diagnostic Disk failure failure? Software or Software disk problem problem Chapter 6 Diagnostics, Monitoring, and Troubleshooting...
Page 186: About Using Diagnostic Tools To Monitor, Diagnose, And Exercise The System
The RSC card runs independently, and uses standby power from the server. Therefore, RSC firmware and software continue to be effective when the server operating system goes offline, and can send notification of hardware failures or other Sun Fire 280R Server Service Manual • January 2001...
Page 187 The RSC card also includes a backup battery that supplies approximately 30 minutes of power to the RSC card in case of a complete system power failure. RSC lets you monitor the following on your Sun Fire 280R server. Item Monitored What RSC Reveals...
Page 188 Run POST Fault LED lit Run SunVTS POST failure Run Sun Run OpenBoot Management Diagnostics Center Replace part Diagnostic Disk failure failure? Local Server Software or Software disk problem problem Sun Fire 280R Server Service Manual • January 2001...
Page 189 Software User’s Guide. About Isolating Failed Components The Sun Fire 280R server includes a collection of software and firmware tools that let you quickly determine what FRU needs to be replaced in a malfunctioning system. About Isolating Failures Using Sun Remote System Control...
Page 190 A. For information about running POST, see “How to Isolate Failures Using Power-On Self-Test (POST)” on page 176. For information about RSC, see your Sun Fire 280R Server Owner’s Guide. About Isolating Failures Using OpenBoot Diagnostics OpenBoot Diagnostics is a set of diagnostic self-tests that reside in flash PROM on the main logic board.
Page 191 10 minutes. Using RSC to set the boot mode is similar to using L1-N key combinations on non-USB Sun keyboards (the Sun Fire 280R server uses a USB keyboard). See the Sun Remote System Control (RSC) User’s Guide for information about the bootmode and rscadm bootmode commands.
Page 192: The Test Command
OpenBoot PROM test command at the ok prompt, followed by the device alias or device path name. For example: ok test net Testing network Sun Fire 280R Server Service Manual • January 2001...
Page 193 The following table describes what each self-test does. Test Function Tests the registers in the boot bus controller, and then verifies that at least one processor has boot bus access. Accesses the Ebus through the RIO port and then tests DMA ebus controller functionality.
Page 194 Note – The OpenBoot PROM configuration variables test-args and diag-level affect the behavior of OpenBoot Diagnostics. Set diag-level to max for maximum coverage. Enter help at the obdiag> prompt for more information on the use of test-args. Sun Fire 280R Server Service Manual • January 2001...
Page 195: Error Messages
: FLASHPROM CRC-32 is incorrect SUMMARY: Obs=0x4374a5be Exp=0xffffffff XOR=0xbc8b5a41 Addr=0xfefffffc DEVICE : /pci@8,700000/ebus@5/flashprom@0,0 SUBTEST: selftest CALLERS: (f00aeeb4) MACHINE: Sun Fire 280R (2 X UltraSPARC-III) SERIAL#: 12134113 DATE : 10/31/2000 19:13:39 Selftest at /pci@8,700000/ebus@5/flashprom@0,0 (return:1,errors:1) ... failed Hit any key to return to the main menu...
Page 196 ‘.’ is a Good Packet. ‘X’ is a Bad Packet. Type any key to stop......... {0} ok watch-net-all /pci@8,700000/network@5,1 gme register test --- succeeded. Internal loopback test -- succeeded. Link is -- Using Onboard Transceiver - Link Up Up. Sun Fire 280R Server Service Manual • January 2001...
Page 197: About Exercising The System
Using Onboard Transceiver - Link Up. Looking for Ethernet Packets. ‘.’ is a Good Packet. ‘X’ is a Bad Packet. Type any key to stop. The probe-scsi and probe-scsi-all Commands The OpenBoot PROM commands probe-scsi and probe-scsi-all report information about SCSI devices on the server that are active and connected. To run either command, type it at the ok prompt.
Page 198: How To Monitor The System
How to Monitor the System Before you can monitor your Sun Fire 280R server, you must install and configure one of the monitoring tools provided by Sun. These tools include: Sun Remote System Control (RSC) software, which is available on the Solaris Supplement CD and on the Web at http://www.sun.com/servers/rsc.html...
Page 199: User Interface
How to Monitor the System Using Sun Remote System Control (RSC) You can use RSC to monitor a system remotely. Before You Begin Install the RSC software server and client packages. They are part of the default Solaris installation on the Solaris Supplement CD, and are also available for download on the Web at http://www.sun.com/servers/rsc.html.
Page 200 Monitor your server remotely from any location in the network Isolate potential problems or failed components Sun Management Center software is supported on the Sun Fire 280R server. To download the current Sun Management Center software packages, and to obtain information about the software documentation, go to the Web site www.sun.com/software/sunmanagementcenter.
Page 201: How To Isolate Failed Components
How to Isolate Failed Components The following sections describe how to isolate failed components using RSC, POST, OpenBoot Diagnostics, and how to use a second Sun server to diagnose problems. How to Use Default NVRAM Parameters During the boot process, if you lose access to the system console due to a failed nonvolatile random access memory (NVRAM) configuration change, use the Safe NVRAM mode to regain access to the console.
Page 202 Before You Begin You can set up your server to display POST and diagnostics output in the system console or in the RSC console, but not on both at the same time. Sun Fire 280R Server Service Manual • January 2001...
Page 203 RSC account. After this redirection, the local system console is not available. For more information about redirecting a console after the RSC software is installed, see your Sun Fire 280R Server Owner’s Guide. You can choose to run an abbreviated POST with concise error and status reporting or run an extensive POST with more detailed messages.
Page 204 “How to Configure a Local Graphics Console” on page 39 “How to Set Up a tip Connection” on page 180 Also, see: “About Isolating Failures Using OpenBoot Diagnostics” on page 164 Sun Fire 280R Server Service Manual • January 2001...
Page 205 What to Do 1. Press the Break key on your alphanumeric terminal’s keyboard, or enter the Stop-a sequence on a Sun keyboard. The ok prompt is displayed. 2. Reset the system by typing the reset-all command: ok reset-all 3. Set the diag-level configuration variable. Two different levels are available for testing.
Page 206: How To Set Up A Tip Connection
If you are running a version of the Solaris Operating Environment previous to 2.0, type: hardwire:\ :dv=/dev/ttyb:br#9600:el=^C^S^Q^U^D:ie=%$:oe=^D: If you are running version 2.0 or later of the Solaris Operating Environment, type: hardwire:\ :dv=/dev/term/b:br#9600:el=^C^S^Q^U^D:ie=%$:oe=^D: Sun Fire 280R Server Service Manual • January 2001...
Page 207 3. In a Shell Tool window on the Sun server, type: hostname% tip hardwire connected The Shell Tool window is now a tip window directed to the Sun server ttyb port. Note – Use a Shell Tool, not a Command Tool; some tip commands may not work properly in a Command Tool window.
Page 208 To ensure that you are at the start of a new line, press Return first. How to Verify the Baud Rate To verify the baud rate between the Sun Fire 280R server and a terminal or another Sun system monitor: 1. Open a terminal window.
Page 209: How To Configure A Local Graphics Console
/dev/ttyb is inaccessible. Sometimes, a program will have changed the protection of /dev/ttyb (or the serial port you are using) so that it is no longer accessible. Make sure that /dev/ttyb has the mode set to crw-rw-rw-. The serial line is in tandem mode. If the tip connection is in tandem mode, the operating system sometimes sends XON (^S) characters (particularly when programs in other windows are generating lots of output).
Page 210: Network Communications Failure
This is not a problem for 100BASE-TX networks, where the test is enabled by default. Refer to the documentation provided with your Ethernet hub for more information about the link integrity test function. Sun Fire 280R Server Service Manual • January 2001...
Page 211 1. Use the test command to test the network device, type: ok test net 2. If you connect the system to a network and the network does not respond, use the OpenBoot PROM command watch-net-all to display conditions for all network connections, type: ok watch-net-all For most PCI Ethernet cards, the link integrity test function can be enabled or...
Page 212 4. Reboot the system to make the changes effective. Power-On Failure Symptom The system attempts to power on but does not boot or initialize the terminal or monitor. Sun Fire 280R Server Service Manual • January 2001...
Page 213: Video Output Failure
If you see no front panel LED activity, a power supply may be defective. See your Sun Fire 280R Server Owner’s Guide for more information. If the POST output contains an error message, then POST has failed. The most probable cause for this type of failure is the main logic board.
Page 214 If the device responds and a message is displayed, the system FC-AL controller has successfully probed the internal drive. This indicates that the main logic board is operating correctly. Sun Fire 280R Server Service Manual • January 2001...
Page 215 2. Use the test command to get more information, type: ok test /SUNW,qlc 3. Take one of the following actions depending on what the probe-scsi command reports: a. If one drive does not respond to the FC-AL controller probe but the others do, replace the unresponsive drive.
Page 216 A DVD drive or externally connected SCSI drive read error or parity error is reported by the operating system or a software application. Action 1. Run the test command, type: ok test scsi 2. Replace the drive indicated by the failure message. Sun Fire 280R Server Service Manual • January 2001...
Page 217 Symptom DVD or external SCSI drive fails to boot or is not responding to commands. Action Test the response of the drive(s) to the probe-scsi-all command as follows: 1. At the system ok prompt, type: ok reset-all ok probe-scsi-all 2. Use the test command to gather more information, type: ok test scsi If the system has more than one SCSI disk, you must specify an address.
Page 218: Scsi Controller Failure
If there is a problem with a power supply, the system fault indicator lights on the front panel. If you have more than one power supply, then you can use the LEDs located on the power supplies themselves to identify the faulty supply. The power Sun Fire 280R Server Service Manual • January 2001...
Page 219 LEDs will indicate any problem with the AC input or DC output. See your Sun Fire 280R Server Owner’s Guide for more information about the LEDs. To replace a power supply, see the following sections: “How to Remove a Power Supply” on page 139 “How to Install a Power Supply”...
Page 220: How To Exercise The System
If SunVTS software is loaded, information about the package will be displayed. If SunVTS software is not loaded, you will see an error message: ERROR: information for "SUNWvts" was not found Sun Fire 280R Server Service Manual • January 2001...
Page 221 What to Do You can run SunVTS locally or remotely. The following procedure assumes you will test your Sun Fire 280R server by running a SunVTS session from a remote machine using the SunVTS graphical interface. For information about SunVTS interfaces and options, see the SunVTS User’s Guide.
Page 222 5. Fine-tune your testing session by selecting only the tests you want to run. Click to select and deselect tests. (A check mark in the box means the item is selected.) Some tests useful to run on a Sun Fire 280R server are listed below. SunVTS Test...
Page 223 What Next If SunVTS tests indicate an impaired or defective part, replace the part. For information about replacing the part, see the appropriate section in this service manual. Chapter 6 Diagnostics, Monitoring, and Troubleshooting...
Page 224 Sun Fire 280R Server Service Manual • January 2001...
Page 225: Connector Signal Descriptions
A P P E N D I X Connector Signal Descriptions This appendix describes the Sun Fire 280R server main logic board connector signals and pin assignments that are accessible from the back panel. The following topics are covered in this appendix: “Reference for the Serial Port A and B Connectors”...
Page 226: Serial Port Signals
Serial Port Signals Signal Description Not connected SER_TDX_A_CONN Transmit Data SER_RXD_A_CONN Receive Data SER_RTS_A_L_CONN Ready To Send SER_CTS_A_L_CONN Clear To Send SER_DSR_A_L_CONN Data Set Ready Signal Ground SER_DCD_A_L-CONN Data Carrier Detect Sun Fire 280R Server Service Manual • January 2001...
Page 227 Signal Description Not connected Not connected Not connected Not connected Not connected Not connected SER_TRXC_A_L_CONN Transmit Clock Not connected SER_RXC_A_L_CONN Receive Clock Not connected Not connected SER_DTR_A_L_CONN Data Terminal Ready Not connected Not connected Not connected SER_TXC_A_L_CONN Terminal Clock Not connected Appendix A Connector Signal Descriptions...
Page 228: Tpe Connector Diagram
TPE Connector Signals Signal Name Description Common mode termination Termination Common mode termination Termination Transmit Data + +5VDC +5 VDC Transmit Data - Receive Data + Receive Data - Common mode termination Termination Sun Fire 280R Server Service Manual • January 2001...
Page 229 TPE Cable-Type Connectivity You can connect the following types of TPE cables to the TPE connector. For 10BASE-T applications, unshielded twisted-pair (UTP) cable: Category 3 (UTP-3, voice grade) Category 4 (UTP-4) Category 5 (UTP-5, data grade) For 100BASE-T applications, UTP cable: Category 5 (UTP-5, data grade) External UTP-5 Cable Lengths The following list describes the TPE UTP-5 cable applications and maximum lengths.
Page 230: Reference For The Ultrascsi Connector
UltraSCSI Connector Diagram UltraSCSI Connector Signals Signal Name Description Ground Ground Not connected Ground Ground Ground Ground Ground Ground Ground Ground Ground Ground Ground Ground Sun Fire 280R Server Service Manual • January 2001...
Page 231 Signal Name Description Ground TERMPOWER Termpower TERMPOWER Termpower Not connected Ground Ground Ground Ground Ground Ground Ground Ground Ground Ground Ground Ground Ground Ground Ground SCSI_B_DAT<12> Data 12 SCSI_B_DAT<13>_ Data 13 SCSI_B_DAT<14>_ Data 14 SCSI_B_DAT<15>_ Data 15 SCSI_B_PAR<l> Parity 1 SCSI_B_DAT<0>_ Data 0 SCSI_B_DAT<1>_...
Page 232 Terminal B Power TERMPOWER_B Terminal B Power Not connected Ground SCSI_B_ATN_L Attention Ground SCSI_B-BSY_L Busy SCSI_B_ACK_L Acknowledge SCSI_B_RESET_L Reset SCSI_B_MSG_L Message SCSI_B_SEL_L Select SCSI_B-CD_L Command SCSI_B_REQ_L Request SCSI_B_IO_L In/out SCSI_B_DAT<8> Data 8 Sun Fire 280R Server Service Manual • January 2001...
Page 233 Signal Name Description SCSI_B_DAT<9> Data 9 SCSI_B_DAT<10> Data 10 SCSI_B_DAT<11> Data 11 Note – _L signifies active low. Appendix A Connector Signal Descriptions...
Page 234: Reference For The Parallel Port Connector
PP_DAT[0..7]_CON Data 0 Through Data 7 PAR_ACK_L_CONN Acknowledge Low PAR_BUSY_CONN Busy PAR_PE_CONN Parity Error PAR_SELECT_L_CO Select Low PAR_AFXN_L_CON Auto Feed Low PAR_ERROR_L_CO Error Low PAR_INIT_L_CONN Initialize Low PAR_IN_L_CONN Peripheral Input Low Sun Fire 280R Server Service Manual • January 2001...
Page 235 Signal Description Ground Ground Ground Ground Ground Ground Ground Ground Appendix A Connector Signal Descriptions...
Page 236 FC-AL Port Connector Diagram FC-AL Connector Pin Assignments Signal Description T_CM_FC_TX_EX_P TX + Ground T_CM_FC_TX_EX_N TX - 4, 5 Not connected FC_RX_EX_N RX + Ground FC_RX_EX_P RX - Sun Fire 280R Server Service Manual • January 2001...
Page 237 Reference for the Universal Serial Bus (USB) Connectors Four Universal Serial Bus (USB) connectors (J3001, 3002) are located on the main logic board back panel. The port pin assignments are identical. USB Port Connector Diagram J3001 J3002 USB Connector Pin Assignments Signal Name Description Signal Name...
Page 238 Sun Fire 280R Server Service Manual • January 2001...
Page 239: System Specifications
A P P E N D I X System Specifications This appendix provides the following product specifications for the Sun Fire 280R server: “Reference for Physical Specifications” on page 213 “Reference for Electrical Specifications” on page 213 “Reference for Environmental Specifications” on page 215...
Page 240 2. Combined output power of the +3.3 VDC and +5 VDC outputs must not exceed 480 Watts. 3. Combined output power of the +3.3 VDC and +5 VDC outputs must not exceed 480 Watts. Sun Fire 280R Server Service Manual • January 2001...
Page 241: Specifications
Reference for Environmental Specifications These specifications are for a rackmounted system. Parameter Value Operating Temperature 5˚C to 40˚C (41˚F to 104˚F)—IEC 60068-2-1, 60068-2-2 Humidity 20% to 80% RH (noncondensing); 27 ˚C max wet bulb—IEC 60068-2-56 Altitude 0 to 3000 meters (0 to 10,000 feet)—IEC 60068-2-13 Vibration 0.002 g /Hz, flat from 5–500 Hz (0.31 GRMS);...
Page 242 Sun Fire 280R Server Service Manual • January 2001...
Page 243: Illustrated Parts Breakdown
Part numbers are also provided. Part Numbers The following items for the Sun Fire 280R server can be replaced at the customer site by a qualified service provider. The part numbers listed in the following table are correct as of the service manual publication date but are subject to change without notice.
Page 244 12-24 GB 4mm DDS4 Tape Drive 390-0028 10x DVD/CD-ROM Drive 390-0025 Miscellaneous Assemblies Fan Tray Assembly 540-4434 Power Supply 300-1457 PCI Filler Panel Not a FRU RMA Filler Panel (Plastic) Not a FRU Sun Fire 280R Server Service Manual • January 2001...
Page 245 Category Part Part Number Panels and Doors Front Door - Left 540-4186 Front Door - Right 540-4230 RMA Cover (Plastic) 540-4219 250-1317 Rails 340-5883 Back Panel 540-4365 Internal Cables CPU Power Sense Cable 530-2941 Main Power Cable 530-2822 I/O Power Cable 530-2864 FC-AL Data Cable 530-3019...
Page 246 System Components Reference Number Part Part Number Main Logic Board Components See next illustration Fan Tray Assembly 540-4434 Power Distribution Board Cover Not a FRU Power Distribution Board 501-5775 FC-AL Backplane 501-5699 Sun Fire 280R Server Service Manual • January 2001...
Page 247 Appendix C Illustrated Parts Breakdown...
Page 248 Not a FRU 128 MB DIMM 501-4489 Not Shown 256 MB DIMM 501-5401 Not Shown 512 MB DIMM 501-5030 Not Shown 1 GB DIMM 501-5031 Not Shown CPU Filler Panel Not a FRU Sun Fire 280R Server Service Manual • January 2001...
Page 249 Appendix C Illustrated Parts Breakdown...
Page 250 RMA Filler Panel (Plastic) Not a FRU RMA Cover 530-2824 10X DVD/CD-ROM Drive 390-0025 RMA Cage Assembly Not a FRU Front Door - Right 540-4230 Power Supply Filler Panel Not a FRU Sun Fire 280R Server Service Manual • January 2001...
Page 251 Appendix C Illustrated Parts Breakdown...
Page 252 Sun Fire 280R Server Service Manual • January 2001...

Sun Microsystems Sun Fire 280R Service Manual

Regulatory Compliance Statements

Declaration of Conformity

Safety Agency Compliance Statements

Preface

1 Preparing to Service the System

2 Servicing the Main Logic Board and Components

3 Removing and Installing Storage Devices

4 Removing and Replacing Backplanes and Cables

5 Removing and Replacing Miscellaneous Assemblies

6 Diagnostics, Monitoring, and Troubleshooting

Connector Signal Descriptions

System Specifications

Illustrated Parts Breakdown

Quick Links

Need help?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Sun Microsystems Sun Fire 280R

Summary of Contents for Sun Microsystems Sun Fire 280R

Table of Contents
