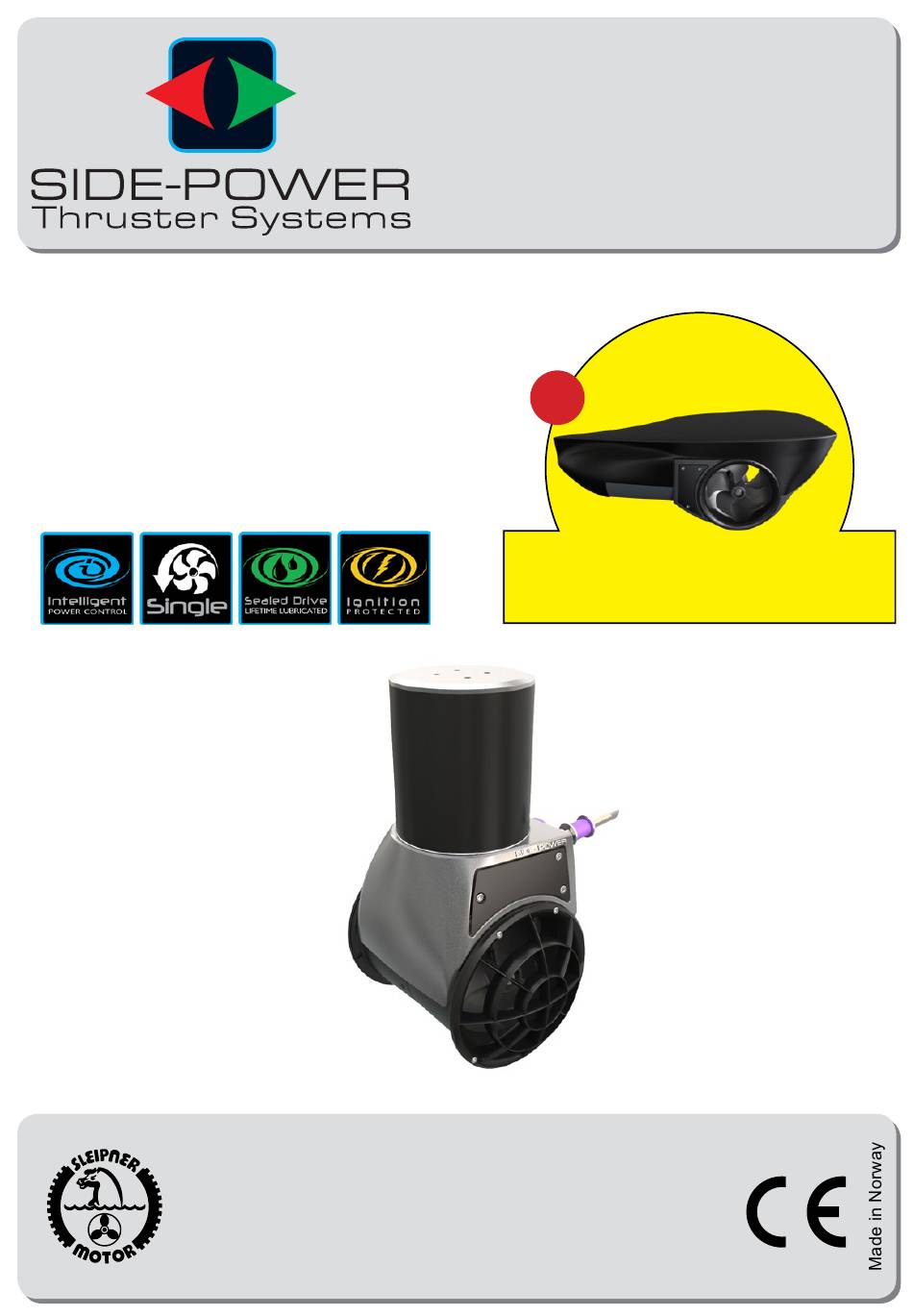

Installation Manual
P.O. Box 519
N-1612 Fredrikstad
Norway
www.side-power.com
SX-Hydro pod
NEW
For installing SX thruster with the
Hydro-pod modification please use the
SX-Hydro pod installation guide.
Document id:
5630
Revision:
5
Date:
2019
SX
- 35/140
- 50/140
© Sleipner Motor AS 2019

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Side-Power SX-35/140 and is the answer not in the manual?

Questions and answers

Summary of Contents for SLEIPNER MOTOR AS Side-Power SX-35/140

  • Page 1 Installation Manual SX-Hydro pod For installing SX thruster with the Hydro-pod modification please use the SX-Hydro pod installation guide. SLEIPNER MOTOR AS P.O. Box 519 N-1612 Fredrikstad Norway Document id: 5630 www.side-power.com Revision: Date: 2019 © Sleipner Motor AS 2019...
  • Page 2: Table Of Contents

    Spare Parts ................21 Warranty statement .............. 21 DECLARATION OF CONFORMITY MC_0020 Sleipner Motor AS P.O. Box 519, Arne Svendsensgt. 6-8 N-1612 Fredrikstad, Norway Declare that this product with accompanying standard control systems complies with the essential health and safety requirements according to:...
  • Page 3: Bow Installation Considerations And Precautions

    (NB: These instructions are only general instruction. If you are not skilled to do this work, please contact professional installers for assistance.) All electrical work must be done by a licensed professional. IMPORTANT Faulty installation of the tunnel, thruster or panel will render all warranty given by Sleipner Motor AS void. MC_0038 Installation Considerations and Precautions MC_0071 •...
  • Page 4: Thruster Measurements

    374 mm 14,72” 171 mm 104 mm 183 mm 6,73” 4,09” 7,20” 50 mm 1,97” 18 mm 35,80 mm 0,71” 1,41” 65 mm 2,56” 130 mm 5,12” MG_0110 SX35 & SX50 5630 2019...
  • Page 5: Thruster Specifications

    Thruster Specifi cations MC_0149 description * 35 * 50 Available DC System (v) Thrust 12v or 24v (kg * lbs) 43 kg * 94 lbs 62 kg * 136 lbs Thrust 10.5v or 21v (kg * lbs) 35 kg * 77 lbs 50 kg * 110 lbs Typical Boat Size (m * ft) 6m - 10m * 19ft - 32ft...
  • Page 6: Control Box Technical Specifications

    187 mm 7’36” 170 mm 6’69” 121 mm 4’76” MG_0132 Control Box Technical Specifi cations MC_0082 SX35 SX50 Operation volts: 12v. Max Current: 250A 380A Duty Cycle: Max ambient temp: 50ºc 50ºc Min ambient temp: -25ºc -25ºc Power supply cable: 35 - 70mm²/ AWG 2 - 00 35 - 70mm²/ AWG 2 - 00 Mount direction :...
  • Page 7: Positioning The Stern Truster

    Engine Engine Water line Water line     The thruster can be installed in multiple locations based on object obstructions on the stern. Thruster assembly does not disturb the water flow under the hull. Water flow Engine  Thruster tunnel is clear Steering Arm from obstruction.
  • Page 8: Stern Thruster Cowls/ Grids

    Cowl water flow redirection Shallow installation Composite material with smooth inner walls for optimal water flow and strength Radiused corners prevent turbulence A standard Sidepower stern thruster tunnel with add-on cowls for shallow installation An angled edge further preventing air attraction into the tunnel cowls to change the water flow direction to...
  • Page 9: Positioning Of The Sx With Hydrodynamical Cover

    STERN MG_0162 Positioning of the SX with Hydrodynamical Cover MC_0072 Aim to install the thruster as far forward/ Aft as possible Due to the leverage eff ect around the boats’ pivot point. The relative distance diff erence from the boat pivots’ point to the thruster will determine the amount of real thrust for the boats, rotation.
  • Page 10: Thruster Installation Considerations And Precautions

    Thruster Installation Considerations and Precautions MC_0005 Before installation, it is important that the installer reads this guide to ensure necessary acquaintance with this product. • The electromotor must be handled with care. Do not lift it by internal connections/ main terminals or placed down on the driveshaft. •...
  • Page 11: Grids Or Cowls Assembly

    Detail #1 ed by Date 06/02/2019 Sheet Size MG_0145 Grids or Cowls assembly MC_0074 1. Install the cowls or grids before mounting the new tunnel to the thruster. (NB: Remember the tunnel can not be removed without being destroyed.) 2. Drill 4 holes in the mould marking on the tunnel. 3.
  • Page 12: Tunnel Installation

    Align two ends of the tunnel. Ensure top lips tabs into the motor inserts. Push two tunnel ends together. Check snap lock positions around the tunnel. MG_0112 Tunnel Installation MC_0074 ! Please refer to the graphic for special considerations relating to your model ! Ensure grids or cowls are installed if in use.
  • Page 13: Motor Installation

    130 mm 1 - 3 4 - 5 5,12” Hole size for hull Bolt and Washer 18 mm 35,80 mm 0,71” 1,41” 50 mm 65 mm 1,97” 2,56” +15% compression Maximum hull thickness is 50 mm Hull thickness Drill holes in hull Sealant (MS Polymer) Cover the entire surface...
  • Page 14: Control Box Installation

    BAT. + # SX35 CONTROL BOX 5, 6 Nm Hose claps BAT. - 5, 6 Nm MOTOR CABLE - 6 1232i MOTOR CABLE + TORQUE 8Nm BAT. + 5, 6 Nm # SX50 CONTROL BOX BAT. - 5, 6 Nm MOTOR CABLE - Control Box hose clamp...
  • Page 15: Thruster Electrical Installation

    Tighten to To control panel(s)/remote. # SX35 CONTROL BOX 5, 6 NM 4,13 lb/ft CONTROLLER Tighten to Tighten to Automatic MAIN 5 NM 5 NM SWITCH 3,69 lb/ft 3,69 lb/ft BLUE HOSE (BLUE HOSE) (900mm/ 35”) Tighten to # SX50 CONTROL BOX 5, 6 NM MAIN FUSE 4,13 lb/ft...
  • Page 16: Electrical Specifications

    Electrical Specifi cations MC_0077 SX35 & SX50 5630 2019...
  • Page 17: Control Panel Cable Installation

    Thuster Motor Ext. cable Y cable 4- or 5-lead 4- or 5-lead Ext. cable 4- or 5-lead * 4 OR 5 LEAD EXTENSION CABLES Manual Main switch Automatic Main switch Thuster * 5 LEAD EXTENSION Motor CABLES Y cable Ext. cable 5-lead 5-lead Ext.
  • Page 18: Visual Wiring Diagram

    Visual Wiring Diagram CONTROLLER CONNECTIONS: <<B+>>: Power supply pos from thruster battery/ Main switch/ Main fuse <<B->>: Power supply neg from thruster battery 2 Motor cables from thruster 4 wires from thruster overtemp switch 2 Control cables from control panel(s)/ remote To control panel(s)/remote.
  • Page 19: Control Panel Installation

    CONTROL PANEL TEMPLATES For control panels 8950 / 8960 61,1mm For control panels 8950 / 8960 Cut out area: Ø 51,8 mm / 2" Cut out area: Ø 51,8 mm / 2" Ø52 This way Up! Ø 3,0 mm / 0,12" Ø...
  • Page 20: Checklist For Dc And Ip Thrusters

    Checklist for SX Thrusters MC_0081 ..Propeller is fastened correctly to the shaft... Propeller turns freely in tunnel... Primer and anti-fouling have been applied to the gearhouse and propeller but NOT on the anode or the gearhouse lid where the propeller is fastened...
  • Page 21: Spare Parts

    Warranty statement MC_0024 1. The equipment manufactured by Sleipner Motor AS (The “Warrantor”) is warranted to be free from defects in workmanship and materials under normal use and service. 2. This Warranty is in eff ect for of two years (Leisure Use) or one year (Commercial use) from the date of purchase by the user. Proof of purchase must be included, to establish that it is inside the warranty period.
  • Page 22 Notes MC_0037 ..............................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................SX35 & SX50 5630 2019...
  • Page 23 Notes MC_0037 ..............................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................SX35 & SX50 5630 2019...
  • Page 24: Sleipner Motor As

    Norway The information given in the document was correct at the time it was published. However, Sleipner Motor AS can not accept liability for any inaccuracies or omissions it may contain. Continuous product improvement may change the product specifi cations without notice. Therefore, Sleipner Motor AS can not accept liability for any possi- ble differences between product and document.

This manual is also suitable for:

Side-power sx-50/140
