Harman BLU-Si Settings Manual

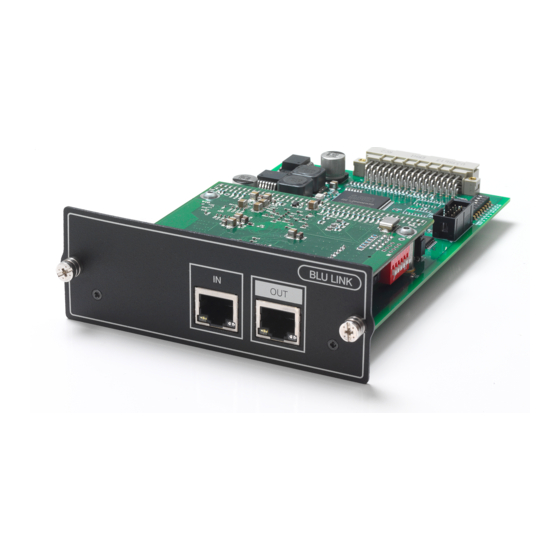

BLU-Si Card For Si Compact, Expression & Performer

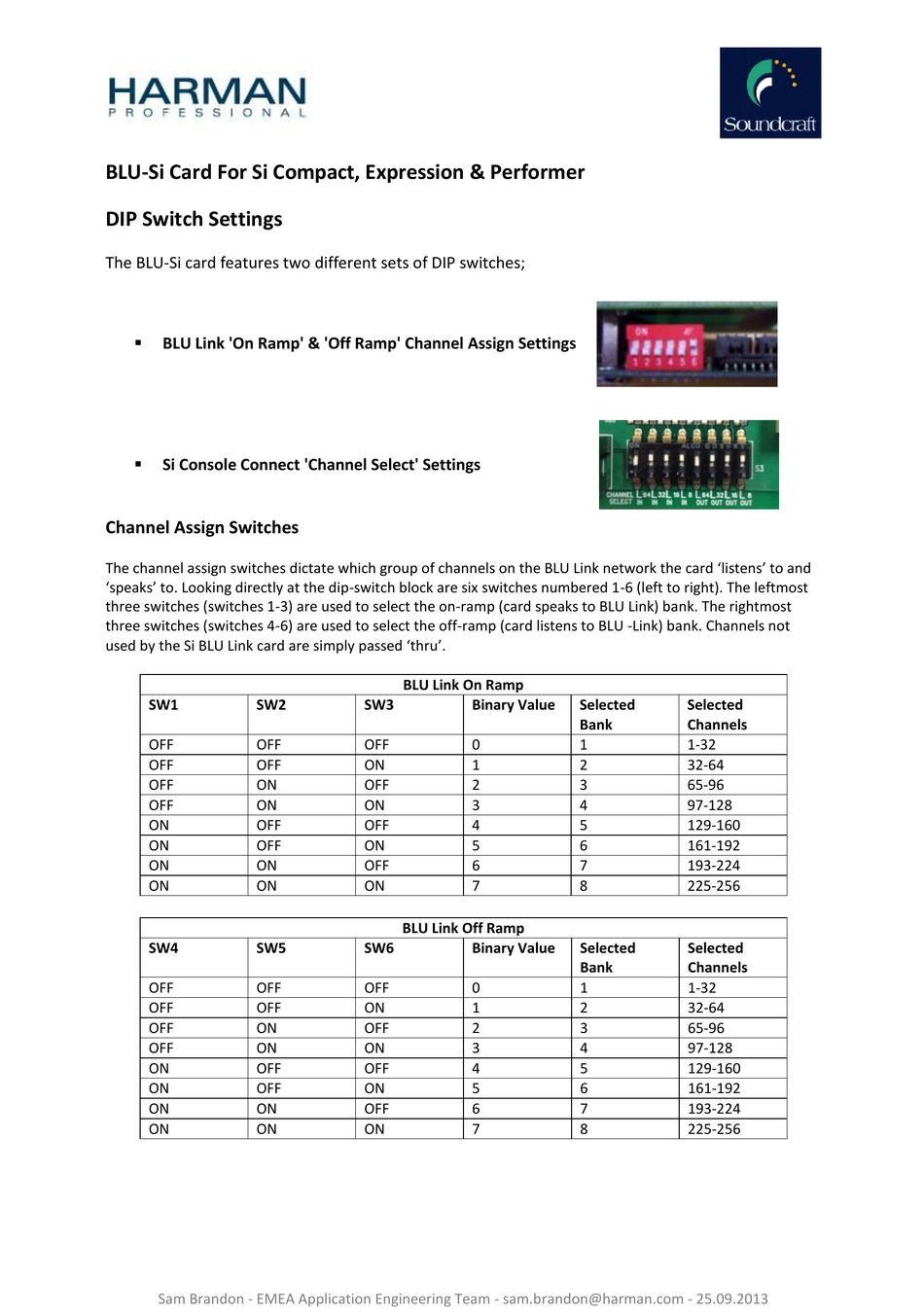

DIP Switch Settings

The BLU-Si card features two different sets of DIP switches;

BLU Link 'On Ramp' & 'Off Ramp' Channel Assign Settings

Si Console Connect 'Channel Select' Settings

Channel Assign Switches

The channel assign switches dictate which group of channels on the BLU Link network the card 'listens' to and
'speaks' to. Looking directly at the dip-switch block are six switches numbered 1-6 (left to right). The leftmost
three switches (switches 1-3) are used to select the on-ramp (card speaks to BLU Link) bank. The rightmost
three switches (switches 4-6) are used to select the off-ramp (card listens to BLU -Link) bank. Channels not
used by the Si BLU Link card are simply passed 'thru'.
SW1 SW2
OFF OFF
OFF OFF
OFF ON
OFF ON
ON OFF
ON OFF
ON ON
ON ON
SW4 SW5
OFF OFF
OFF OFF
OFF ON
OFF ON
ON OFF
ON OFF
ON ON
ON ON
Sam Brandon - EMEA Application Engineering Team - sam.brandon@harman.com - 25.09.2013

BLU Link On Ramp

SW3 Binary Value
OFF 0
ON 1
OFF 2
ON 3
OFF 4
ON 5
OFF 6
ON 7

BLU Link Off Ramp

SW6 Binary Value
OFF 0
ON 1
OFF 2
ON 3
OFF 4
ON 5
OFF 6
ON 7
Selected Selected
Bank Channels
1 1-32
2 32-64
3 65-96
4 97-128
5 129-160
6 161-192
7 193-224
8 225-256
Selected Selected
Bank Channels
1 1-32
2 32-64
3 65-96
4 97-128
5 129-160
6 161-192
7 193-224
8 225-256
